Power Distribution Switches, Load Drivers
Products in this family are solid-state devices used to connect or interrupt the flow of current to a supported load, under the direction of a logic-level control signal that is of itself incapable or unsuitable for supplying the load. They integrate the semiconductor switching device used to interrupt current flow and incorporate additional supporting components/functions such as over-voltage clamping, current limiting, and under-voltage lockouts, which differentiate them from similar IC and discrete components.
Sourcing Phoenix Passive Components / Vishay Power Distribution Switches, Load Drivers: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 91
| Product | Pricing | Datasheet | Switch Type | Current - Output (Max) | Fault Protection | Number of Outputs | Output Configuration | Rds On (Typ) | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Features | Input Type | Interface | Mounting Type | Operating Temperature | Output Type | Ratio - Input:Output | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SIP32431DR3-T1GE3 Phoenix Passive Components / Vishay | 1 $0.6900 | General Purpose | 1.2A | Reverse Current | 1 | High Side | 147mOhm | 1.5V ~ 5.5V | Not Required | Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 85°C (TA) | P-Channel | 1:1 | 6-TSSOP, SC-88, SOT-363 | SC-70-6 | 9,510 | |
 SIP32402ADNP-T1GE4 Phoenix Passive Components / Vishay | 1 $0.6900 | General Purpose | 2.4A | Reverse Current | 1 | High Side | 62mOhm | 1.1V ~ 5.5V | Not Required | Load Discharge, Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 125°C (TJ) | N-Channel | 1:1 | 4-UFDFN Exposed Pad | 4-TDFN (1.2x1.6) | 6,756 | |
SIP32401ADNP-T1GE4 Phoenix Passive Components / Vishay | 1 $0.6900 | General Purpose | 2.4A | Reverse Current | 1 | High Side | 62mOhm | 1.1V ~ 5.5V | Not Required | Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 125°C (TJ) | N-Channel | 1:1 | 4-UFDFN Exposed Pad | 4-TDFN (1.2x1.6) | 4,248 | |

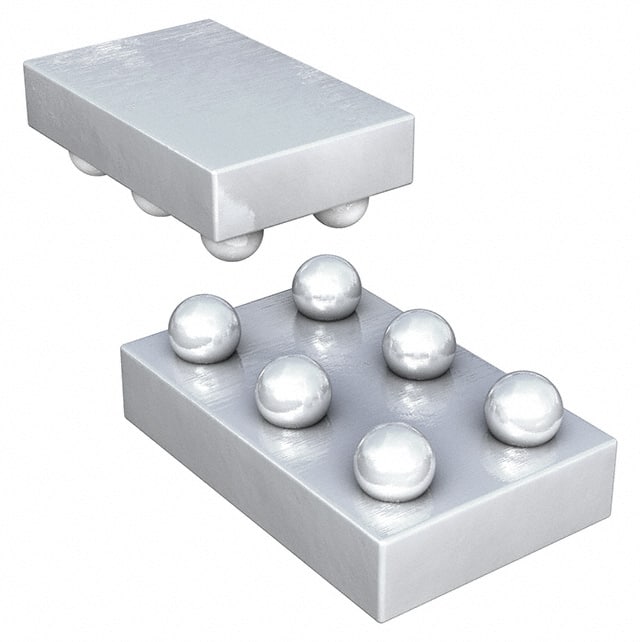

 SIP32458DB-T2-GE1 Phoenix Passive Components / Vishay | 1 $0.9100 | General Purpose | 3A | Reverse Current | 1 | High Side | 20mOhm | 1.5V ~ 5.5V | Not Required | Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 125°C (TJ) | P-Channel | 1:1 | 6-UFBGA, CSPBGA | 6-WLCSP (1.46x0.96) | 2,078 | |
SIP32411DR-T1-GE3 Phoenix Passive Components / Vishay | 1 $0.9600 | General Purpose | 2A | Reverse Current | 1 | High Side | 101mOhm | 1.1V ~ 5.5V | Not Required | Load Discharge, Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 85°C (TA) | N-Channel | 1:1 | 6-TSSOP, SC-88, SOT-363 | SC-70-6 | 8,902 | |
 SIP32102DB-T1-GE1 Phoenix Passive Components / Vishay | 1 $1.4100 | General Purpose | 7A | - | 1 | High Side | 6.5mOhm | 2.3V ~ 5.5V | Not Required | Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 85°C (TA) | P-Channel | 1:1 | 12-UFBGA, WLCSP | 12-WCSP (1.71x1.31) | 7,887 | |
SI1869DH-T1-E3 Phoenix Passive Components / Vishay | 1 $9.6717 100 $7.7374 500 $6.4478 | General Purpose | 1.2A | - | 1 | High Side | 132mOhm | 1.8V ~ 20V | - | Slew Rate Controlled | - | On/Off | Surface Mount | -55°C ~ 150°C (TJ) | P-Channel | 1:1 | 6-TSSOP, SC-88, SOT-363 | SC-70-6 | 496 | |
SIP32459DB-T2-GE1 Phoenix Passive Components / Vishay | 1 $1.2900 | General Purpose | 3A | - | 1 | High Side | 20mOhm | 1.5V ~ 5.5V | Not Required | Load Discharge, Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 125°C (TJ) | P-Channel | 1:1 | 6-UFBGA, CSPBGA | 6-WLCSP (1.46x0.96) | 6,295 | |
 SI3865DDV-T1-GE3 Phoenix Passive Components / Vishay | 1 $0.5800 | General Purpose | 2.8A | - | 1 | High Side | 45mOhm | 1.5V ~ 12V | - | Slew Rate Controlled | - | On/Off | Surface Mount | -55°C ~ 150°C (TJ) | P-Channel | 1:1 | SOT-23-6 Thin, TSOT-23-6 | 6-TSOP | 5,758 | |
SIP32101DB-T1-GE1 Phoenix Passive Components / Vishay | 1 $1.4100 | General Purpose | 5A | - | 1 | High Side | 6.5mOhm | 2.3V ~ 5.5V | Not Required | Slew Rate Controlled | - | On/Off | Surface Mount | -40°C ~ 85°C (TA) | P-Channel | 1:1 | 12-UFBGA, WLCSP | 12-WCSP (1.71x1.31) | 4,490 | |
 SIP32419DN-T1-GE4 Phoenix Passive Components / Vishay | 1 $25.7144 100 $20.5715 500 $17.1429 | General Purpose | 3.5A | Current Limiting (Adjustable), Over Temperature, UVLO | 1 | High Side | 56mOhm | 6V ~ 28V | Not Required | Power Good, Slew Rate Controlled, Status Flag | Non-Inverting | On/Off | Surface Mount | -40°C ~ 85°C (TA) | P-Channel | 1:1 | 10-VFDFN Exposed Pad | 10-DFN (3x3) | 40 | |
SIP32429DN-T1-GE4 Phoenix Passive Components / Vishay | 1 $10.0962 100 $8.0770 500 $6.7308 | General Purpose | 3.5A | Current Limiting (Fixed), Over Temperature, UVLO | 1 | High Side | 56mOhm | 6V ~ 28V | Not Required | Slew Rate Controlled, Status Flag | Non-Inverting | On/Off | Surface Mount | -40°C ~ 85°C (TA) | P-Channel | 1:1 | 10-VFDFN Exposed Pad | 10-DFN (3x3) | 2,500 | |
 SIP4282DVP-3-T1-E3 Phoenix Passive Components / Vishay | 1 $0.2467 | General Purpose | 1.4A | - | 1 | High Side | 105mOhm | 1.8V ~ 5.5V | Not Required | Load Discharge, Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 125°C (TJ) | P-Channel | 1:1 | PowerPAK® SC-75-6L | PowerPAK® SC-75-6L | 3,837 | |
SIP32441DNP-T1-GE4 Phoenix Passive Components / Vishay | 1 $0.2657 | General Purpose | 3A | Reverse Current, UVLO | 1 | High Side | 38mOhm | 1.7V ~ 5.5V | Not Required | Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 85°C (TA) | N-Channel | 1:1 | 4-UFDFN Exposed Pad | 4-TDFN (1.2x1.6) | 6,511 | |

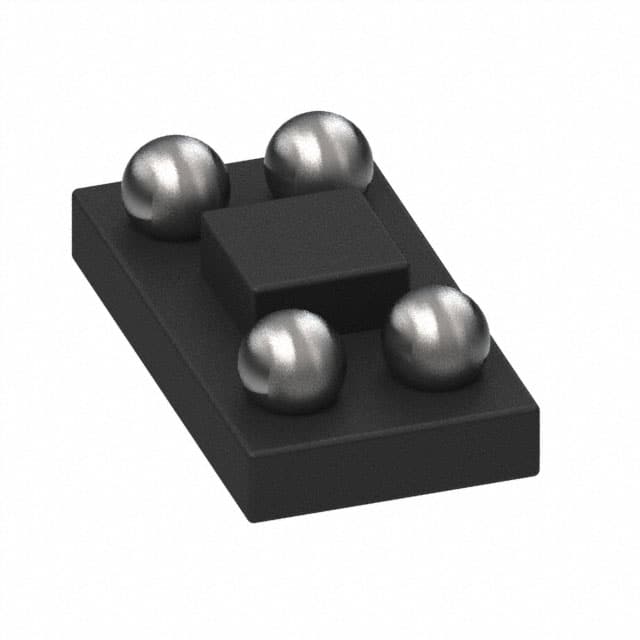

 SIP32460DB-T2-GE1 Phoenix Passive Components / Vishay | 1 $0.2657 | General Purpose | 1.2A | Reverse Current | 1 | High Side | 50mOhm | 1.2V ~ 5.5V | Not Required | Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 85°C (TA) | N-Channel | 1:1 | 4-UFBGA, CSPBGA | 4-WCSP (0.76x0.76) | 3,944 | |
SIP32501DNP-T1-GE4 Phoenix Passive Components / Vishay | 1 $0.2657 | General Purpose | 1.2A | Reverse Current | 1 | High Side | 66mOhm | 0.9V ~ 2.5V | Not Required | Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 85°C (TA) | N-Channel | 1:1 | 4-UFDFN Exposed Pad | 4-TDFN (1.2x1.6) | 8,189 | |
SIP32452DB-T2-GE1 Phoenix Passive Components / Vishay | 1 $0.2846 | General Purpose | 1.2A | Reverse Current | 1 | High Side | 54mOhm | 0.9V ~ 2.5V | Not Required | - | Non-Inverting | On/Off | Surface Mount | -40°C ~ 125°C (TJ) | N-Channel | 1:1 | 4-UFBGA, CSPBGA | 4-WCSP (0.76x0.76) | 9,949 | |
SIP32453DB-T2-GE1 Phoenix Passive Components / Vishay | 1 $0.2846 | General Purpose | 1.2A | Reverse Current | 1 | High Side | 54mOhm | 0.9V ~ 2.5V | Not Required | - | Non-Inverting | On/Off | Surface Mount | -40°C ~ 125°C (TJ) | N-Channel | 1:1 | 4-UFBGA, CSPBGA | 4-WCSP (0.76x0.76) | 7,974 | |
SIP4282ADNP2-T1GE4 Phoenix Passive Components / Vishay | General Purpose | 1.4A | - | 1 | High Side | 350mOhm | 1.5V ~ 5.5V | Not Required | Load Discharge, Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 125°C (TJ) | P-Channel | 1:1 | 4-UFDFN Exposed Pad | 4-TDFN (1.2x1.6) | 2,803 | ||
SIP4282ADVP2-T1GE3 Phoenix Passive Components / Vishay | General Purpose | 1.4A | - | 1 | High Side | 350mOhm | 1.5V ~ 5.5V | Not Required | Load Discharge, Slew Rate Controlled | Non-Inverting | On/Off | Surface Mount | -40°C ~ 125°C (TJ) | P-Channel | 1:1 | PowerPAK® SC-75-6L | PowerPAK® SC-75-6L | 3,416 |
