Analog Switches, Multiplexers, Demultiplexers
Products in this family are used for interconnecting or routing analog signals between multiple available signal paths. Functioning similar to a traditional electromechanical switch, their solid-state character facilitates electronic control, longer service life, and reduced switching noise compared to electromechanical switching, in trade for added constraints on the amplitude and bias of the signals being switched.
Sourcing ams Analog Switches, Multiplexers, Demultiplexers: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 33
| Product | Pricing | Datasheet | Channel-to-Channel Matching (ΔRon) | Switch Time (Ton, Toff) (Max) | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | -3db Bandwidth | Multiplexer/Demultiplexer Circuit | On-State Resistance (Max) | Switch Circuit | Voltage - Supply, Dual (V±) | Voltage - Supply, Single (V+) | Mounting Type | Number of Circuits | Operating Temperature | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

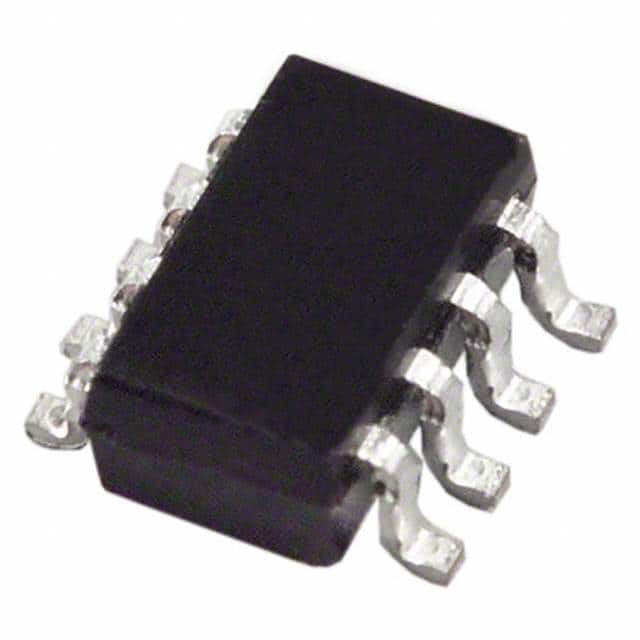

 AS1743H-T-Z ams | 20mOhm | 22ns, 14ns | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | 130MHz | 1:1 | 800mOhm | SPST - NO/NC | 1.6V ~ 3.6V | 1.6V ~ 3.6V | Surface Mount | 2 | -40°C ~ 85°C (TA) | SOT-23-8 | SOT-23-8 | 6,423 | ||
 AS1753S-T-Z ams | 30mOhm | 22ns, 14ns | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | - | 1:1 | 900mOhm | SPST - NO/NC | 1.6V ~ 3.6V | 1.6V ~ 3.6V | Surface Mount | 4 | -40°C ~ 85°C (TA) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP | 3,592 | ||
AS1741H-T-Z ams | 20mOhm | 22ns, 14ns | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | 130MHz | 1:1 | 800mOhm | SPST - NO | 1.6V ~ 3.6V | 1.6V ~ 3.6V | Surface Mount | 2 | -40°C ~ 85°C (TA) | SOT-23-8 | SOT-23-8 | 6,693 | ||
AS1751S-T-Z ams | 30mOhm | 22ns, 14ns | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | - | 1:1 | 900mOhm | SPST - NO | 1.6V ~ 3.6V | 1.6V ~ 3.6V | Surface Mount | 4 | -40°C ~ 85°C (TA) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP | 3,688 | ||
AS1752S-T-Z ams | 30mOhm | 22ns, 14ns | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | - | 1:1 | 900mOhm | SPST - NC | 1.6V ~ 3.6V | 1.6V ~ 3.6V | Surface Mount | 4 | -40°C ~ 85°C (TA) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP | 6,359 | ||
 AS1743G-T-Z ams | 20mOhm | 22ns, 14ns | 17pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | 130MHz | 1:1 | 800mOhm | SPST - NO/NC | 1.6V ~ 3.6V | 1.6V ~ 3.6V | Surface Mount | 2 | -40°C ~ 85°C (TA) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-MSOP | 6,090 | ||
AS1741G-T ams | 20mOhm | 22ns, 14ns | 6pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | 130MHz | 1:1 | 800mOhm | SPST - NO | - | 1.6V ~ 3.6V | Surface Mount | 2 | -40°C ~ 85°C (TA) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-MSOP | 6,299 | ||
AS1742G-T ams | 20mOhm | 22ns, 14ns | 6pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | 130MHz | 1:1 | 800mOhm | SPST - NC | - | 1.6V ~ 3.6V | Surface Mount | 2 | -40°C ~ 85°C (TA) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-MSOP | 4,410 | ||
AS1743G-T ams | 20mOhm | 22ns, 14ns | 6pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | 130MHz | 1:1 | 800mOhm | SPST - NO/NC | - | 1.6V ~ 3.6V | Surface Mount | 2 | -40°C ~ 85°C (TA) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-MSOP | 2,155 | ||
 AS1744G-T ams | 100mOhm | 17ns, 6ns | 7pC | 20pF | 100pA | -90dB @ 1MHz | - | 2:1 | 4Ohm | SPDT | - | 1.8V ~ 5.5V | Surface Mount | 2 | -40°C ~ 85°C (TA) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-MSOP | 5,546 | ||
AS1745G-T-Z MSOP10 LF T&R ams | 100mOhm | 17ns, 6ns | 7pC | 20pF | 100pA | -90dB @ 1MHz | - | 2:1 | 4Ohm | SPDT | - | 1.8V ~ 5.5V | Surface Mount | 2 | -40°C ~ 85°C (TA) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-MSOP | 2,266 | ||
 AS1747-BTDT-1K ams | 30mOhm | 400ns, 200ns | 2pC | 63pF | 10nA | -90dB @ 100kHz | 31MHz | 2:1 | 850mOhm | SPDT | - | 1.8V ~ 5.5V | Surface Mount | 2 | -40°C ~ 85°C (TA) | 10-WFDFN Exposed Pad | 10-TDFN (3x3) | 5,335 | ||
AS1746-BTDT ams | 20mOhm | 50ns, 30ns | 200pC | 84pF, 37pF | 10nA | -60dB @ 100kHz | - | 2:1 | 550mOhm | SPDT | - | 1.8V ~ 5.5V | Surface Mount | 2 | -40°C ~ 85°C (TA) | 10-WFDFN Exposed Pad | 10-TDFN (3x3) | 2,267 | ||
AS1743H-T ams | 20mOhm | 22ns, 14ns | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | 130MHz | 1:1 | 800mOhm | SPST - NO/NC | - | 1.6V ~ 3.6V | Surface Mount | 2 | -40°C ~ 85°C (TA) | SOT-23-8 | SOT-23-8 | 3,332 | ||
AS1742H-T ams | 20mOhm | 22ns, 14ns | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | 130MHz | 1:1 | 800mOhm | SPST - NC | - | 1.6V ~ 3.6V | Surface Mount | 2 | -40°C ~ 85°C (TA) | SOT-23-8 | SOT-23-8 | 8,860 | ||
AS1741H-T ams | 20mOhm | 22ns, 14ns | 5pC | 35pF, 35pF | 1nA | -100dB @ 1MHz | 130MHz | 1:1 | 800mOhm | SPST - NO | - | 1.6V ~ 3.6V | Surface Mount | 2 | -40°C ~ 85°C (TA) | SOT-23-8 | SOT-23-8 | 6,304 | ||
 AS1751V-T ams | 30mOhm | 22ns, 14ns | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | - | 1:1 | 900mOhm | SPST - NO | - | 1.6V ~ 3.6V | Surface Mount | 4 | -40°C ~ 85°C (TA) | 16-WFQFN Exposed Pad | 16-TQFN (3x3) | 2,167 | ||
AS1752V-T ams | 30mOhm | 22ns, 14ns | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | - | 1:1 | 900mOhm | SPST - NC | - | 1.6V ~ 3.6V | Surface Mount | 4 | -40°C ~ 85°C (TA) | 16-WFQFN Exposed Pad | 16-TQFN (3x3) | 6,525 | ||
AS1753V-T ams | 30mOhm | 22ns, 14ns | 2pC | 45pF, 45pF | 2.5nA | -80dB @ 1MHz | - | 1:1 | 900mOhm | SPST - NO/NC | - | 1.6V ~ 3.6V | Surface Mount | 4 | -40°C ~ 85°C (TA) | 16-WFQFN Exposed Pad | 16-TQFN (3x3) | 7,123 | ||
AS1744G-T-1K ams | 100mOhm | 17ns, 6ns | 7pC | 20pF | 100pA | -90dB @ 1MHz | - | 2:1 | 4Ohm | SPDT | - | 1.8V ~ 5.5V | Surface Mount | 2 | -40°C ~ 85°C (TA) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-MSOP | 3,589 |
