Optical Sensors - Reflective - Analog Output
Products in the analog output reflective optical sensor family incorporate an optical emitter and light sensitive element (typically a phototransistor) mounted adjacent to each other and facing the same direction, such that light from the emitter that is reflected by an object in the sensor's field of view can be detected by the sensing element within the device. Analog output sensors of this type deliver the signal produced by the photosensor directly with minimal processing, requiring the user to provide their own interpretive mechanism to determine object detection.
Sourcing onsemi Optical Sensors - Reflective - Analog Output: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 4
| Product | Pricing | Datasheet | Mounting Type | Sensing Distance | Sensing Method | Current - Collector (Ic) (Max) | Current - DC Forward (If) (Max) | Output Type | Package / Case | Response Time | Voltage - Collector Emitter Breakdown (Max) | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 QRE1113 onsemi | 1 $1.4500 | Through Hole | 0.039" (1mm) | Reflective | 20 mA | 50 mA | Phototransistor | 4-DIP (0.157", 4.00mm) | 20µs, 20µs | 30 V | 3,389 | |

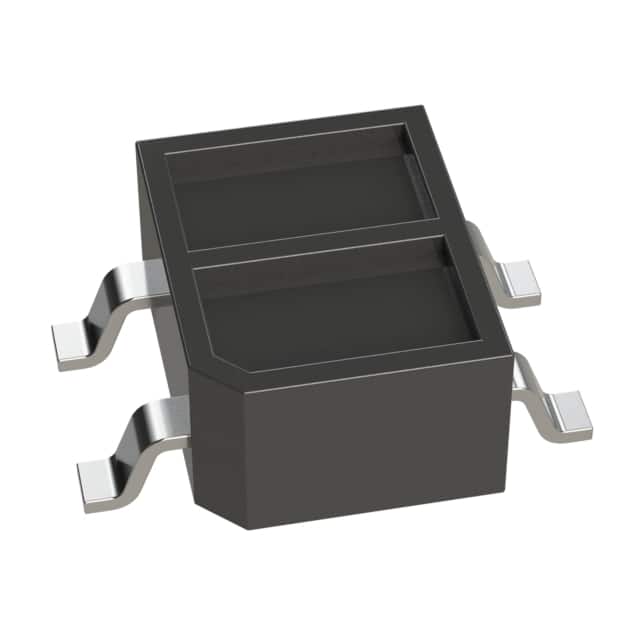

 QRE1113GR onsemi | 1 $1.1800 | Surface Mount | 0.039" (1mm) | Reflective | 20 mA | 50 mA | Phototransistor | 4-SMD, Gull Wing | 20µs, 20µs | 30 V | 5,244 | |

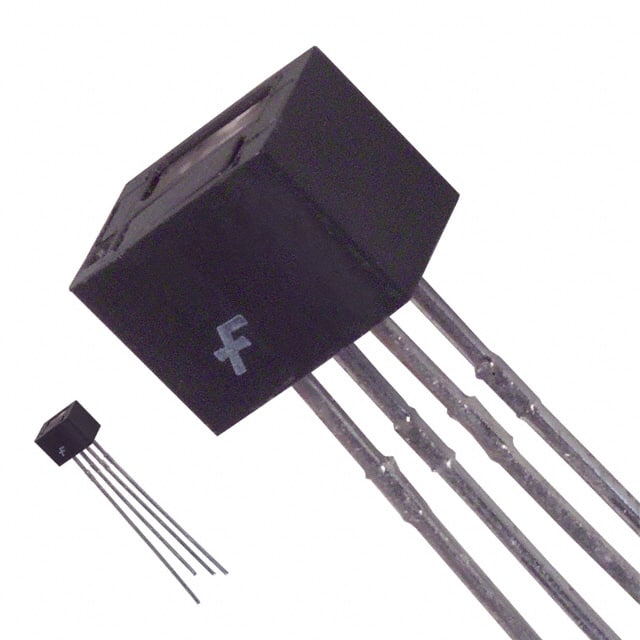

 QRD1114 onsemi | 1 $4.9847 100 $3.9877 500 $3.3231 | Through Hole | 0.050" (1.27mm) | Reflective | - | 50 mA | Phototransistor | Radial - 4 Leads | 10µs, 50µs | 30 V | 1,000 | |

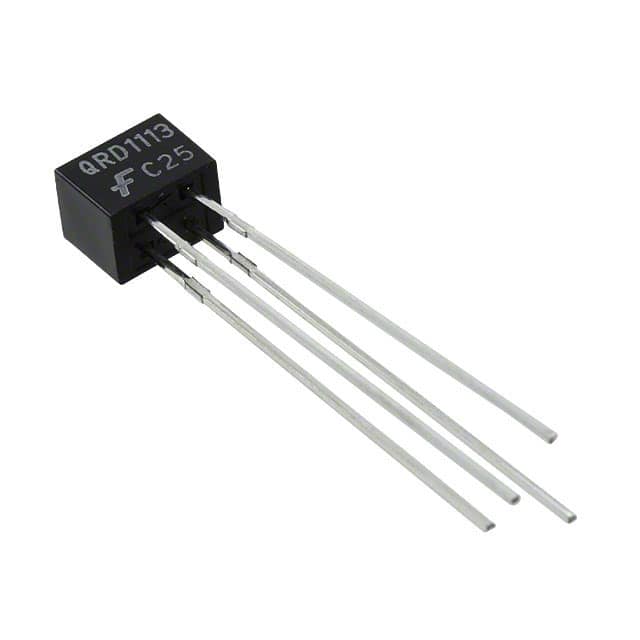

 QRD1113 onsemi | 1 $1.8600 | Through Hole | 0.050" (1.27mm) | Reflective | - | 50 mA | Phototransistor | Radial - 4 Leads | 10µs, 50µs | 30 V | 1,674 |
