Automotive Relays
Automotive electromechanical relays are a specialized class designed to operate in temperature extremes, high vibration locations, and have gas and chemical ingress protection. Features may include built-in diodes or resistors, hermetic seals, flux protection or added dust and water ingress protection. Coil types are single or double latching or non latching DPST, SPDT, and SPST contact forms.
Sourcing TE Connectivity AMP Connectors Automotive Relays: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 4
| Product | Pricing | Datasheet | Features | Mounting Type | Operating Temperature | Coil Current | Coil Type | Coil Voltage | Contact Form | Contact Rating (Current) | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Switching Voltage | Termination Style | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

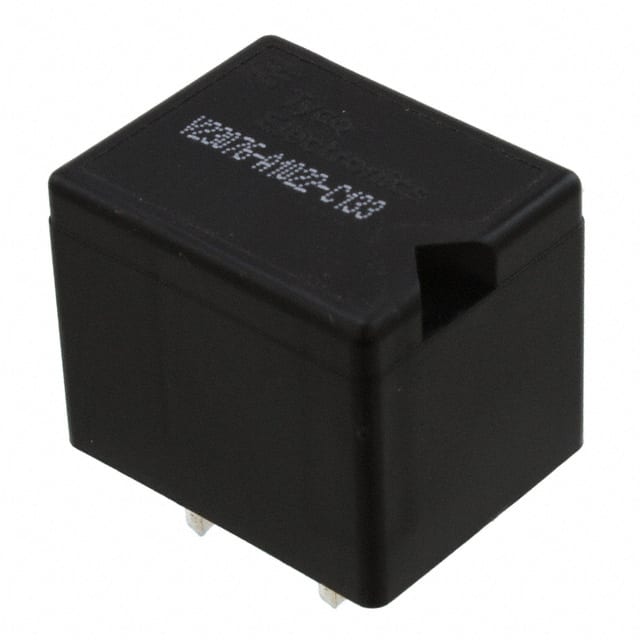

 1-1393277-4 TE Connectivity AMP Connectors | 1 $5.3300 | Sealed - Fully | Through Hole | -40°C ~ 85°C | 133 mA | Non Latching | 12VDC | SPST-NO (1 Form A) | 45 A | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | 12VDC - Nom | PC Pin | 2,291 | |

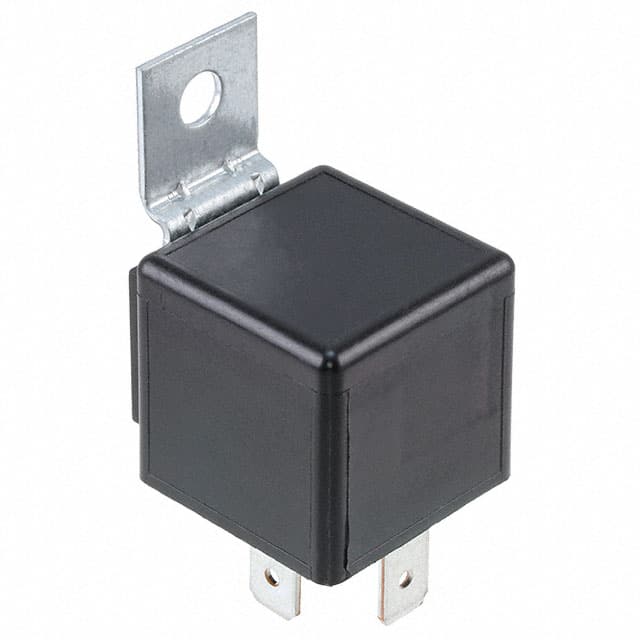

 3-1393303-7 TE Connectivity AMP Connectors | 1 $14.1500 | - | Chassis Mount | -40°C ~ 125°C | - | Non Latching | 24VDC | SPST-NO (1 Form A) | 60 A | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | 24VDC - Nom | Plug In, Quick Connect - 0.250" (6.3mm) | 9,890 | |

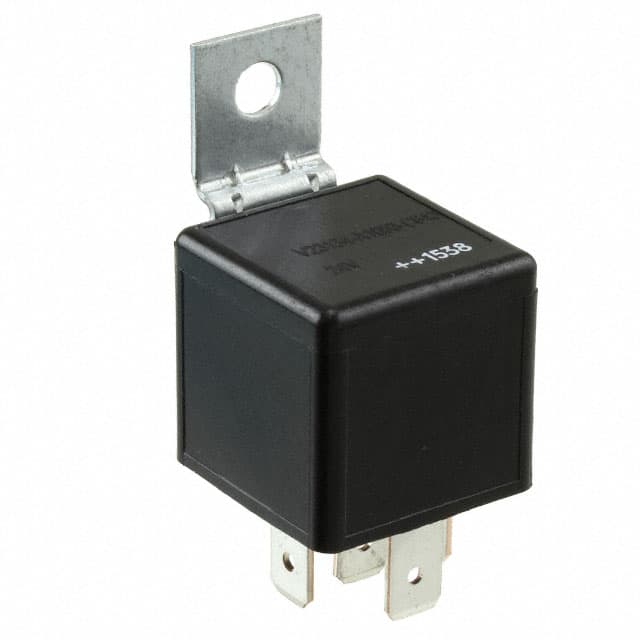

 6-1393302-3 TE Connectivity AMP Connectors | 1 $14.5700 | - | Socketable | -40°C ~ 125°C | - | Non Latching | 24VDC | SPDT (1 Form C) | 60 A | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | 24VDC - Nom | Plug In, Quick Connect - 0.250" (6.3mm) | 2,904 | |

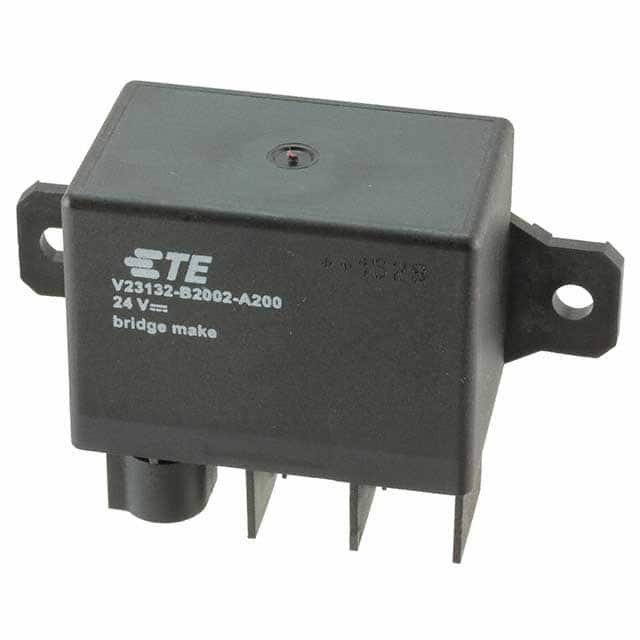

 1393315-9 TE Connectivity AMP Connectors | 1 $80.2400 | - | Chassis Mount | -40°C ~ 125°C | - | Non Latching | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 14.4 VDC | 2.4 VDC | 25 ms | 8 ms | 24VDC - Nom | Screw Terminal | 9,163 |
