RF Multiplexers
RF Multiplexers use bi-directional bandpass filters to combine RF signals for transmission through a single coaxial cable or to split a combined signal into separate signals for transmission through independent coax cables. Types of multiplexing include diplexing, duplexing. triplexing, quadplexing and quintplexing. Multiplexors are differentiated by their frequency bands, low band attenuation, high band attenuation, return loss and mounting type.
Sourcing TDK Corporation RF Multiplexers: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 56
| Product | Pricing | Datasheet | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Mounting Type | Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
 DPX165950DT-8048A1 TDK Corporation | 1 $0.3300 | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 21.00dB / 37.00dB | 23.00dB / 41.00dB | - | Surface Mount | Diplexer | 0603 (1608 Metric), 6 PC Pad | 2,796 | |
DPX165950DT-8148A1 TDK Corporation | 1 $0.3300 | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 21.00dB / 36.00dB | 10.00dB / 42.00dB | - | Surface Mount | Diplexer | 0603 (1608 Metric), 6 PC Pad | 4,219 | |
 DPX202700DT-4062A1 TDK Corporation | 1 $0.5700 | 698MHz ~ 960MHz / 1.9GHz ~ 2.7GHz | 25.00dB / 30.00dB | 30.00dB / 39.00dB | 26.0dB / 15.0dB | Surface Mount | Diplexer | 0805 (2012 Metric), 6 PC Pad | 2,709 | |
 DPX202700DT-4162A1 TDK Corporation | 1 $0.5400 | 698MHz ~ 960MHz / 1.71GHz ~ 2.7GHz | 30.00dB / 39.10dB | 25.00dB / 29.70dB | 10.03dB / 10.03dB | Surface Mount | Diplexer | 0805 (2012 Metric), 6 PC Pad | 8,889 | |
 DPX165950DT-8126A1 TDK Corporation | 1 $0.7800 | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | 21.5dB / 16.6dB | Surface Mount | Diplexer | 0603 (1608 Metric), 6 PC Pad | 8,317 | |
 DPX205850DT-4055A1 TDK Corporation | 1 $0.8800 | 700MHz ~ 1.99GHz / 2.4GHz ~ 5.85GHz | 13.00dB / 28.00dB | 15.00dB / 21.00dB | 9.5dB / 9.5dB | Surface Mount | Diplexer | 0805 (2012 Metric), 6 PC Pad | 4,918 | |
 DPX105850DT-6018A1 TDK Corporation | 1 $0.2800 | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 17.00dB / 33.00dB | 25.00dB / 32.00dB | 10.0dB / 10.0dB | Surface Mount | Diplexer | 0402 (1005 Metric), 4 PC Pad | 6,930 | |
 DPX105950DT-6012A1 TDK Corporation | 1 $0.3300 | 2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 30.00dB / - | 20.00dB / - | 10.0dB / 10.0dB | Surface Mount | Diplexer | 0402 (1005 Metric), 4 PC Pad | 3,154 | |
 DPX165950DT-8060C1 TDK Corporation | 1 $0.3300 | - | - | - | 10.0dB / 10.0dB | Surface Mount | Diplexer | 0603 (1608 Metric), 6 PC Pad | 2,981 | |
 DPX165950DT-8145A1 TDK Corporation | 1 $0.3400 | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 30.00dB / 37.00dB | 15.00dB / 19.00dB | 9.54dB / 9.54dB | Surface Mount | Diplexer | 0603 (1608 Metric), 6 PC Pad | 4,444 | |
 DPX205850DT-4155A1 TDK Corporation | 1 $0.8800 | 700MHz ~ 1.99GHz / 2.4GHz ~ 5.85GHz | - | 15.00dB / 21.00dB | 9.54dB / 9.54dB | Surface Mount | Diplexer | 0805 (2012 Metric), 6 PC Pad | 3,276 | |
DPX202170DT-4049A1 TDK Corporation | 1 $0.8800 | 824MHz ~ 960MHz / 1.71GHz ~ 2.17GHz | 15.00dB / 18.00dB | 20.00dB / 23.00dB | 20.0dB / 14.0dB | Surface Mount | Diplexer | 0805 (2012 Metric), 6 PC Pad | 2,050 | |
DPX205950DT-9126A1 TDK Corporation | 1 $0.8800 | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / 36.00dB | 15.00dB / 28.00dB | 17.0dB / 16.0dB | Surface Mount | Diplexer | 0805 (2012 Metric), 6 PC Pad | 8,422 | |
 DPX205850DT-4154B1 TDK Corporation | 1 $0.8800 | - | - | - | 10.0dB / 10.0dB | Surface Mount | Diplexer | 0805 (2012 Metric), 6 PC Pad | 7,960 | |
 DPX252690DT-5031A1 TDK Corporation | 1 $0.9700 | 698MHz ~ 960MHz / 1.71GHz ~ 2.69GHz | 12.00dB / 36.00dB | 10.00dB / 48.00dB | 20.0dB / 16.0dB | Surface Mount | Diplexer | 1008 (2520 Metric), 8 PC Pad | 4,536 | |

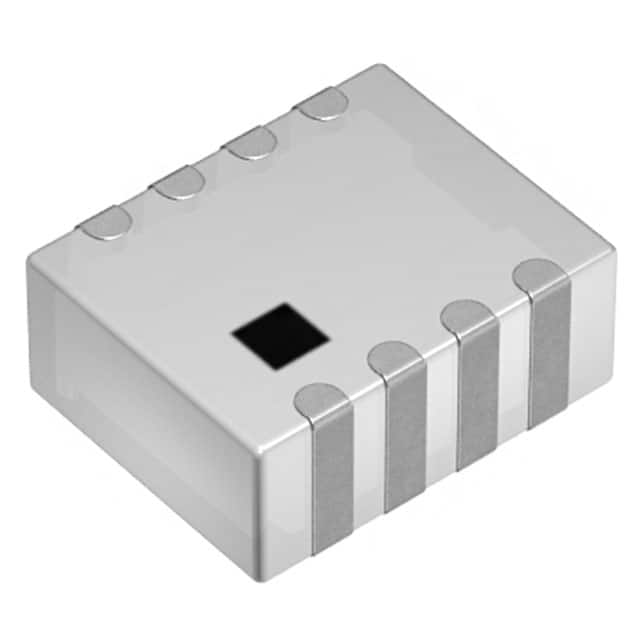

 DPX252690DT-5021B1 TDK Corporation | 1 $0.9700 | 698MHz ~ 960MHz / 1.71GHz ~ 2.69GHz | - | - | - | Surface Mount | Diplexer | 1008 (2520 Metric), 8 PC Pad | 6,798 | |
DPX252690DT-5121C1 TDK Corporation | 1 $0.9800 | - | - | - | - | Surface Mount | Diplexer | 1008 (2520 Metric), 8 PC Pad | 1,383 | |
DPX165950DT-8060A1 TDK Corporation | 1 $0.3300 | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 15.00dB / 43.00dB | 9.00dB / 42.00dB | - | Surface Mount | Diplexer | 0603 (1608 Metric), 6 PC Pad | 5,037 | |
DPX165950DT-8045A1 TDK Corporation | 1 $0.3300 | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 28.00dB / 37.00dB | 11.00dB / 36.00dB | - | Surface Mount | Diplexer | 0603 (1608 Metric), 6 PC Pad | 8,463 | |
DPX162500DT-8128A1 TDK Corporation | 1 $0.3300 | - | - | - | - | Surface Mount | Diplexer | 0603 (1608 Metric), 6 PC Pad | 8,206 |
