Panel Indicators, Pilot Lights
Panel Indicators and Pilot Lights are designed to emit a visible light to indicate a specific state of another device. These items are mounted into a panel. The type of lights are Incandescent, LED, and Neon, with lamp colors of Amber, Blue, Clear, Cyan, Green, Orange, Red, White, and Yellow. The voltage range from 1.6 V to 480 V and current ranges of 0.3 mA to 10 A with Millicandela ratings from 0.2 mcd to 46860 mcd.
Sourcing Lumex, Inc. Panel Indicators, Pilot Lights: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 196
| Product | Pricing | Datasheet | Lamp Color | Ratings | Panel Cutout Shape | Panel Cutout Dimensions | Ingress Protection | Features | Type | Lens Color | Lens Size | Lens Style | Lens Transparency | Millicandela Rating | Wavelength - Peak | Current | Termination Style | Viewing Angle | Voltage | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SSI-LXR3816USBD150 Lumex, Inc. | 1 $4.8500 | Blue | Vf (Typ), If (Max) | Round | 0.32" (8.13mm) | - | - | LED | Blue | 5mm, T-1 3/4 | Round with Domed Top | Diffused | 300mcd | 470nm | 20mA | Wire Leads - 6" (152.40mm) | 60° | 3.5V | 3,397 | |
SSI-LXMP059ID Lumex, Inc. | 1 $0.9400 | Red | Vf (Typ), If (Max) | Rectangle | 0.26" x 0.18" (6.60mm x 4.57mm) | - | - | LED | Red | 4.20mm x 1.83mm | Rectangle with Flat Top | Diffused | 10mcd | 635nm | 30mA | - | 110° | 2V | 8,796 | |
SSI-LXR4815GD-600 Lumex, Inc. | 1 $1.6439 | Green | Vf (Typ), If (Max) | Round | 0.32" (8.13mm) | - | - | LED | Green | 5mm, T-1 3/4 | Round with Domed Top | Diffused | 30mcd | 565nm | 20mA | Wire Leads - 24" (609.60mm) | 60° | 2.2V | 3,737 | |
SSI-LXW06DNS-Y Lumex, Inc. | 1 $9.5100 | Yellow | DC | - | - | IP67 | - | LED | - | - | Round with Flat Top | - | - | - | 20mA | Solder Lug | - | 6V | 9,640 | |
SSI-LXR1612SRD Lumex, Inc. | Red | Vf (Typ), If (Max) | Round | 0.24" (6.10mm) | - | - | LED | Red | 3mm, T-1 | Round with Domed Top | Diffused | 80mcd | 660nm | 30mA | - | 30° | 1.8V | 5,145 | ||
SSI-LXR3612SRD Lumex, Inc. | Red | Vf (Typ), If (Max) | Round | 0.24" (6.10mm) | - | - | LED | Red | 3mm, T-1 | Round with Domed Top | Diffused | 65mcd | 660nm | 30mA | - | 60° | 1.8V | 2,933 | ||
SSI-LXH9ID/-150 Lumex, Inc. | Red | Vf (Typ), If (Max) | Round | 0.33" (8.38mm) | - | - | LED | Red | 5mm, T-1 3/4 | Round with Domed Top | Diffused | 40mcd | 635nm | 30mA | Wire Leads - 6" (152.40mm) | 60° | 2V | 7,228 | ||
SSI-LXH8080GD Lumex, Inc. | Green | Vf (Typ), If (Max) | Round | 0.47" (11.94mm) | - | - | LED | Green | 8.00mm Dia | Round with Domed Top | Diffused | 30mcd | 565nm | 25mA | - | 60° | 2.2V | 8,345 | ||
SSI-LXH8080YD Lumex, Inc. | Yellow | Vf (Typ), If (Max) | Round | 0.47" (11.94mm) | - | - | LED | Yellow | 8.00mm Dia | Round with Domed Top | Diffused | 30mcd | 585nm | 30mA | - | 60° | 2.1V | 1,038 | ||
SSI-LXH8080SRD Lumex, Inc. | Red | Vf (Typ), If (Max) | Round | 0.47" (11.94mm) | - | - | LED | Red | 8.00mm Dia | Round with Domed Top | Diffused | 80mcd | 660nm | 30mA | - | 60° | 1.7V | 6,159 | ||
SSI-LXH1090ID Lumex, Inc. | Red | Vf (Typ), If (Max) | Round | 0.55" (13.97mm) | - | - | LED | Red | 10.00mm Dia | Round with Domed Top | Diffused | 40mcd | 635nm | 30mA | - | 60° | 2V | 8,679 | ||
SSI-LXH1090YD Lumex, Inc. | Yellow | Vf (Typ), If (Max) | Round | 0.55" (13.97mm) | - | - | LED | Yellow | 10.00mm Dia | Round with Domed Top | Diffused | 30mcd | 585nm | 30mA | - | 60° | 2.1V | 5,918 | ||
SSI-LXH55ID Lumex, Inc. | Red | Vf (Typ), If (Max) | Square | 0.55" (13.97mm) | - | - | LED | Red | 4.40mm | Square with Flat Top | Diffused | 10mcd | 635nm | 30mA | - | 80° | 2V | 2,556 | ||
SSI-LXH55GD Lumex, Inc. | Green | Vf (Typ), If (Max) | Square | 0.55" (13.97mm) | - | - | LED | Green | 4.40mm | Square with Flat Top | Diffused | 10mcd | 565nm | 30mA | - | 80° | 2.1V | 3,027 | ||
SSI-LXH55YD Lumex, Inc. | Yellow | Vf (Typ), If (Max) | Square | 0.35" x 0.35" (8.89mm x 8.89mm) | - | - | LED | Yellow | 4.40mm | Square with Flat Top | Diffused | 10mcd | 585nm | 30mA | - | 80° | 2.1V | 6,468 | ||
SSI-LXH55SRD Lumex, Inc. | Red | Vf (Typ), If (Max) | Square | 0.35" x 0.35" (8.89mm x 8.89mm) | - | - | LED | Red | 4.40mm | Square with Flat Top | Diffused | 20mcd | 660nm | 30mA | - | 80° | 1.7V | 4,257 | ||
SSI-LXMP059YD Lumex, Inc. | Yellow | Vf (Typ), If (Max) | Rectangle | 0.26" x 0.18" (6.60mm x 4.57mm) | - | - | LED | Yellow | 4.20mm x 1.83mm | Rectangle with Flat Top | Diffused | 10mcd | 585nm | 30mA | - | 110° | 2.1V | 9,881 | ||
SSI-LXMP059SRD Lumex, Inc. | Red | Vf (Typ), If (Max) | Rectangle | 0.26" x 0.18" (6.60mm x 4.57mm) | - | - | LED | Red | 4.20mm x 1.83mm | Rectangle with Flat Top | Diffused | 25mcd | 660nm | 30mA | - | 110° | 1.7V | 8,635 | ||
SSI-LXH072SRD Lumex, Inc. | Red | Vf (Typ), If (Max) | Rectangle | 0.43" x 0.21" (11.00mm x 5.30mm) | - | - | LED | Red | 7.00mm x 2.30mm | Rectangle with Flat Top | Diffused | 50mcd | 660nm | 30mA | - | 110° | 1.7V | 3,533 | ||

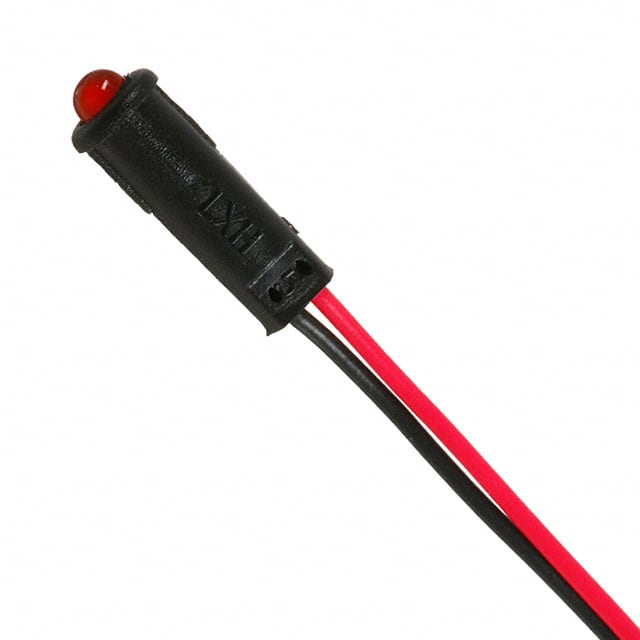

SSI-LXH312ID Lumex, Inc. | Red | Vf (Typ), If (Max) | Round | 0.17" (4.32mm) | - | - | LED | Red | 3mm, T-1 | Round with Domed Top | Diffused | 30mcd | 635nm | 30mA | PC Pin | 60° | 2V | 8,760 |
