Panel Meters
Panel meters are instruments that display a visual representation of an input signal using an analog needle or other physical indicator or digital characters. Many panel meters also include auxiliary outputs that may be used for alarm options as well as the ability to transfer data or a reference signal to a computer or microcontroller. Panel meters are selected by measuring range, display type, character/indicator attributes and supply voltage. Meters types include current, voltage, frequency, process, resistance, temperature, and wattage.
Sourcing Trumeter Panel Meters: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 5
| Product | Pricing | Datasheet | Measuring Range | Features | Mounting Type | Type | Display Characters - Height | Number of Characters Per Row | Display Type | Ingress Protection | Output Type | Panel Cutout Dimensions | Termination Style | Voltage - Supply | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

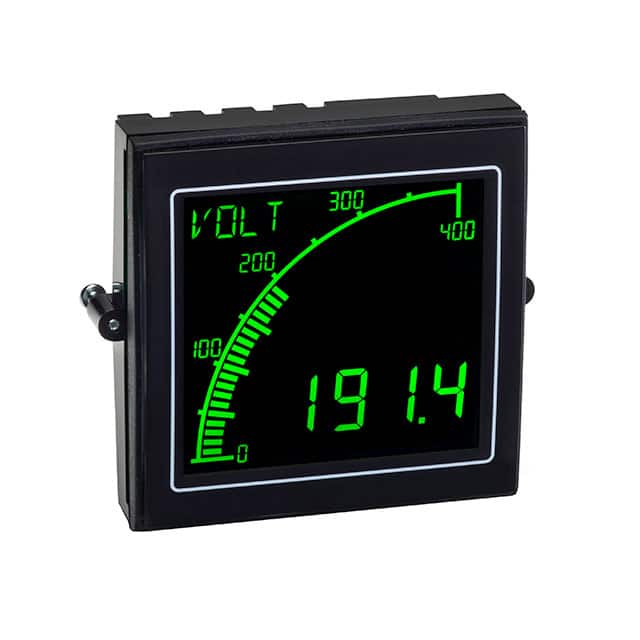

 APM-VOLT-ANO Trumeter | 1 $116.4600 | 0 ~ 600VAC/DC | - | Panel Mount | Voltage (Voltmeter) | 0.472" (12.00mm) | 4 | LCD - Tri Color Characters, Backlight | IP65 - Dust Tight, Water Resistant | Analog (2), Digital (2) | Square - 68.00mm x 68.00mm | Screw Terminal | 12 ~ 24VAC/DC | 9,391 | |

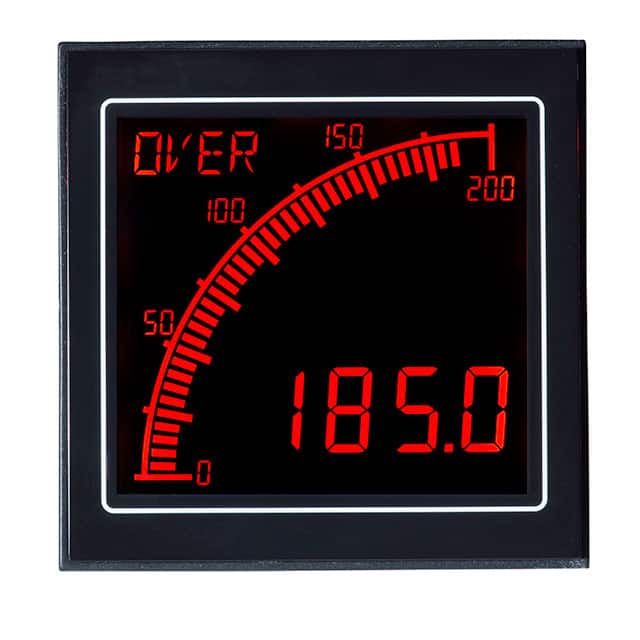

 APM-AMP-ANO Trumeter | 1 $116.4600 | 0 ~ 10000A | - | Panel Mount | Current (Ammeter) | 0.472" (12.00mm) | 4 | LCD - Tri Color Characters, Backlight | IP65 - Dust Tight, Water Resistant | Analog (2), Digital (2) | Square - 68.00mm x 68.00mm | Screw Terminal | 12 ~ 24VAC/DC | 4,586 | |
 APM-MAX-M23-PU-4R Trumeter | 1 $305.6900 | 0 ~ 10VDC, 0 ~ 5A, 0 ~ 400Hz | - | Panel Mount | Process Meter | 0.570" (14.50mm) | 4 | LCD - Black Characters, Quad Color Backlight | IP65 - Dust Tight, Water Resistant | Analog, Digital (2) | Square - 68.00mm x 68.00mm | Screw Terminal | 100 ~ 240VAC | 9,025 | |

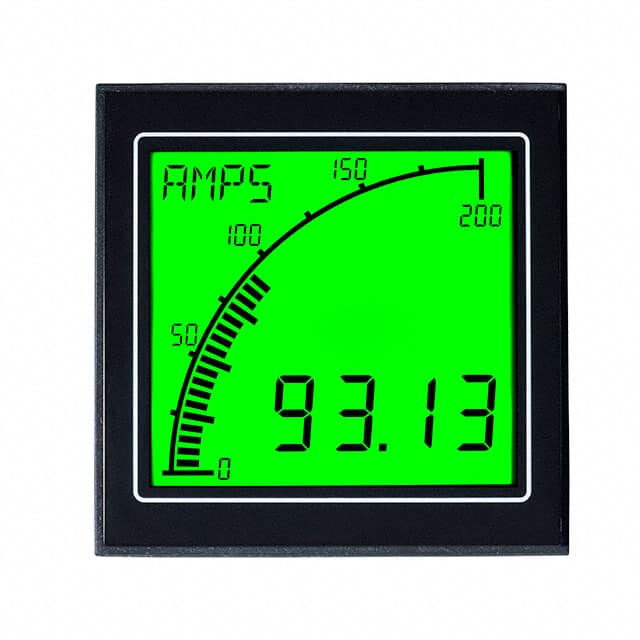

 APM-SHUNT-APO Trumeter | 1 $131.0100 | 0 ~ 1VDC | - | Panel Mount | Current (Ammeter) | 0.472" (12.00mm) | 4 | LCD - Black Characters, Tri Color Backlight | IP65 - Dust Tight, Water Resistant | Analog (2), Digital (2) | Square - 68.00mm x 68.00mm | Screw Terminal | 12 ~ 24VDC | 8,181 | |
 APM-MICRO-ANO Trumeter | 1 $121.3100 | 0 ~ 200µA | - | Panel Mount | Current (Ammeter) | 0.470" (11.94mm) | 4 | LCD - Black Characters, Tri Color Backlight | IP65 - Dust Tight, Water Resistant | Analog, Digital (2) | Square - 68.07mm x 68.07mm | Screw Terminal | 12 ~ 24VDC | 9,208 |
