Wireless Charging Coils
Wireless charging coils generate an alternating electromagnetic field used to inductively transfer energy to other coils positioned parallel and in close proximity. The energy is used to charge batteries or run the device receiving the energy. The coils may be designed as receivers, transmitters or dual purpose having single or multiple coils and multiple layers of windings. They are rated by their inductance, self resonant frequency, saturation current and Q factor at a given frequency.
Sourcing Laird - Performance Materials Wireless Charging Coils: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 6
| Product | Pricing | Datasheet | Function | Operating Temperature | Size / Dimension | Type | Current - Saturation (Isat) | DC Resistance (DCR) | Frequency - Self Resonant | Q @ Freq | Current Rating (Amps) | Inductance | Tolerance | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

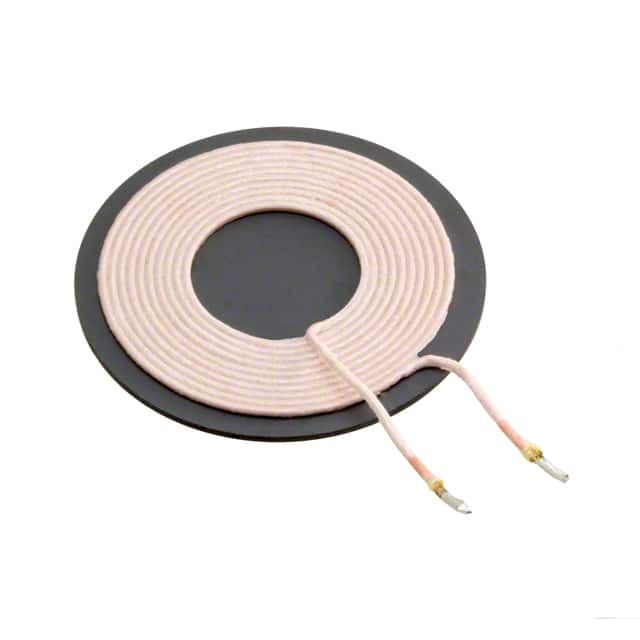

 RWC5050AK060-500 Laird - Performance Materials | 1 $8.4300 | Transmitter | -40°C ~ 125°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) | 1 Coil, 1 Layer | - | 50mOhm Max | - | 70 @ 100kHz | - | 6.5µH | ±10% | 9,339 | |

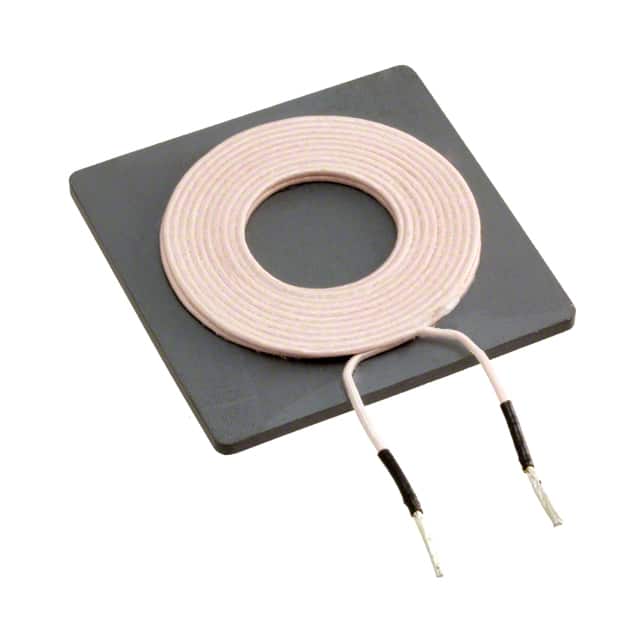

 RWC5353EJ240-501 Laird - Performance Materials | 1 $9.6300 | Transmitter | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) | 1 Coil, 2 Layer | 10A | 75mOhm Max | - | 90 @ 100kHz | 5.5A | 24µH | ±10% | 9,881 | |
 RWC5353EJ240-500 Laird - Performance Materials | 1 $10.1500 | Transmitter | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) | 1 Coil, 2 Layer | 10A | 75mOhm Max | - | 90 @ 100kHz | 5.5A | 24µH | ±10% | 4,934 | |
SWC10056AA120-500 Laird - Performance Materials | 1 $15.0100 | Transmitter | -40°C ~ 125°C | 3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm) | 3 Coil, 1 Layer | - | 65mOhm Max | - | 90 @ 100kHz | - | 12.5µH, 11.5µH, 12.5µH | ±10% | 8,556 | |
SWC4242KB120-100 Laird - Performance Materials | 1 $4.1112 | Receiver | -40°C ~ 85°C | 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm) | 1 Coil, 1 Layer | - | 240mOhm Max | - | 20 @ 100kHz | - | 12.5µH | ±10% | 3,993 | |
SWC5547AK120-500 Laird - Performance Materials | 1 $6.1393 | Transmitter | -40°C ~ 125°C | 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm) | 1 Coil, 1 Layer | - | 65mOhm Max | - | 90 @ 100kHz | - | 12.5µH | ±10% | 2,119 |
