Arrays, Signal Transformers
Transformer-type inductor arrays are inductors having two or more windings which are not electrically connected internally, but which are magnetically coupled within the device. Also known as coupled inductors, the choice of external connection allows their use for different purposes such as common or differential mode filtering and voltage transformation.
Sourcing EPCOS (TDK) Arrays, Signal Transformers: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 46
| Product | Pricing | Datasheet | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Mounting Type | Operating Temperature | Size / Dimension | Height | Package / Case | Ratings | Shielding | Tolerance | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

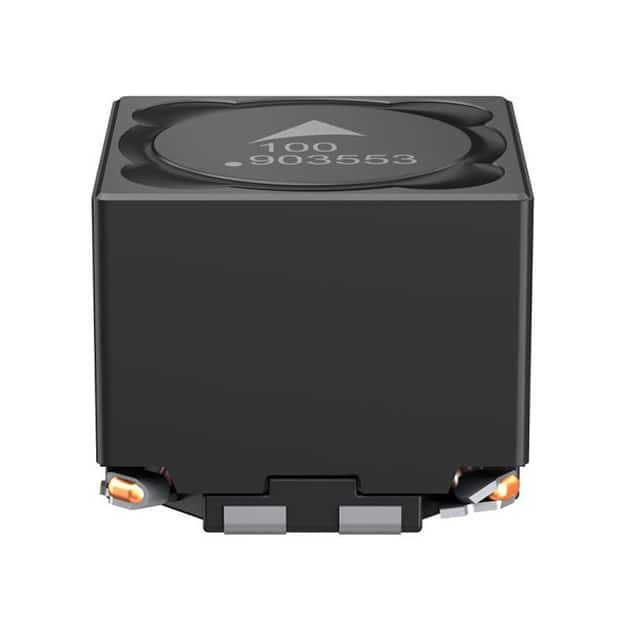

 B82477D6473M603 EPCOS (TDK) | 1 $3.4900 | 2 | 47 µH | 188 µH | - | 2.83 A | 4.7 A | 2.35 A | 47mOhm Max | 188mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 4,896 | |
B82477D6223M603 EPCOS (TDK) | 1 $3.4900 | 2 | 22 µH | 88 µH | - | 3.85 A | 7.2 A | 3.6 A | 26.5mOhm Max | 106mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 6,067 | |
 B82477D6473M603 EPCOS (TDK) | 1 $3.3900 | 2 | 47 µH | 188 µH | - | 2.83 A | 4.7 A | 2.35 A | 47mOhm Max | 188mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 5,762 | |
B82477D6103M603 EPCOS (TDK) | 1 $3.3900 | 2 | 10 µH | 40 µH | - | 9.9 A | 8.4 A | 4.2 A | 13.5mOhm Max | 54mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 9,883 | |
B82477D6223M603 EPCOS (TDK) | 1 $3.3900 | 2 | 22 µH | 88 µH | - | 3.85 A | 7.2 A | 3.6 A | 26.5mOhm Max | 106mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 4,130 | |
B82477D4104M900 EPCOS (TDK) | 1 $2.4700 | 2 | 100 µH | 400 µH | - | 1.61 A | 2.2 A | 1.1 A | 140mOhm Max | 560mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 7,051 | |
B82477D4473M900 EPCOS (TDK) | 1 $2.4700 | 2 | 47 µH | 188 µH | - | 2.44 A | 3.3 A | 1.65 A | 72.5mOhm Max | 290mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 9,895 | |
B82477D4683M900 EPCOS (TDK) | 1 $2.4700 | 2 | 68 µH | 272 µH | - | 1.89 A | 2.5 A | 1.25 A | 107.5mOhm Max | 430mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 9,321 | |
B82477D4103M000 EPCOS (TDK) | 1 $2.6300 | 2 | 10 µH | 40 µH | - | 3.75 A | 6.5 A | 3.25 A | 21mOhm Max | 84mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 5,643 | |
B82477D4202M900 EPCOS (TDK) | 1 $2.4700 | 2 | 2 µH | 8 µH | - | 6.22 A | 15 A | 7.5 A | 10mOhm Max | 40mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 5,703 | |
B82477D4302M900 EPCOS (TDK) | 1 $2.4700 | 2 | 3 µH | 12 µH | - | 5.84 A | 12 A | 6 A | 11mOhm Max | 44mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 8,479 | |
B82477D4333M900 EPCOS (TDK) | 1 $2.4700 | 2 | 33 µH | 132 µH | - | 2.68 A | 3.8 A | 1.9 A | 55mOhm Max | 220mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 6,285 | |
B82477D4682M900 EPCOS (TDK) | 1 $2.4700 | 2 | 6.8 µH | 27.2 µH | - | 4.75 A | 8.25 A | 4.125 A | 17.5mOhm Max | 70mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 4,988 | |
B82477D4473M000 EPCOS (TDK) | 1 $2.6300 | 2 | 47 µH | 188 µH | - | 1.85 A | 3.3 A | 1.65 A | 72.5mOhm Max | 290mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 5,793 | |
B82472D6682M000 EPCOS (TDK) | 1 $2.1800 | 2 | 6.8 µH | 27.2 µH | - | 2.75 A | 4.6 A | 2.3 A | 37.5mOhm Max | 150mOhm Max | Surface Mount | -55°C ~ 150°C | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 7,521 | |
B82472D6153M000 EPCOS (TDK) | 1 $2.1800 | 2 | 15 µH | 60 µH | - | 1.85 A | 3 A | 1.5 A | 79mOhm Max | 316mOhm Max | Surface Mount | -55°C ~ 150°C | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 4,914 | |
B82472D6473M000 EPCOS (TDK) | 1 $2.1800 | 2 | 47 µH | 188 µH | - | 1.1 A | 1.8 A | 0.9 A | 219mOhm Max | 876mOhm Max | Surface Mount | -55°C ~ 150°C | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 1,552 | |
B82472D6222M000 EPCOS (TDK) | 1 $2.1800 | 2 | 2.2 µH | 8.8 µH | - | 4.3 A | 7.95 A | 3.975 A | 17.5mOhm Max | 70mOhm Max | Surface Mount | -55°C ~ 150°C | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 1,019 | |
B82477D6153M603 EPCOS (TDK) | 1 $3.3900 | 2 | 15 µH | 60 µH | - | 4.92 A | 8.7 A | 4.35 A | 17.5mOhm Max | 70mOhm Max | Surface Mount | -55°C ~ 150°C | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 3,432 | |
B82472D6223M000 EPCOS (TDK) | 1 $2.1800 | 2 | 22 µH | 88 µH | - | 1.65 A | 2.55 A | 1.275 A | 96.5mOhm Max | 386mOhm Max | Surface Mount | -55°C ~ 150°C | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) | Nonstandard | AEC-Q200 | Shielded | ±20% | 5,751 |
