SAW Filters
SAW (Surface Acoustic Wave) Filters are designed to remove unwanted frequencies from a circuit. Items in this family convert signal voltages into acoustic waves at one end of the device. These waves travel the length of quartz device at a specific frequency. The waves are reconverted back to signal voltages on the other end. The bandwidth range is 25kHz to 328MHz with insertion losses of 0.44dB to 23dB.
Sourcing Abracon SAW Filters: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 5
| Product | Pricing | Datasheet | Mounting Type | Size / Dimension | Frequency - Center | Height (Max) | Applications | Bandwidth | Insertion Loss | Package / Case | Ratings | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

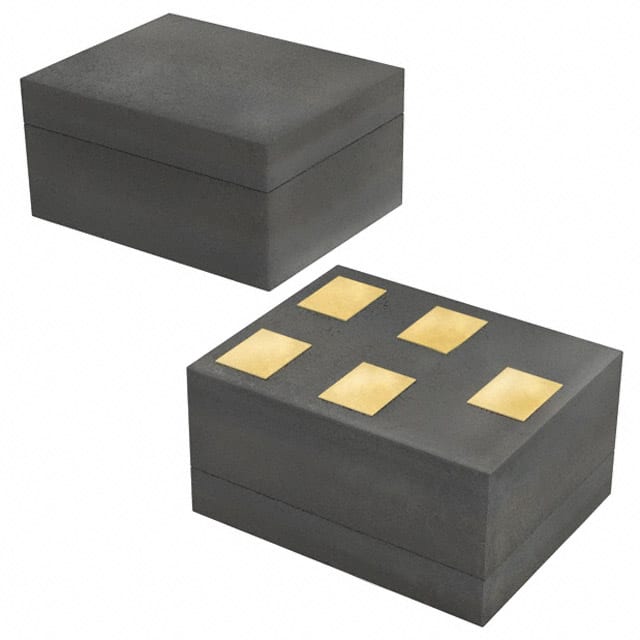

 AFS14A34-1588.66-T3 Abracon | 1 $0.9400 | Surface Mount | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 1.589GHz | 0.028" (0.70mm) | General Purpose | 34MHz | 1.7dB | 5-SMD, No Lead | - | 4,631 | |
AFS14A26-915.00-T3 Abracon | 1 $1.1300 | Surface Mount | 0.055" L x 0.043" W (1.40mm x 1.10mm) | 915MHz | 0.028" (0.70mm) | General Purpose | 26MHz | 2.5dB | 5-SMD, No Lead | - | 3,339 | |

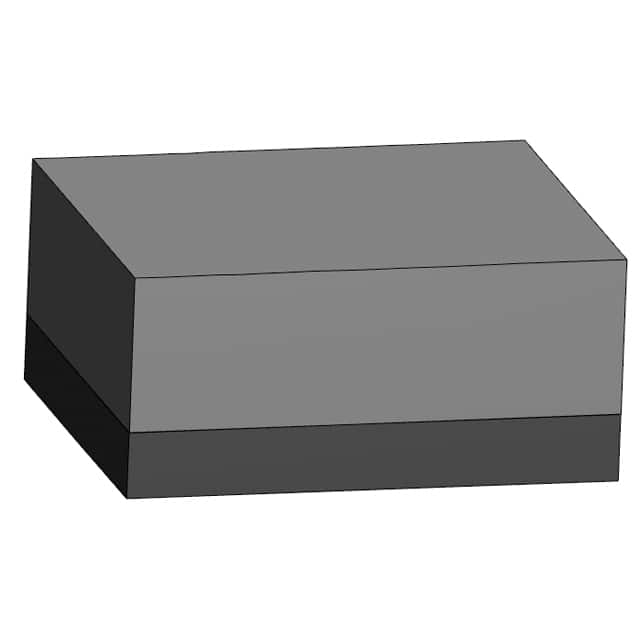

 ABSTS5A2-22NM024M Abracon | 1 $0.6600 | Surface Mount | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 1.223GHz | 0.020" (0.50mm) | GPS | 52MHz | 1.8dB | 5-SMD, No Lead | - | 9,621 | |

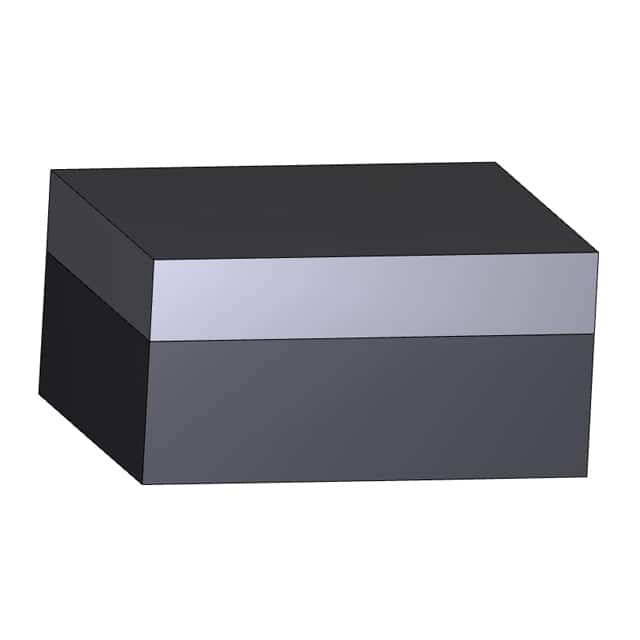

 ABSTS5A2-1F6M01BM Abracon | 1 $0.6600 | Surface Mount | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 942.5MHz | 0.022" (0.57mm) | Cellular, WCDMA | 35MHz | 2dB | 5-SMD, No Lead | - | 5,385 | |
 ABSTS5A2-3H4M02CM Abracon | 1 $0.6600 | Surface Mount | 0.043" L x 0.035" W (1.10mm x 0.90mm) | 2.14GHz | 0.022" (0.57mm) | Cellular, LTE, UMTS, WCDMA | - | 1.9dB | 5-SMD, No Lead | - | 6,060 |
