Power Line Filter Modules
Power line filter modules are modularized passive component assemblies that are used to inhibit current flow through power supply conductors at frequencies outside that which is nominal for the intended supply. Commonly used in conjunction with AC utility power sources, they are used both to mitigate interference caused by outside sources as well as suppress potential interference which might be caused by a connected device.
Sourcing Delta Electronics Power Line Filter Modules: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 5
| Product | Pricing | Datasheet | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Frequency - Operating | Termination Style | Inductance | Mounting Type | Operating Temperature | Filter Type | Applications | Approval Agency | Current | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

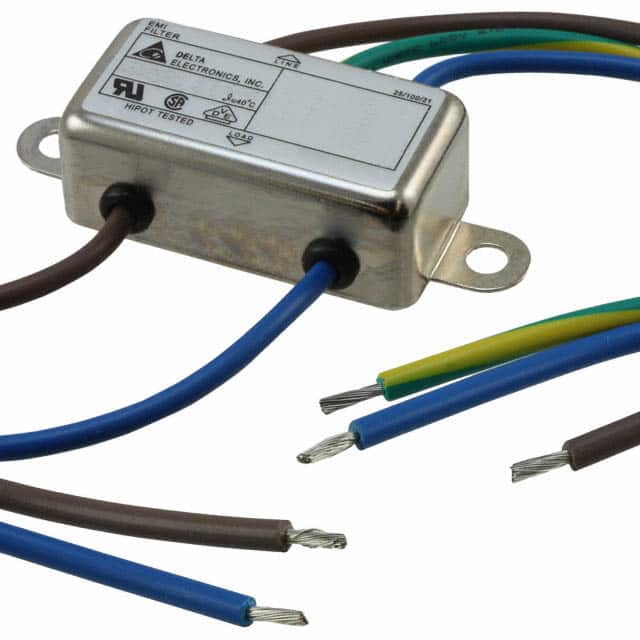

 03DBAW5 Delta Electronics | 1 $10.8500 | Single Stage | - | 115V, 250V | - | - | 50/60Hz | Wire Leads | 2.8mH | Chassis Mount | -25°C ~ 100°C | Single Phase | General Purpose | CSA, UR, VDE | 3 A | 6,605 | |

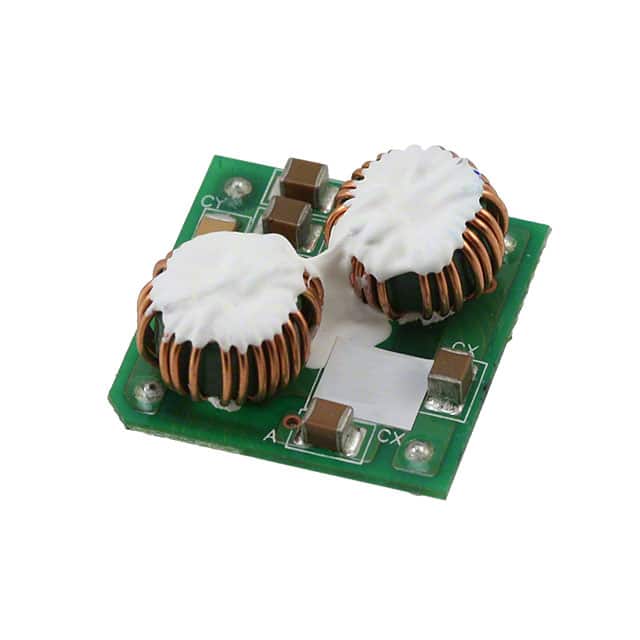

 FL75L07A Delta Electronics | 1 $16.3300 | Two Stage | - | 75V | - | - | - | SMD (SMT) Tab | - | Surface Mount | -40°C ~ 115°C | DC | General Purpose | cUL, UL, VDE | 7 A | 8,558 | |

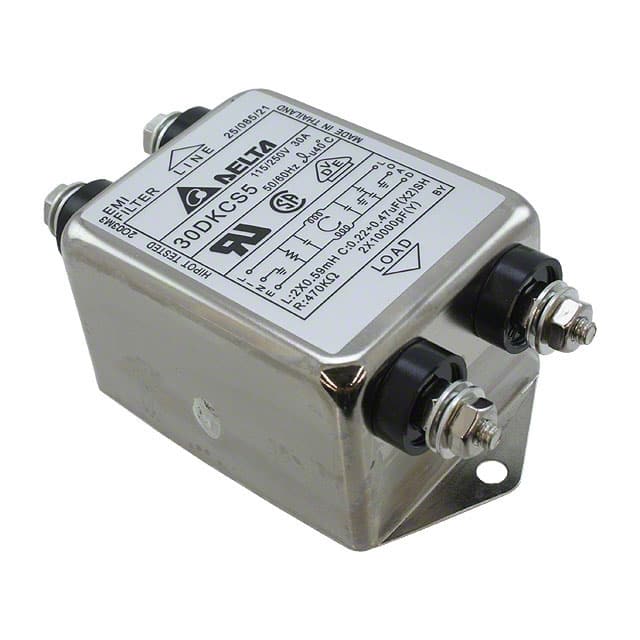

 30DKCS5 Delta Electronics | 1 $22.0300 | Single Stage | - | 115V, 250V | - | - | 50/60Hz | Threaded Post (8-32) | 590µH | Chassis Mount | -25°C ~ 100°C | Single Phase | General Purpose | CSA, UR, VDE | 30 A | 8,295 | |

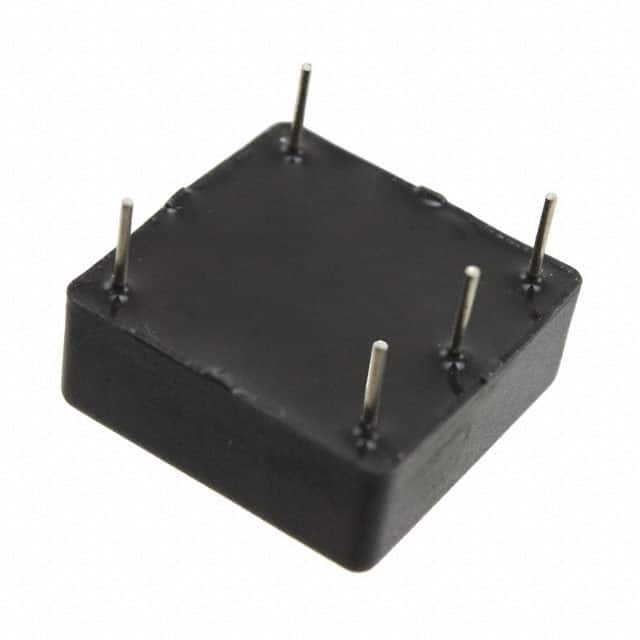

 FL75L05 A Delta Electronics | 1 $19.9400 | Two Stage | - | 75V | - | - | - | PC Pins | - | Through Hole | -40°C ~ 120°C | DC | General Purpose | cUL, UL, VDE | 5 A | 5,564 | |

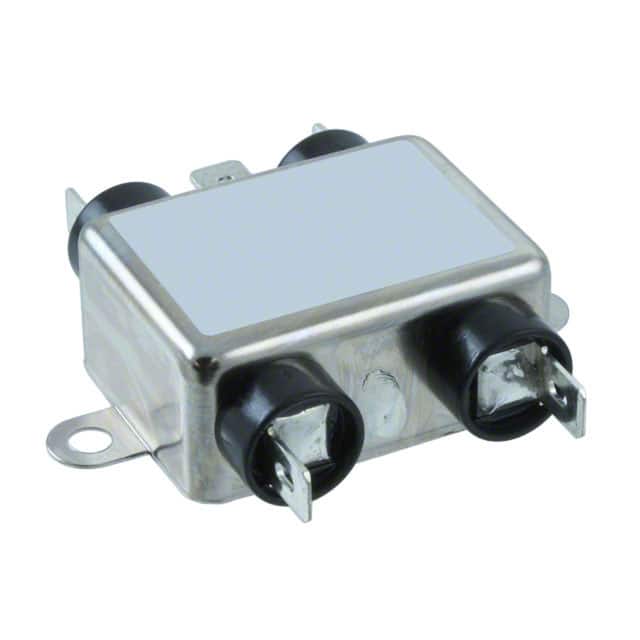

 03DBAG5 Delta Electronics | 1 $11.4300 | Single Stage | - | 115V, 250V | - | - | 50/60Hz | Quick Connect | 2.8mH | Chassis Mount | -25°C ~ 100°C | Single Phase | General Purpose | CSA, UR, VDE | 3 A | 9,781 |
