Common Mode Chokes
A common mode choke is an electrical filter that blocks high frequency noise common to two or more data or power lines while allowing the desired DC or low-frequency signal to pass. Common mode (CM) noise current is typically radiated from sources such as unwanted radio signals, unshielded electronics, inverters and motors. Left unfiltered, this noise presents interference problems in electronics and electrical circuits.
Sourcing Nexperia Common Mode Chokes: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 2
| Product | Pricing | Datasheet | Inductance @ Frequency | Voltage Rating - DC | Voltage Rating - AC | Features | Mounting Type | Operating Temperature | Size / Dimension | Current Rating (Max) | DC Resistance (DCR) (Max) | Filter Type | Height (Max) | Impedance @ Frequency | Number of Lines | Approval Agency | Package / Case | Ratings | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

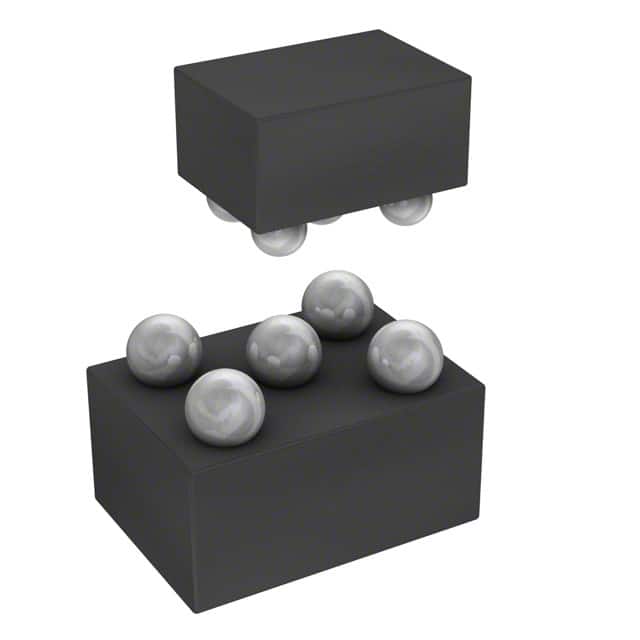

 PCMF1USB3SZ Nexperia | 1 $0.8307 100 $0.6646 500 $0.5538 | - | - | - | ESD | Surface Mount | -40°C ~ 125°C | 0.046" L x 0.030" W (1.17mm x 0.77mm) | - | 3Ohm (Typ) | Signal Line | 0.024" (0.60mm) | - | 2 | - | 5-UFBGA, WLCSP | - | 15 | |
 PCMF2HDMI2SZ Nexperia | 1 $0.8600 | - | - | - | ESD | Surface Mount | -40°C ~ 85°C | 0.062" L x 0.046" W (1.57mm x 1.17mm) | - | 3Ohm (Typ) | Signal Line | 0.024" (0.60mm) | - | 4 | - | 10-UFBGA, WLCSP | - | 7,388 |
