Thermal - Thermoelectric, Peltier Modules
Thermoelectric or Peltier Modules are devices that are designed for thermal transfer using the Peltier effect. As current passes through the junction between two ceramic substrates, heat is produced on one side of the junction and absorbed on the other side. A heatsink is recommended for the hot side of the module. The characteristics are Qmax @ Th, Delta Tmax @ Th, current max, voltage max, resistance, and operating temperature.
Sourcing Wakefield Thermal Thermal - Thermoelectric, Peltier Modules: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 4
| Product | Pricing | Datasheet | Qmax @ Th | Delta Tmax @ Th | Number of Stages | Current - Max | Voltage - Max | Features | Operating Temperature | Size / Dimension | Height | Resistance | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

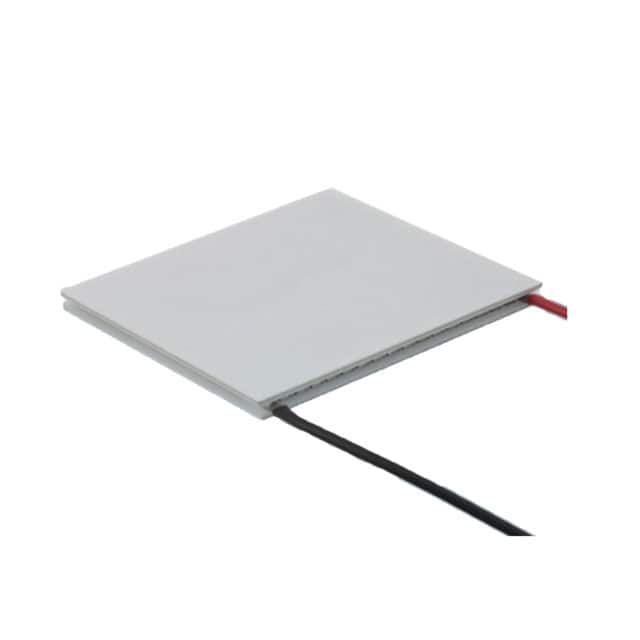

 TEC-20-33-31 Wakefield Thermal | 1 $17.0700 | 16.8W @ 25°C | 67°C @ 25°C | 1 | 8.5 A | 3.8 V | Lead Wires, Sealed - Silicone RTV | 90°C | Square - 20.00mm L x 20.00mm W | 3.30mm | 380 mOhms | 3,380 | |
TEC-40-36-127 Wakefield Thermal | 1 $23.4500 | 51.4W @ 27°C | 68°C @ 27°C | 1 | 6 A | 15.4 V | Lead Wires, Sealed - Silicone RTV | 90°C | Square - 40.00mm L x 40.00mm W | 3.60mm | 2.17 Ohms | 5,055 | |
TEC-40-33-127 Wakefield Thermal | 1 $26.1100 | 72.0W @ 27°C | 68°C @ 27°C | 1 | 8.5 A | 15.4 V | Lead Wires, Sealed - Silicone RTV | 90°C | Square - 40.00mm L x 40.00mm W | 3.30mm | 1.66 Ohms | 6,321 | |
TEC-40-39-127 Wakefield Thermal | 1 $28.2100 | 33.4W @ 27°C | 68°C @ 27°C | 1 | 4 A | 15.4 V | Lead Wires, Sealed - Silicone RTV | 90°C | Square - 40.00mm L x 40.00mm W | 3.91mm | 3.22 Ohms | 8,487 |
