Card Guides
Card Guides are designed to align a board when it is inserted into a card rack. They are made of aluminum, beryllium copper, metal, nylon, plastic, polybutylene, polycarbonate, polyphenylene, polystyrene, stainless steel, and zinc. They come in lengths of 0.312” to 48.000” and come in chassis, snap-in, or screw mount versions.
Browse Card Guides by MPN. We highlight stock availability, support BOM matching, and source through original / verified channels.
Product List
Total Components: 783
| Product | Pricing | Datasheet | For Use With/Related Products | Accessory Type | Stock & Quantity |
|---|---|---|---|---|---|
 RSSHG-251-165 Essentra Components | 1 $1.9100 | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 2.500" (63.50mm) | 4,744 | |
RSSHG-501-165 Essentra Components | 1 $1.9100 | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 5.000" (127.00mm) | 8,079 | |
 64568080 nVent Schroff | 1 $2.4800 | 0.079" (2.00mm) Thick PC Boards | Polycarbonate, Snap-In Mount, 11.024" (280.00mm) | 7,163 | |
 24560379 nVent Schroff | 1 $31.4500 | 0.079" (2.00mm) Thick PC Boards | Aluminum, Polybutylene Terephthalate, Snap-In Mount, 11.024" (280.00mm) | 1,581 | |
CG3-80/12 Vector Electronics & Technology, Inc. | 1 $39.3700 | 0.062 ~ 0.090" (1.57 ~ 2.29mm) Cards | Polycarbonate, Snap-In Mount, 3.150" (80.00mm) | 3,417 | |
 CG4-220E/12 Vector Electronics & Technology, Inc. | 1 $75.8200 | - | Polycarbonate, Snap-In Mount, 8.661" (220.00mm) | 2,341 | |
 8646 Keystone Electronics Corp. | 1 $3.1600 | Circuit Board | Nylon, Snap-In Mount, 2.559" (65.00mm) | 9,457 | |
E-1100-CI Bivar, Inc. | 1 $3.0064 | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 11.000" (279.40mm) | 7,015 | |
3450-0006-02 Vector Electronics & Technology, Inc. | 1 $3.0430 | - | - | 9,380 | |
3450-0006-01 Vector Electronics & Technology, Inc. | 1 $3.0430 | - | - | 6,856 | |

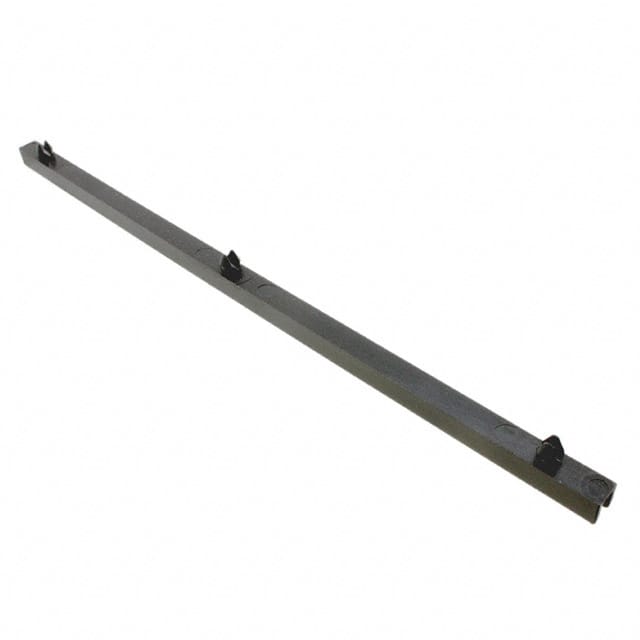

DC-800-130-CI Bivar, Inc. | 1 $3.0704 | 1/8" (3.2mm) Thick PC Boards | Nylon, Snap-In Mount, 8.000" (203.20mm) | 5,138 | |
N-850-3-CI Bivar, Inc. | 1 $3.2219 | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 8.500" (215.90mm) | 4,126 | |
CPCI-MV160 Bivar, Inc. | 1 $3.3981 | Compact PCI Subracks | Polycarbonate, Snap-In Mount, 5.630" (143.00mm) | 4,215 | |
CPCI-MV220 Bivar, Inc. | 1 $3.3981 | Compact PCI Subracks | Polycarbonate, Snap-In Mount, 8.000" (203.20mm) | 7,698 | |
SFS-800-CI Bivar, Inc. | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 8.000" (203.20mm) | 9,687 | ||
1000-109 Bivar, Inc. | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 1.000" (25.40mm) | 3,989 | ||
1000-156 Bivar, Inc. | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 1.000" (25.40mm) | 7,888 | ||
750-078 Bivar, Inc. | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 0.750" (19.05mm) | 8,473 | ||
750-109 Bivar, Inc. | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 0.750" (19.05mm) | 8,702 | ||
750-125 Bivar, Inc. | 1/16" (1.6mm) Thick PC Boards | Nylon, Snap-In Mount, 0.750" (19.05mm) | 8,091 |
