Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Products within this family provide a convenient means of evaluating the performance or behavior of devices used for switch-mode power conversion, including both DC-DC and AC-DC types. Devices described as "regulators" (those containing an internal power switching device) and "controllers" (those designed to control an external power switch) are both included.
Browse Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS by MPN. We highlight stock availability, support BOM matching, and source through original / verified channels.
Product List
Total Components: 100
| Product | Pricing | Datasheet | Main Purpose | Power - Output | Regulator Topology | Frequency - Switching | Board Type | Current - Output | Outputs and Type | Supplied Contents | Utilized IC / Part | Voltage - Input | Voltage - Output | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MAX17220EVKIT# ADI (Analog Devices, Inc.) | 1 $50.7400 | DC/DC, Step Up | - | Boost | - | Fully Populated | 225mA | 1, Non-Isolated | Board(s) | MAX17220 | 0.4V ~ 5.5V | 1.8V ~ 5V | 5,848 | |
 R-78S3.3-0.1-EVM-1 RECOM Power | 1 $52.0000 | DC/DC, Step Up | - | Boost | 1.2MHz | Fully Populated | 100mA | 1, Non-Isolated | Board(s) | R-78S | 0.65V ~ 3.15V | 3.3V | 2,033 | |
 RPMB12-3.0-EVM-1 RECOM Power | 1 $53.5800 | DC/DC, Step Down | - | Buck | 1.4MHz | Fully Populated | 3A | 1, Non-Isolated | Board(s) | RPMB12-3.0-EVM-1 | 12.8V ~ 36V | 12V | 9,623 | |
 LMZ21701EVM Texas Instruments | 1 $58.8000 | DC/DC, Step Down | - | Buck | - | Fully Populated | 1A | 1, Non-Isolated | Board(s) | LMZ21701 | 5V ~ 17V | 3.3V | 5,016 | |
 LMZ31710EVM-001 Texas Instruments | 1 $58.8000 | DC/DC, Step Down | - | Buck | - | Fully Populated | 10A | 1, Non-Isolated | Board(s) | LMZ31710 | 2.95V ~ 17V | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 4,210 | |
 TPSM53603EVM Texas Instruments | 1 $58.8000 | DC/DC, Step Down | - | Buck | - | Fully Populated | 3A | 1, Non-Isolated | Board(s) | TPSM53603 | 3.8V ~ 36V | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 5,004 | |
 TPS62840-1DLCEVM55 Texas Instruments | 1 $58.8000 | DC/DC, Step Down | - | Buck | - | Fully Populated | 750mA | 1, Non-Isolated | Board(s) | TPS6284x | 1.8V ~ 6.5V | - | 2,389 | |
 TPSM5601R5HSEVM Texas Instruments | 1 $58.8000 | DC/DC, Step Down | 18 W | Buck | 1MHz | Fully Populated | 1.5A | 1, Non-Isolated | Board(s) | TPSM5601R5HS | 4.2V ~ 60V | 1V ~ 16V | 4,932 | |
 TPS61021EVM-723 Texas Instruments | 1 $58.8000 | DC/DC, Step Up | - | Boost | 2MHz | Fully Populated | 2.3A | 1, Non-Isolated | Board(s) | TPS61021 | 0.9V ~ 3.2V | 3.3V | 7,496 | |

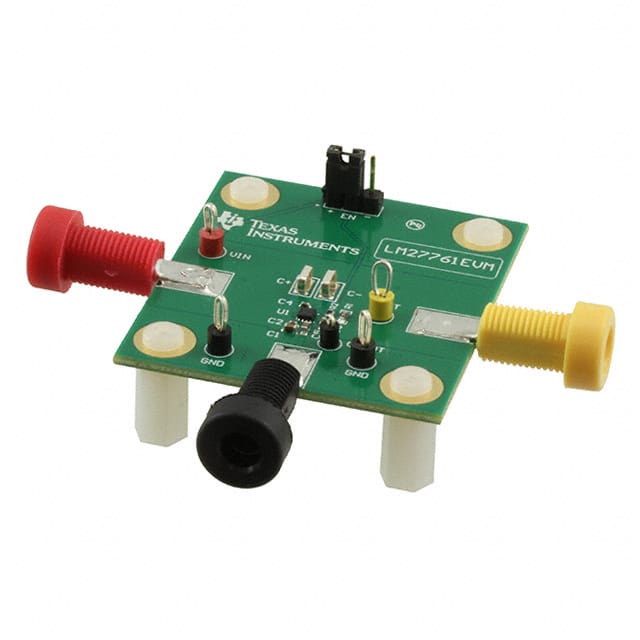

 LM27761EVM Texas Instruments | 1 $58.8000 | DC/DC, Negative Inverter | - | Inverting | 2MHz | Fully Populated | 250mA | 1, Non-Isolated | Board(s) | LM27761 | 2.7V ~ 5.5V | - | 3,684 | |
 LMR33630ARNXEVM Texas Instruments | 1 $58.8000 | DC/DC, Step Down | - | Buck | 400kHz | Fully Populated | 3A | 1, Non-Isolated | Board(s) | LMR33630 | 5V ~ 36V | 3.3V or 5V | 3,933 | |

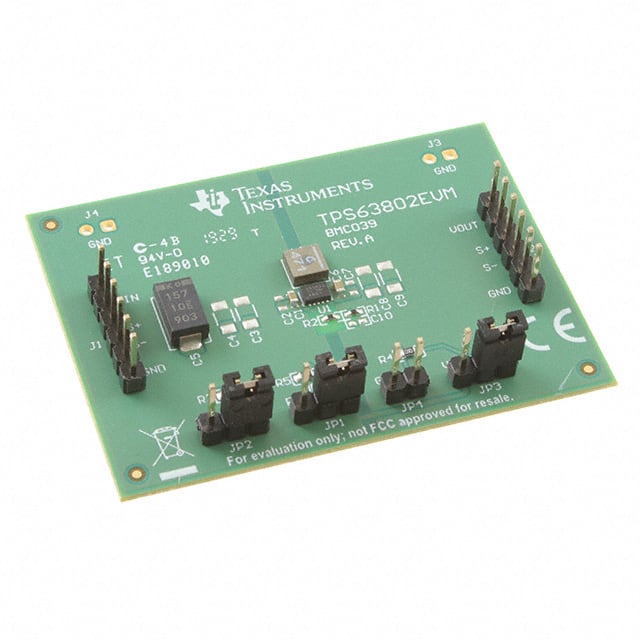

 TPS63802EVM Texas Instruments | 1 $58.8000 | DC/DC, Step Up or Down | - | Buck-Boost | 2.1MHz | Fully Populated | 2A | 1, Non-Isolated | Board(s) | TPS63802 | 1.3V ~ 5.5V | 1.8V ~ 5V | 7,614 | |

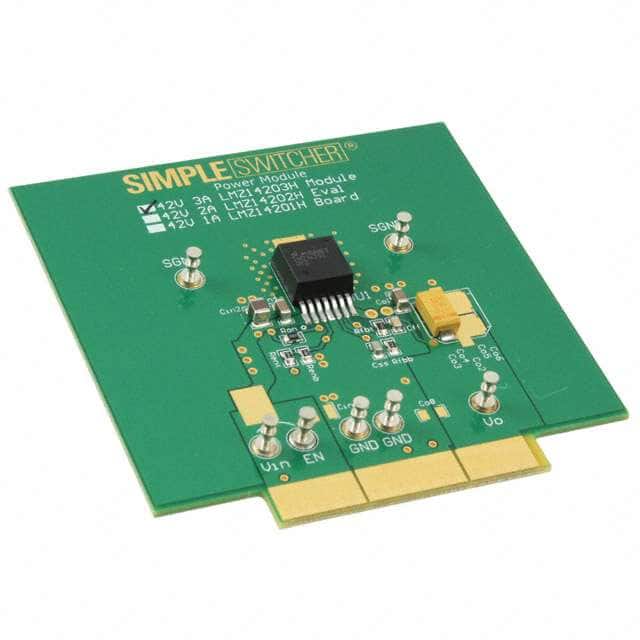

 LMZ14203HEVAL/NOPB Texas Instruments | 1 $58.8000 | DC/DC, Step Down | - | Buck | Up to 1MHz | Fully Populated | 3A | 1, Non-Isolated | Board(s) | LMZ14203H | 15V ~ 42V | 12V | 7,272 | |

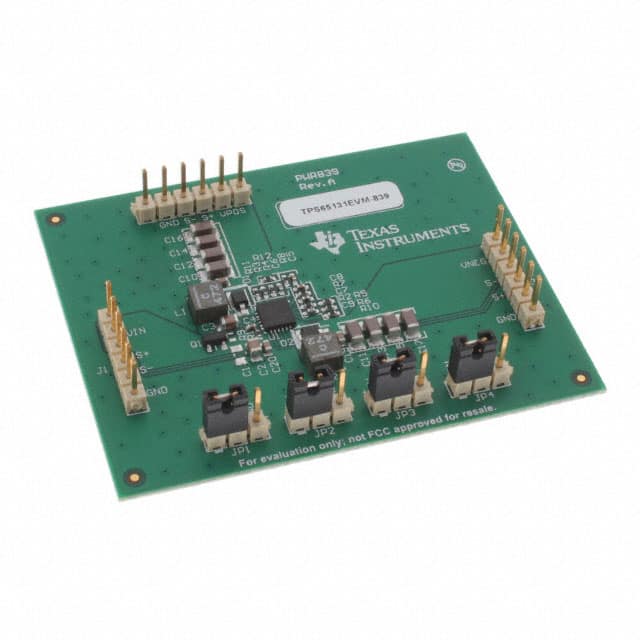

 TPS65131EVM-839 Texas Instruments | 1 $58.8000 | DC/DC, Positive and Negative | - | Boost | - | Fully Populated | 400mA, 200mA | 2, Non-Isolated | Board(s) | TPS65131 | 3V ~ 3.6V | 12V, -12V | 3,518 | |

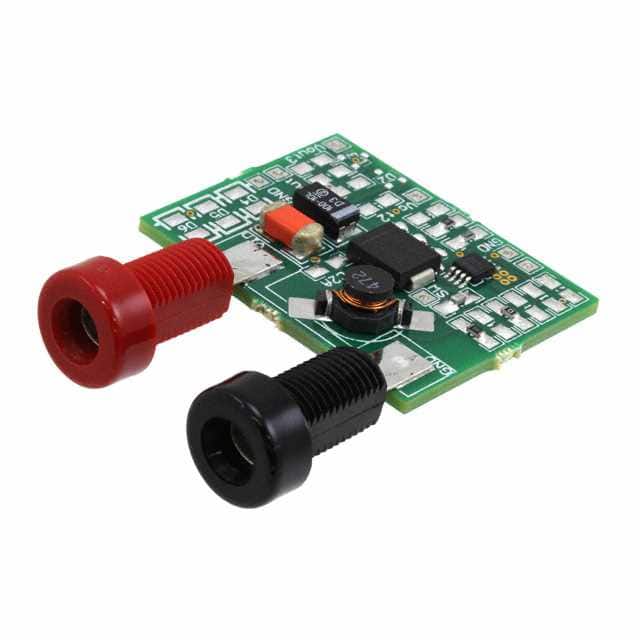

 LM2623EV/NOPB Texas Instruments | 1 $58.8000 | DC/DC, Step Up | - | Boost | Up to 2MHz | Fully Populated | 2A | 1, Non-Isolated | Board(s) | LM2623 | 2.3V ~ 5.5V | 5V | 3,774 | |

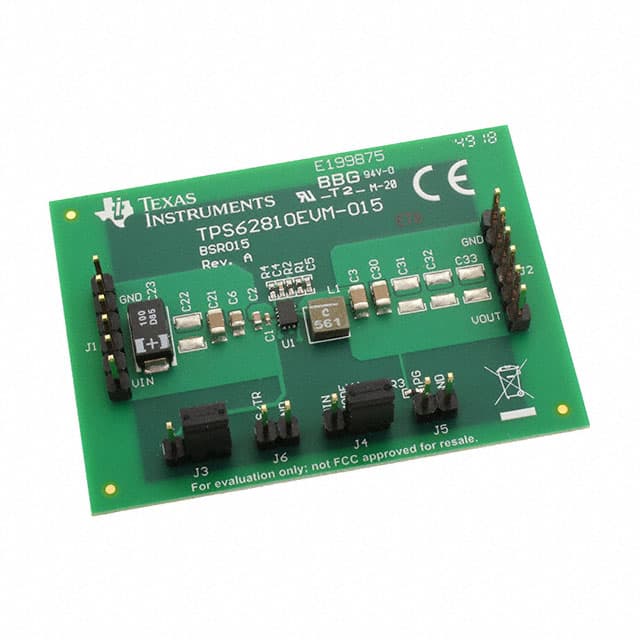

 TPS62810EVM-015 Texas Instruments | 1 $58.8000 | DC/DC, Step Down | - | Buck | - | Fully Populated | 4A | 1, Non-Isolated | Board(s) | TPS6281x | 2.7V ~ 6V | 1.8V | 7,315 | |

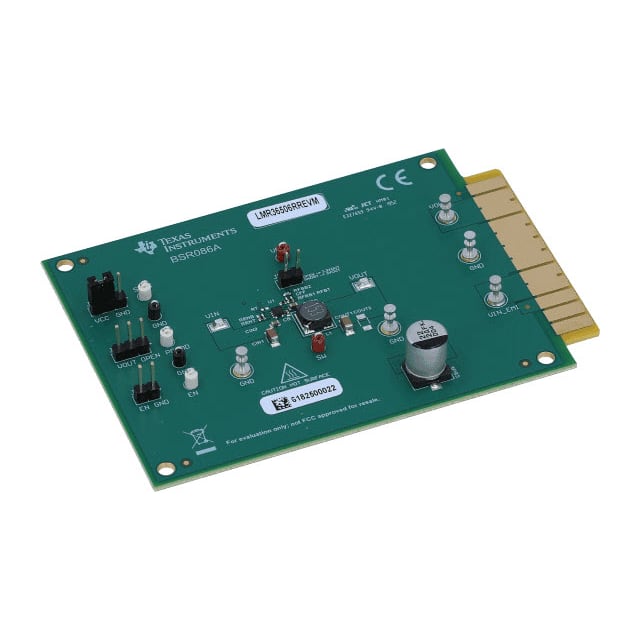

 LMR36506RREVM Texas Instruments | 1 $58.8000 | DC/DC, Step Down | - | Buck | 1MHz | Fully Populated | 600mA | 1, Non-Isolated | Board(s) | LMR36506 | 5.5V ~ 65V | 3.3V | 6,253 | |

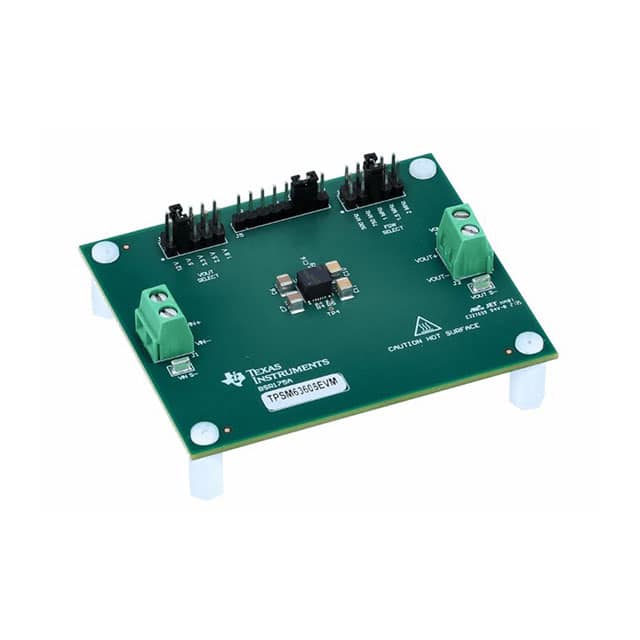

 TPSM63606EVM Texas Instruments | 1 $58.8000 | DC/DC, Step Down | - | Buck | 1MHz | Fully Populated | 6A | 1, Non-Isolated | Board(s) | TPSM63606 | 3V ~ 36V | 1V ~ 16V | 8,322 | |

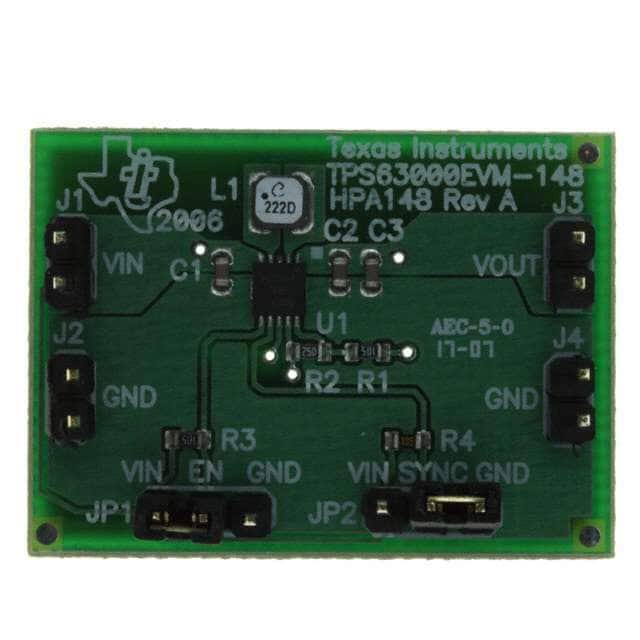

 TPS63000EVM-148 Texas Instruments | 1 $58.8000 | DC/DC, Step Up or Down | - | Buck-Boost | 1MHz | Fully Populated | 1A | 1, Non-Isolated | Board(s) | TPS63000 | 3V ~ 5.5V | 3.3V | 3,851 | |

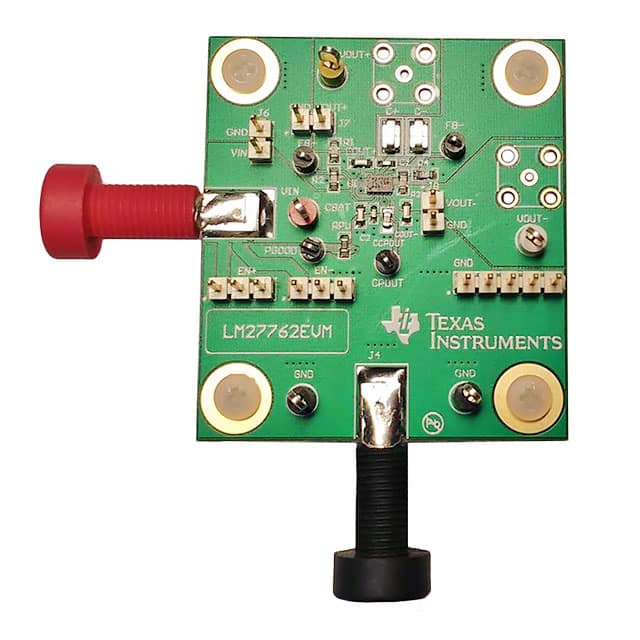

 LM27762EVM Texas Instruments | 1 $58.8000 | DC/DC, Step Up or Down with LDO | - | Inverting | 2MHz | Fully Populated | 250mA, 250mA | 2, Non-Isolated | Board(s) | LM27762 | 2.7V ~ 5.5V | ±1.8V ~ ±5.2V | 2,291 |
