Evaluation Boards - Analog to Digital Converters (ADCs)
Analog-to-Digital Converter (ADCs) Evaluation Boards are populated circuit boards used to provide a working example of a specific ADC or device. The number of A/D converters on a given board ranges from 3 to 32, with sampling rates per second from 2.5 kHz to 26 GHz and input voltages ranging from 0 to 8 Vp-p.
Product List
Total Components: 42
| Product | Pricing | Datasheet | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Supplied Contents | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
 EVAL-AD4115SDZ ADI (Analog Devices, Inc.) | 1 $105.9200 | Datasheet | 1 | 24 | 125k | Serial, SPI | ±10V | 52mW @ 125kSPS | AD4115 | Board(s) | 9,420 Cart + RFQ |
 DC1564A-A ADI (Analog Devices, Inc.) | 1 $235.4000 | Datasheet | 2 | 14 | 250M | Parallel, Serial, SPI | 1.5Vpp | 706mW @ 250MSPS | LTC2157-14 | Board(s) | 3,660 Cart + RFQ |
 AD9694-500EBZ ADI (Analog Devices, Inc.) | 1 $1.0000 | Datasheet | 4 | 14 | 500M | JESD204B, Serial | 1.8Vpp | 1.66W @ 500MSPS | AD9694 | Board(s) | 5,221 Cart + RFQ |
 AD-FMCADC3-EBZ ADI (Analog Devices, Inc.) | 1 $1.0000 | Datasheet | 1 | 12 | 2.5G | Serial JESD204B, SPI™ | 1Vpp | 3.9W @ 2.5GSPS | AD9625 | Board(s) | 3,274 Cart + RFQ |
 AD9689-2600EBZ ADI (Analog Devices, Inc.) | 1 $2.0000 | Datasheet | 2 | 14 | 2.6G | JESD204B, Serial | 1.1 ~ 2Vpp | 1.55W @ 2.6GSPS | AD9689 | Board(s) | 3,410 Cart + RFQ |
 AD9467-FMC-250EBZ ADI (Analog Devices, Inc.) | 1 $490.2800 | Datasheet | 1 | 16 | 250M | SPI | 2.5Vpp | - | AD9467-250 | Board(s) | 7,810 Cart + RFQ |
 EVAL-AD7124-8SDZ ADI (Analog Devices, Inc.) | 1 $71.0200 | Datasheet | 1 | 24 | 19.2k | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF/gain | - | AD7124-8 | Board(s) | 5,358 Cart + RFQ |
 EVAL-AD7124-4SDZ ADI (Analog Devices, Inc.) | 1 $71.0200 | Datasheet | 1 | 24 | 19.2k | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF/gain | - | AD7124-4 | Board(s) | 2,362 Cart + RFQ |
 EVAL-AD7616SDZ ADI (Analog Devices, Inc.) | 1 $74.9800 | Datasheet | 2 | 16 | 1M | SPI, Parallel, DSP | ±10V | 230mW @ 1MSPS | AD7616 | Board(s), Power Supply | 3,737 Cart + RFQ |
 EVAL-AD7606BFMCZ ADI (Analog Devices, Inc.) | 1 $78.6500 | Datasheet | 1 | 16 | 800k | Parallel, Serial | ±10V | 230mW @ 800kSPS | AD7606B | Board(s) | 1,600 Cart + RFQ |
 EVAL-AD4111SDZ ADI (Analog Devices, Inc.) | 1 $105.9200 | Datasheet | 1 | 24 | 31.25k | Serial, SPI | ±10V | - | AD4111 | Board(s) | 4,788 Cart + RFQ |
 EVAL-AD7771FMCZ ADI (Analog Devices, Inc.) | 1 $119.1800 | Datasheet | 8 | 24 | 128k | SPI | 0 ~ 2.5V | - | AD7770, AD7771, AD7779 | Board(s) | 9,139 Cart + RFQ |
 EVAL-AD7134FMCZ ADI (Analog Devices, Inc.) | 1 $165.5100 | Datasheet | 4 | 24 | 1.5M | - | ±VREF | - | AD7134 | Board(s) | 6,724 Cart + RFQ |
 DC2290A-A ADI (Analog Devices, Inc.) | 1 $235.4000 | Datasheet | 1 | 18 | 15M | LVDS - Serial | - | 125mW @ 15MSPS | LTC2387-18 | Board(s) | 2,428 Cart + RFQ |
 DC2289A-A ADI (Analog Devices, Inc.) | 1 $235.4000 | Datasheet | 1 | 24 | 2M | SPI | ±VREF | 28mW @ 2MSPS | LTC2380-24 | Board(s), Cable(s) | 2,229 Cart + RFQ |
 AD9684-500EBZ ADI (Analog Devices, Inc.) | 1 $1.0000 | Datasheet | 2 | 14 | 500M | LVDS - Parallel, SPI | 2.06Vpp | 2.2W @ 500MSPS | AD9684 | Board(s) | 1,161 Cart + RFQ |

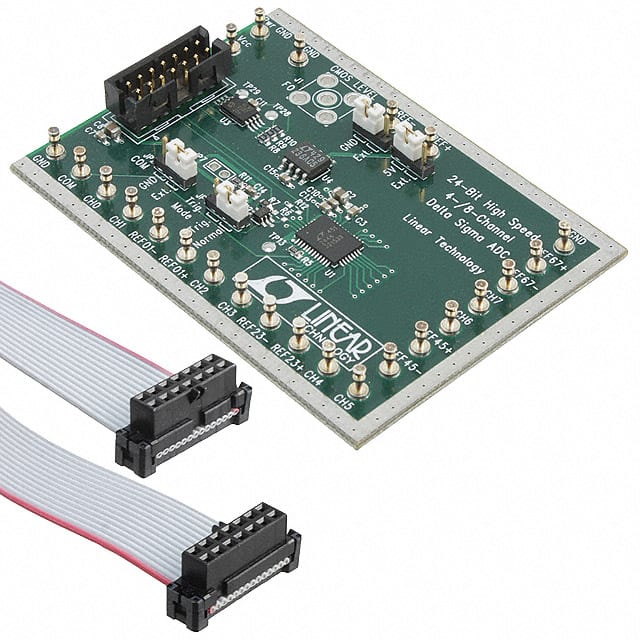

 DC847A ADI (Analog Devices, Inc.) | 1 $58.8500 | Datasheet | 1 | 24 | 8k | MICROWIRE™, Serial, SPI™ | - | - | LTC2446 | Board(s) | 1,282 Cart + RFQ |

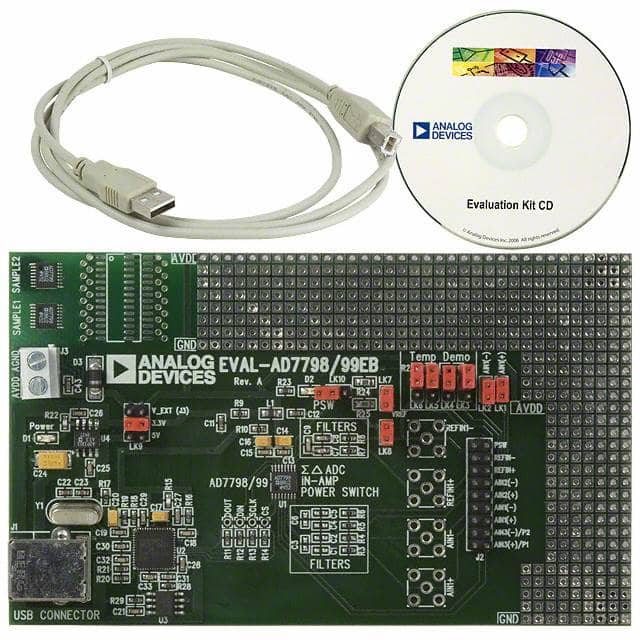

 EVAL-AD7799EBZ ADI (Analog Devices, Inc.) | 1 $70.1100 | Datasheet | 1 | 24 | 470 | Serial | ±VREF/gain | 2.5mW @ 470SPS | AD7799 | Board(s), Cable(s) | 1,257 Cart + RFQ |

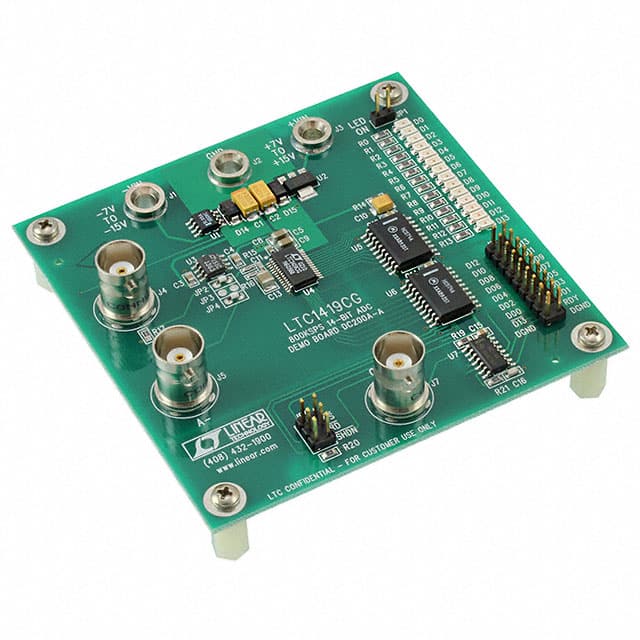

 DC200A-A ADI (Analog Devices, Inc.) | 1 $76.9100 | Datasheet | 1 | 14 | 800k | Parallel | ±2.5V | 150mW @ 800kSPS | LTC1419 | Board(s) | 5,855 Cart + RFQ |

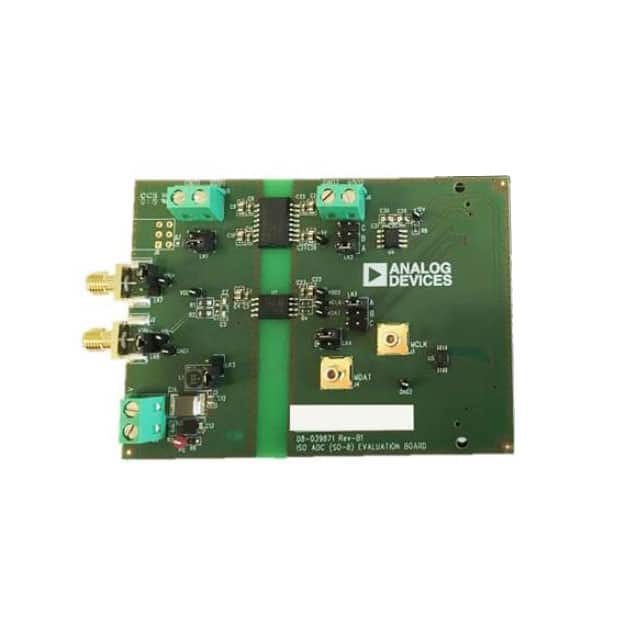

 EV-ADUM7703-8FMCZ ADI (Analog Devices, Inc.) | 1 $110.3500 | Datasheet | 1 | 16 | - | Serial | ±320mV | - | ADuM7703 | Board(s) | 4,302 Cart + RFQ |
