Pin Configurable/Selectable Oscillators
Products in the pin configurable/selectable oscillator family are used as references for time or frequency measurement, and incorporate both a reference element and the support components needed for its operation. They are distinguished from other similar oscillator products by incorporation of a selectable output functionality, allowing the output frequency generated by the device to be changed by application of a logic signal to one or more additional input pins present on the device.
Sourcing Connor Winfield Pin Configurable/Selectable Oscillators: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 4
| Product | Pricing | Datasheet | Frequency - Output 1 | Frequency - Output 2 | Frequency - Output 3 | Frequency - Output 4 | Operating Temperature | Size / Dimension | Type | Base Resonator | Frequency Stability | Current - Supply (Max) | Function | Height | Output | Package / Case | Ratings | Voltage - Supply | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

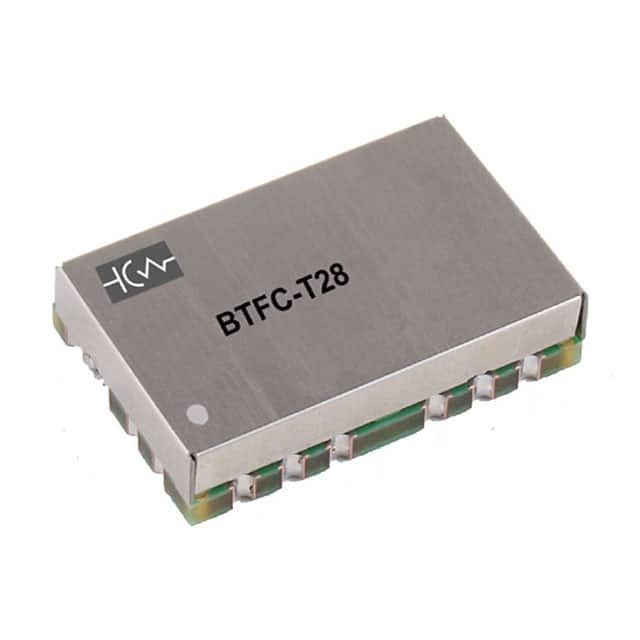

 BTFC-T28-523SC-010.0M-010.0M Connor Winfield | 1 $63.0000 | 100MHz | 10MHz | - | - | -40°C ~ 85°C | 0.825" L x 0.545" W (20.95mm x 13.84mm) | TCXO | Crystal | ±280ppb | 270mA | - | 0.220" (5.59mm) | CMOS, Sine Wave | 16-SMD Module | - | 3.3V | 2,078 | |
 BTFC-T28-523SC-100.0M-010.0M Connor Winfield | 1 $91.0000 | 10MHz | 100MHz | - | - | 0°C ~ 70°C | 0.825" L x 0.545" W (20.95mm x 13.84mm) | TCXO | Crystal | ±280ppb | 270mA | - | 0.220" (5.59mm) | CMOS, Sine Wave | 16-SMD Module | - | 3.3V | 4,543 | |
 EH320-TFC-CC-DK1-010.0M Connor Winfield | 1 $226.8800 | 10MHz | 10MHz | 10MHz | 5MHz | 0°C ~ 70°C | 1.000" L x 0.866" W (25.40mm x 22.00mm) | OCXO | Crystal | ±5ppb | - | - | 0.567" (14.40mm) | LVCMOS, Sine Wave | 16-SMD Module | - | 3.3V | 6,480 | |

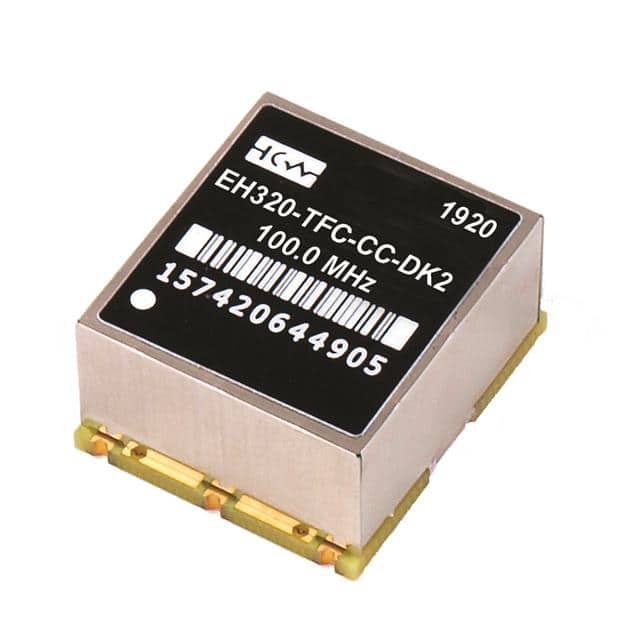

 EH320-TFC-CC-DK2-100.0M Connor Winfield | 1 $226.8800 | 100MHz | 10MHz | 10MHz | 25MHz | 0°C ~ 70°C | 1.000" L x 0.866" W (25.40mm x 22.00mm) | OCXO | Crystal | ±5ppb | - | - | 0.567" (14.40mm) | LVCMOS, LVDS, Sine Wave | 16-SMD Module | - | 3.3V | 1,923 |
