Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
Sourcing CTS Corporation Crystals: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 14,991
| Product | Pricing | Datasheet | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Mounting Type | Operating Temperature | Size / Dimension | Type | Frequency Stability | Frequency Tolerance | Frequency | Height - Seated (Max) | Package / Case | Ratings | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 402F30011CAT CTS Corporation | 10pF | 80 Ohms | Fundamental | Surface Mount | -20°C ~ 70°C | 0.079" L x 0.063" W (2.00mm x 1.60mm) | MHz Crystal | ±10ppm | ±10ppm | 30 MHz | 0.022" (0.55mm) | 4-SMD, No Lead | - | 1,937 | ||
402F20012IAT CTS Corporation | 10pF | 100 Ohms | Fundamental | Surface Mount | -40°C ~ 85°C | 0.079" L x 0.063" W (2.00mm x 1.60mm) | MHz Crystal | ±20ppm | ±10ppm | 20 MHz | 0.022" (0.55mm) | 4-SMD, No Lead | - | 9,476 | ||
416F24025CLT CTS Corporation | 12pF | 120 Ohms | Fundamental | Surface Mount | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±50ppm | ±20ppm | 24 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 8,064 | ||
416F26033CDT CTS Corporation | 18pF | 120 Ohms | Fundamental | Surface Mount | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±30ppm | ±30ppm | 26 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 2,325 | ||
416F270X3CTT CTS Corporation | 6pF | 120 Ohms | Fundamental | Surface Mount | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±30ppm | ±15ppm | 27 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 4,436 | ||
416F30013CLT CTS Corporation | 12pF | 80 Ohms | Fundamental | Surface Mount | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±30ppm | ±10ppm | 30 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 7,937 | ||
416F32025ADT CTS Corporation | 18pF | 80 Ohms | Fundamental | Surface Mount | -10°C ~ 60°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±50ppm | ±20ppm | 32 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 7,497 | ||
416F3601XCDT CTS Corporation | 18pF | 80 Ohms | Fundamental | Surface Mount | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±15ppm | ±10ppm | 36 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 6,353 | ||
416F37025ITT CTS Corporation | 6pF | 60 Ohms | Fundamental | Surface Mount | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±50ppm | ±20ppm | 37 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 2,265 | ||
416F374X3ALT CTS Corporation | 12pF | 60 Ohms | Fundamental | Surface Mount | -10°C ~ 60°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±30ppm | ±15ppm | 37.4 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 5,359 | ||
416F38413ADT CTS Corporation | 18pF | 60 Ohms | Fundamental | Surface Mount | -10°C ~ 60°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±30ppm | ±10ppm | 38.4 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 3,113 | ||
416F384XXADT CTS Corporation | 18pF | 60 Ohms | Fundamental | Surface Mount | -10°C ~ 60°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±15ppm | ±15ppm | 38.4 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 1,538 | ||
416F40613ITT CTS Corporation | 6pF | 60 Ohms | Fundamental | Surface Mount | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±30ppm | ±10ppm | 40.61 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 4,333 | ||
416F44025CLT CTS Corporation | 12pF | 60 Ohms | Fundamental | Surface Mount | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±50ppm | ±20ppm | 44 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 4,044 | ||
416F480X2IDT CTS Corporation | 18pF | 60 Ohms | Fundamental | Surface Mount | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±20ppm | ±15ppm | 48 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 6,314 | ||
416F520X3CTT CTS Corporation | 6pF | 60 Ohms | Fundamental | Surface Mount | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) | MHz Crystal | ±30ppm | ±15ppm | 52 MHz | 0.018" (0.45mm) | 4-SMD, No Lead | - | 1,817 | ||
TFA322VH327KR CTS Corporation | 1 $0.7210 | 7pF | 70 kOhms | Fundamental | Surface Mount | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) | kHz Crystal (Tuning Fork) | - | ±20ppm | 32.768 kHz | 0.035" (0.90mm) | 2-SMD, No Lead | AEC-Q200 | 6,214 | |

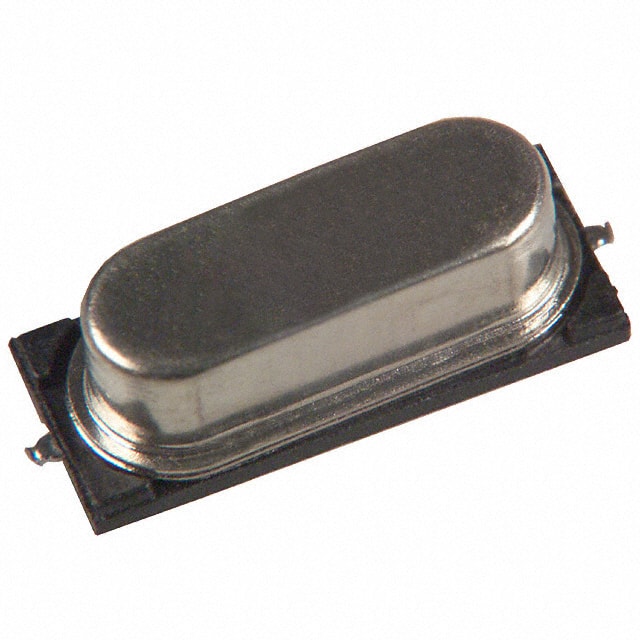

ATS22ASM-1E CTS Corporation | 1 $0.3700 | 20pF | 30 Ohms | Fundamental | Surface Mount | -40°C ~ 85°C | 0.437" L x 0.190" W (11.10mm x 4.83mm) | MHz Crystal | ±50ppm | ±30ppm | 22.1184 MHz | 0.169" (4.30mm) | HC-49/US | - | 5,871 | |
ATS042ASM-1E CTS Corporation | 1 $0.1972 | 20pF | 120 Ohms | Fundamental | Surface Mount | -40°C ~ 85°C | 0.437" L x 0.190" W (11.10mm x 4.83mm) | MHz Crystal | ±50ppm | ±30ppm | 4.096 MHz | 0.169" (4.30mm) | HC-49/US | - | 3,884 | |
LP120F33CDT CTS Corporation | 1 $0.2489 | 18pF | 40 Ohms | Fundamental | Surface Mount | -20°C ~ 70°C | 0.437" L x 0.190" W (11.10mm x 4.83mm) | MHz Crystal | ±30ppm | ±30ppm | 12 MHz | 0.126" (3.20mm) | HC-49/US | - | 9,724 |
