Connectors, Interconnects
Connector and interconnect products facilitate the joining of electrical or fiber optic conductors & cables. An enormous variety of styles are available, to accommodate most any application; banana plugs for lab equipment, coaxial connectors for RF, modular plugs for network and phone systems, spade and ring terminals for connecting discrete wires to terminal blocks, terminal blocks, sockets for transistors and integrated circuits, standard AC power connectors, headphone plugs and jacks, high-voltage connectors, USB connectors, and many, many more.
Sourcing TE Connectivity AMP Connectors Connectors, Interconnects: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 7
| Product | Pricing | Datasheet | Tail Type | Accepts Pin Diameter | Accepts Square Pin Size | Pin Hole Diameter | Tail Diameter | Socket Depth | Flange Diameter | Length - Overall | Mounting Hole Diameter | Contact Finish | Contact Finish Thickness | Contact Material | Termination | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 2-5330808-7 TE Connectivity AMP Connectors | 1 $0.7000 | No Tail | 0.013" ~ 0.020" (0.33mm ~ 0.51mm) | - | - | - | 0.130" (3.30mm) | 0.059" (1.50mm) | 0.142" (3.61mm) | 0.040" ~ 0.041" (1.02mm ~ 1.04mm) | Tin | 100.0µin (2.54µm) | Beryllium Copper | Solder | 6,446 | |

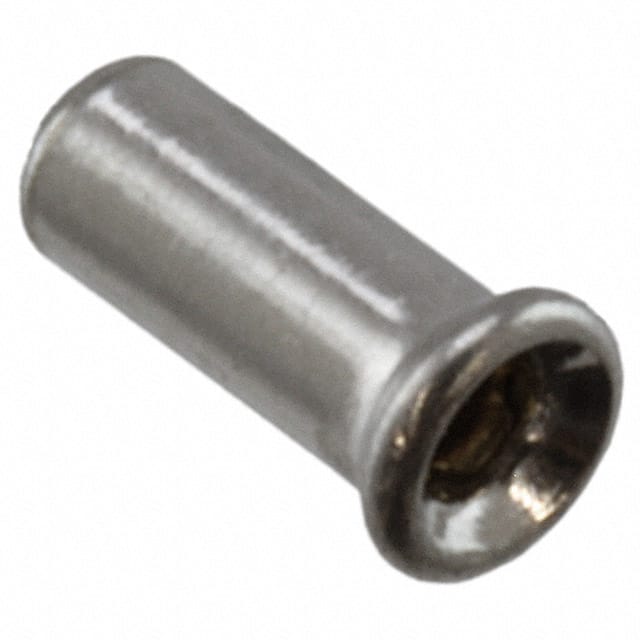

 2-5331272-7 TE Connectivity AMP Connectors | 1 $0.7700 | No Tail | 0.022" ~ 0.025" (0.56mm ~ 0.64mm) | - | - | - | 0.125" (3.18mm) | 0.070" (1.77mm) | 0.138" (3.51mm) | 0.052" (1.32mm) | Gold | 30.0µin (0.76µm) | Beryllium Copper | Solder | 1,835 | |

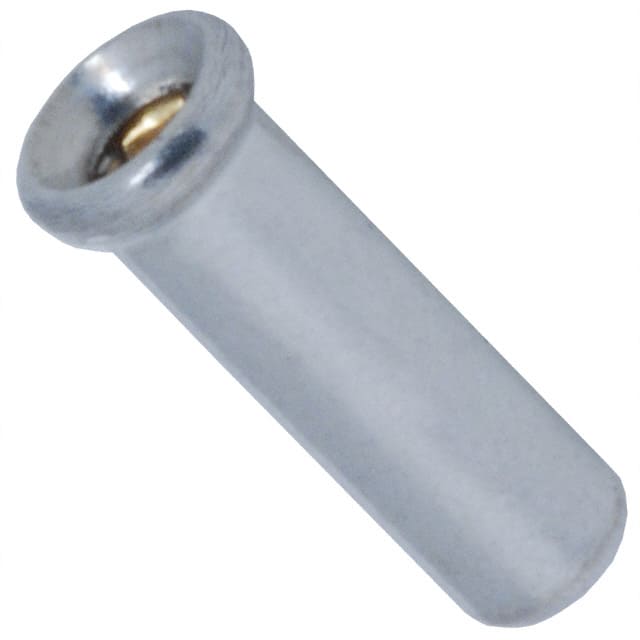

 5050462-2 TE Connectivity AMP Connectors | 1 $0.8400 | No Tail | 0.014" ~ 0.026" (0.36mm ~ 0.66mm) | - | - | - | 0.165" (4.19mm) | 0.070" (1.77mm) | 0.178" (4.52mm) | 0.052" (1.32mm) | Gold | 30.0µin (0.76µm) | Beryllium Copper | Solder | 4,983 | |
 5380598-2 TE Connectivity AMP Connectors | 1 $0.9300 | No Tail | 0.018" ~ 0.040" (0.46mm ~ 1.02mm) | - | 0.048" (1.22mm) | - | 0.145" (3.68mm) | 0.125" (3.18mm) | 0.262" (6.65mm) | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) | Gold | 30.0µin (0.76µm) | Beryllium Copper | Solder | 3,794 | |
 50935-6 TE Connectivity AMP Connectors | 1 $0.9400 | No Tail | 0.013" ~ 0.020" (0.33mm ~ 0.51mm) | - | - | - | 0.155" (3.94mm) | 0.059" (1.50mm) | 0.168" (4.27mm) | 0.040" ~ 0.041" (1.02mm ~ 1.04mm) | Gold | 30.0µin (0.76µm) | Beryllium Copper | Solder | 7,424 | |
3-331272-8 TE Connectivity AMP Connectors | 1 $1.1000 | No Tail | 0.018" ~ 0.021" (0.46mm ~ 0.53mm) | - | - | - | 0.125" (3.18mm) | 0.070" (1.77mm) | 0.138" (3.51mm) | 0.052" (1.32mm) | Gold | 30.0µin (0.76µm) | Beryllium Copper | Solder | 3,463 | |
 5-5330808-6 TE Connectivity AMP Connectors | 1 $1.1900 | No Tail | 0.013" ~ 0.020" (0.33mm ~ 0.51mm) | - | - | - | 0.130" (3.30mm) | 0.059" (1.50mm) | 0.142" (3.61mm) | 0.040" ~ 0.041" (1.02mm ~ 1.04mm) | Gold | 30.0µin (0.76µm) | Beryllium Copper | Solder | 1,747 |
