Connectors, Interconnects
Connector and interconnect products facilitate the joining of electrical or fiber optic conductors & cables. An enormous variety of styles are available, to accommodate most any application; banana plugs for lab equipment, coaxial connectors for RF, modular plugs for network and phone systems, spade and ring terminals for connecting discrete wires to terminal blocks, terminal blocks, sockets for transistors and integrated circuits, standard AC power connectors, headphone plugs and jacks, high-voltage connectors, USB connectors, and many, many more.
Sourcing TE Connectivity AMP Connectors Connectors, Interconnects: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 9
| Product | Pricing | Datasheet | Shrouding | Contact Length - Mating | Overall Contact Length | Contact Shape | Contact Material | Insulation Material | Contact Finish Thickness - Mating | Contact Length - Post | Insulation Height | Row Spacing - Mating | Connector Type | Contact Finish - Mating | Contact Finish - Post | Contact Type | Current Rating (Amps) | Fastening Type | Features | Ingress Protection | Insulation Color | Material Flammability Rating | Mounting Type | Number of Positions | Number of Positions Loaded | Number of Rows | Operating Temperature | Pitch - Mating | Style | Termination | Voltage Rating | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 640445-2 TE Connectivity AMP Connectors | 1 $0.1800 | Shrouded - 1 Wall | 0.400" (10.16mm) | 0.650" (16.51mm) | Square | Copper Alloy | Thermoplastic, Glass Filled | - | 0.125" (3.18mm) | 0.425" (10.80mm) | - | Header | Tin | Tin | Male Pin | Varies by Wire Gauge | Friction Lock | - | - | Natural | UL94 V-0 | Through Hole | 2 | All | 1 | -55°C ~ 105°C | 0.156" (3.96mm) | Board to Cable/Wire | Solder | 600VAC | 6,547 | |
 640456-2 TE Connectivity AMP Connectors | 1 $0.1800 | Shrouded - 1 Wall | 0.295" (7.49mm) | 0.535" (13.59mm) | Square | Copper Alloy | Thermoplastic | - | 0.140" (3.56mm) | 0.305" (7.75mm) | - | Header | Tin | Tin | Male Pin | Varies by Wire Gauge | Friction Lock | - | - | Natural | UL94 V-0 | Through Hole | 2 | All | 1 | -55°C ~ 105°C | 0.100" (2.54mm) | Board to Cable/Wire | Solder | 250VAC | 2,471 | |

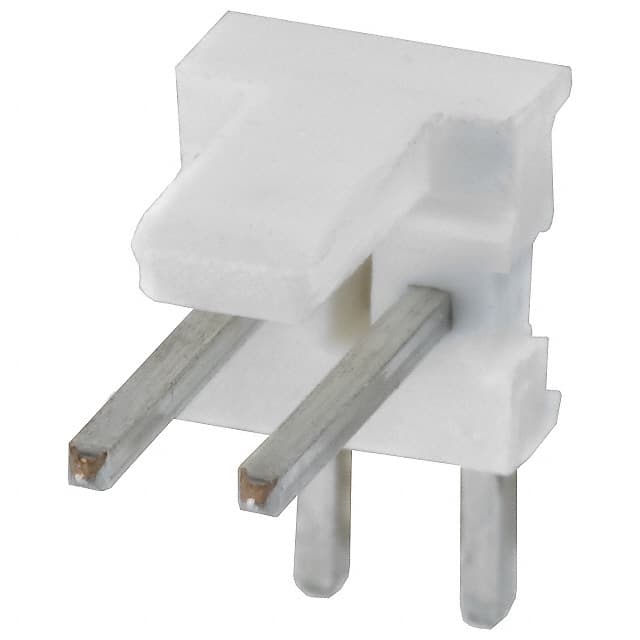

 640457-2 TE Connectivity AMP Connectors | 1 $0.2000 | Shrouded - 1 Wall | 0.295" (7.49mm) | - | Square | Copper Alloy | Thermoplastic | - | 0.140" (3.56mm) | 0.225" (5.72mm) | - | Header | Tin | Tin | Male Pin | Varies by Wire Gauge | Friction Lock | - | - | Natural | UL94 V-0 | Through Hole, Right Angle | 2 | All | 1 | -55°C ~ 105°C | 0.100" (2.54mm) | Board to Cable/Wire | Solder | 250VAC | 1,593 | |
 640456-3 TE Connectivity AMP Connectors | 1 $0.1470 100 $0.1176 500 $0.0980 | Shrouded - 1 Wall | 0.295" (7.49mm) | 0.535" (13.59mm) | Square | Copper Alloy | Thermoplastic | - | 0.140" (3.56mm) | 0.305" (7.75mm) | - | Header | Tin | Tin | Male Pin | Varies by Wire Gauge | Friction Lock | - | - | Natural | UL94 V-0 | Through Hole | 3 | All | 1 | -55°C ~ 105°C | 0.100" (2.54mm) | Board to Cable/Wire | Solder | 250VAC | 200 | |
 1-1123723-2 TE Connectivity AMP Connectors | 1 $0.2600 | Shrouded - 1 Wall | 0.303" (7.70mm) | 0.567" (14.40mm) | Square | Brass | Polybutylene Terephthalate (PBT), Glass Filled | - | 0.146" (3.70mm) | 0.118" (3.00mm) | - | Header | Tin | Tin | Male Pin | 7.5A | Friction Lock | - | - | Natural | UL94 V-0 | Through Hole | 2 | All | 1 | -25°C ~ 105°C | 0.156" (3.96mm) | Board to Cable/Wire | Solder | 250VAC | 5,498 | |

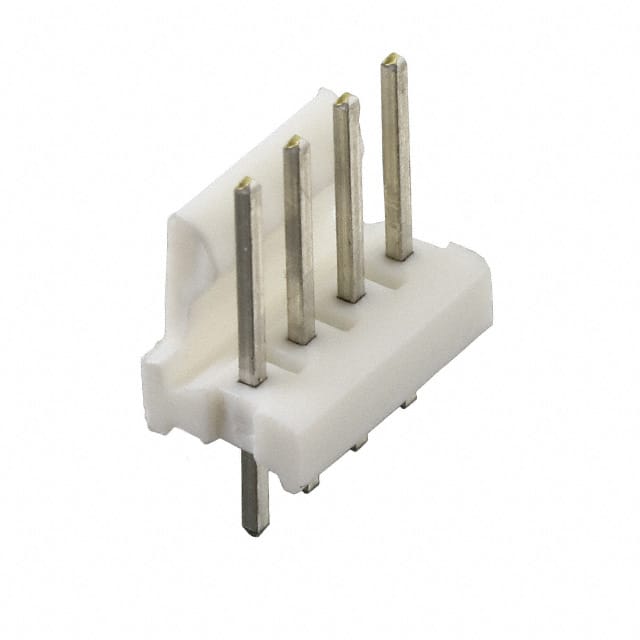

 640456-4 TE Connectivity AMP Connectors | 1 $0.2800 | Shrouded - 1 Wall | 0.295" (7.49mm) | 0.535" (13.59mm) | Square | Copper Alloy | Thermoplastic | - | 0.140" (3.56mm) | 0.305" (7.75mm) | - | Header | Tin | Tin | Male Pin | Varies by Wire Gauge | Friction Lock | - | - | Natural | UL94 V-0 | Through Hole | 4 | All | 1 | -55°C ~ 105°C | 0.100" (2.54mm) | Board to Cable/Wire | Solder | 250VAC | 5,850 | |
 640445-3 TE Connectivity AMP Connectors | 1 $0.2800 | Shrouded - 1 Wall | 0.400" (10.16mm) | 0.650" (16.51mm) | Square | Copper Alloy | Thermoplastic, Glass Filled | - | 0.125" (3.18mm) | 0.425" (10.80mm) | - | Header | Tin | Tin | Male Pin | Varies by Wire Gauge | Friction Lock | - | - | Natural | UL94 V-0 | Through Hole | 3 | All | 1 | -55°C ~ 105°C | 0.156" (3.96mm) | Board to Cable/Wire | Solder | 600VAC | 5,149 | |
 640388-2 TE Connectivity AMP Connectors | 1 $0.2800 | Shrouded - 1 Wall | 0.400" (10.16mm) | 0.650" (16.51mm) | Circular | Copper Alloy | Thermoplastic, Glass Filled | - | 0.125" (3.18mm) | 0.425" (10.80mm) | - | Header | Tin | Tin | Male Pin | Varies by Wire Gauge | Friction Lock | - | - | Natural | UL94 V-0 | Through Hole | 2 | All | 1 | -55°C ~ 105°C | 0.156" (3.96mm) | Board to Cable/Wire | Solder | 600VAC | 7,524 | |
 440052-2 TE Connectivity AMP Connectors | 1 $0.3200 | Shrouded - 3 Wall | 0.136" (3.45mm) | 0.335" (8.51mm) | Square | Brass | Thermoplastic | 80.0µin (2.03µm) | 0.134" (3.40mm) | 0.236" (6.00mm) | - | Header | Tin | Tin | Male Pin | 3A | Friction Lock | - | - | Natural | UL94 V-0 | Through Hole | 2 | All | 1 | -25°C ~ 85°C | 0.098" (2.50mm) | Board to Cable/Wire | Press-Fit, Solder | 250V | 5,556 |
