Connectors, Interconnects

Connector and interconnect products facilitate the joining of electrical or fiber optic conductors & cables. An enormous variety of styles are available, to accommodate most any application; banana plugs for lab equipment, coaxial connectors for RF, modular plugs for network and phone systems, spade and ring terminals for connecting discrete wires to terminal blocks, terminal blocks, sockets for transistors and integrated circuits, standard AC power connectors, headphone plugs and jacks, high-voltage connectors, USB connectors, and many, many more.

Sourcing Molex Connectors, Interconnects: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.

BOM matching · Lead time · Authenticity · Brands

Product	Pricing	Datasheet	Shrouding	Contact Length - Mating	Overall Contact Length	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Contact Length - Post	Insulation Height	Row Spacing - Mating	Connector Type	Contact Finish - Mating	Contact Finish - Post	Contact Type	Current Rating (Amps)	Fastening Type	Features	Ingress Protection	Insulation Color	Material Flammability Rating	Mounting Type	Number of Positions	Number of Positions Loaded	Number of Rows	Operating Temperature	Pitch - Mating	Style	Termination	Voltage Rating	Stock & Quantity
0781710002 Molex	1 $0.4000	Datasheet	Shrouded - 3 Wall	-	-	Rectangular	Copper Alloy	Liquid Crystal Polymer (LCP)	-	-	0.055" (1.40mm)	-	Plug	Gold	-	Tab	-	Friction Lock	Solder Retention	-	Black	UL94 V-0	Surface Mount	2	All	1	-25°C ~ 85°C	0.047" (1.20mm)	Board to Cable/Wire	Solder	50V	6,780 Buy Now Get Quote
0781710003 Molex	1 $0.4400	Datasheet	Shrouded - 3 Wall	-	-	Rectangular	Copper Alloy	Liquid Crystal Polymer (LCP)	-	-	0.055" (1.40mm)	-	Plug	Gold	-	Tab	-	Friction Lock	Solder Retention	-	Black	UL94 V-0	Surface Mount	3	All	1	-25°C ~ 85°C	0.047" (1.20mm)	Board to Cable/Wire	Solder	50V	1,365 Buy Now Get Quote
0781710004 Molex	1 $0.4800	Datasheet	Shrouded - 3 Wall	-	-	Rectangular	Copper Alloy	Liquid Crystal Polymer (LCP)	-	-	0.055" (1.40mm)	-	Plug	Gold	-	Tab	-	Friction Lock	Solder Retention	-	Black	UL94 V-0	Surface Mount	4	All	1	-25°C ~ 85°C	0.047" (1.20mm)	Board to Cable/Wire	Solder	50V	8,569 Buy Now Get Quote
0781710005 Molex	1 $0.4500	Datasheet	Shrouded - 3 Wall	-	-	Rectangular	Copper Alloy	Liquid Crystal Polymer (LCP)	-	-	0.055" (1.40mm)	-	Plug	Gold	-	Tab	-	Friction Lock	Solder Retention	-	Black	UL94 V-0	Surface Mount	5	All	1	-25°C ~ 85°C	0.047" (1.20mm)	Board to Cable/Wire	Solder	50V	7,676 Buy Now Get Quote
0022232021 Molex	1 $0.2200	Datasheet	Shrouded - 1 Wall	0.295" (7.49mm)	0.560" (14.22mm)	Square	Brass	Polyamide (PA), Nylon	100.0µin (2.54µm)	0.140" (3.56mm)	0.322" (8.18mm)	-	Header	Tin	Tin	Male Pin	-	Friction Lock	-	-	White	UL94 V-0	Through Hole	2	All	1	-	0.100" (2.54mm)	Board to Board or Cable	Solder	-	6,383 Buy Now Get Quote
0530470210 Molex	1 $0.2300	Datasheet	Shrouded - 4 Wall	0.089" (2.25mm)	-	Rectangular	Phosphor Bronze	Polyamide (PA66), Nylon 6/6	35.4µin (0.90µm)	0.091" (2.30mm)	0.165" (4.20mm)	-	Header	Tin	Tin	Male Blade	-	Detent Lock	-	-	Natural	UL94 V-0	Through Hole	2	All	1	-	0.049" (1.25mm)	Board to Cable/Wire	Solder	-	7,198 Buy Now Get Quote

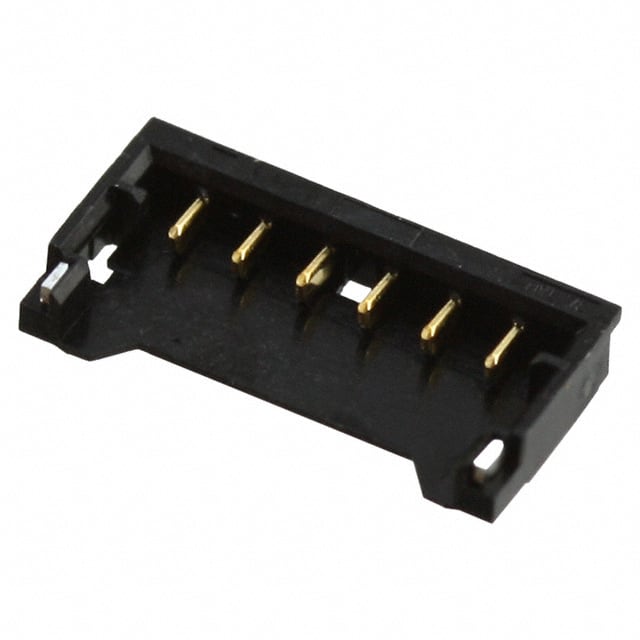

0781715006 Molex	1 $0.3323 100 $0.2658 500 $0.2215	Datasheet	Shrouded - 3 Wall	-	-	Rectangular	Copper Alloy	Polyamide (PA46), Nylon 4/6	-	-	0.055" (1.40mm)	-	Plug	Gold	-	Tab	-	Friction Lock	Solder Retention	-	Black	UL94 V-0	Surface Mount	6	All	1	-25°C ~ 85°C	0.047" (1.20mm)	Board to Cable/Wire	Solder	50V	3,150 Buy Now Get Quote
0022035035 Molex	1 $0.2700	Datasheet	Shrouded - 4 Wall	0.138" (3.50mm)	0.350" (8.89mm)	Circular	Brass	Polyamide (PA66), Nylon 6/6, Glass Filled	-	0.138" (3.50mm)	0.232" (5.90mm)	-	Header	Tin	Tin	Male Pin	-	Detent Lock	-	-	-	UL94 V-0	Through Hole	3	All	1	-	0.098" (2.50mm)	Board to Cable/Wire	Solder	-	7,188 Buy Now Get Quote

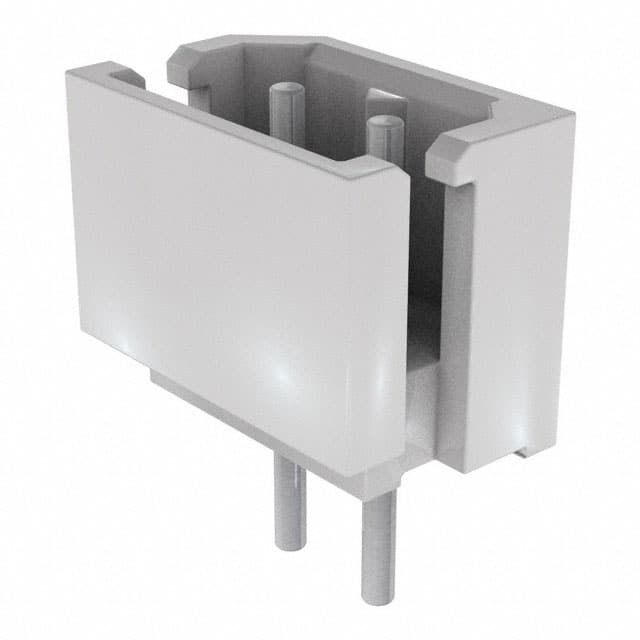

0022035025 Molex	1 $0.2700	Datasheet	Shrouded - 4 Wall	0.138" (3.50mm)	0.350" (8.89mm)	Circular	Brass	Polyamide (PA66), Nylon 6/6, Glass Filled	-	0.138" (3.50mm)	0.232" (5.90mm)	-	Header	Tin	Tin	Male Pin	-	Detent Lock	-	-	-	UL94 V-0	Through Hole	2	All	1	-	0.098" (2.50mm)	Board to Cable/Wire	Solder	-	2,833 Buy Now Get Quote
0530470310 Molex	1 $0.2700	Datasheet	Shrouded - 4 Wall	0.089" (2.25mm)	-	Rectangular	Phosphor Bronze	Polyamide (PA66), Nylon 6/6	35.4µin (0.90µm)	0.091" (2.30mm)	0.165" (4.20mm)	-	Header	Tin	Tin	Male Blade	-	Detent Lock	-	-	Natural	UL94 V-0	Through Hole	3	All	1	-	0.049" (1.25mm)	Board to Cable/Wire	Solder	-	9,601 Buy Now Get Quote
0022232031 Molex	1 $0.2800	Datasheet	Shrouded - 1 Wall	0.295" (7.49mm)	0.560" (14.22mm)	Square	Brass	Polyamide (PA), Nylon	100.0µin (2.54µm)	0.140" (3.56mm)	0.322" (8.18mm)	-	Header	Tin	Tin	Male Pin	-	Friction Lock	-	-	White	UL94 V-0	Through Hole	3	All	1	-	0.100" (2.54mm)	Board to Board or Cable	Solder	-	5,951 Buy Now Get Quote

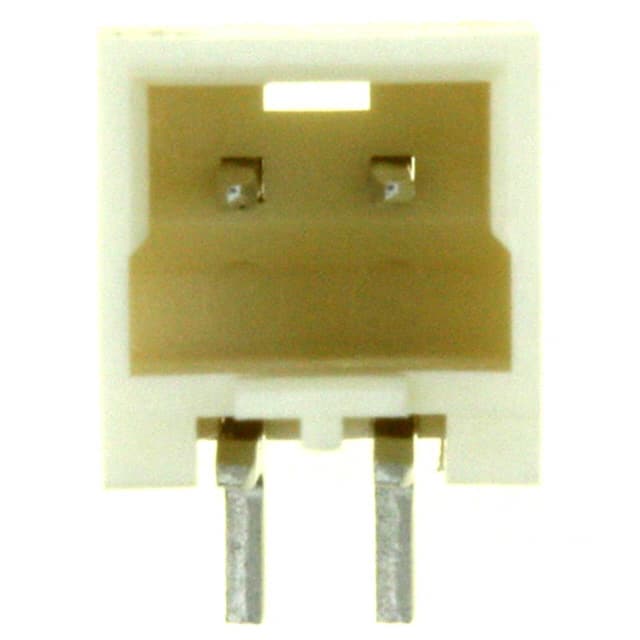

0874370243 Molex	1 $0.5800	Datasheet	Shrouded - 4 Wall	0.106" (2.70mm)	-	Square	Brass Alloy	Polyamide (PA), Nylon	100.0µin (2.54µm)	-	0.199" (5.05mm)	-	Header	Tin	Tin	Male Pin	-	Push-Pull	-	-	Beige	UL94 V-0	Surface Mount	2	All	1	-	0.059" (1.50mm)	Board to Cable/Wire	Solder	-	3,173 Buy Now Get Quote
0874380243 Molex	1 $0.5900	Datasheet	Shrouded - 4 Wall	0.106" (2.70mm)	-	Square	Brass Alloy	Polyamide (PA), Nylon, Glass Filled	100.0µin (2.54µm)	-	0.175" (4.45mm)	-	Header	Tin	Tin	Male Pin	-	Push-Pull	-	-	Beige	UL94 V-0	Surface Mount, Right Angle	2	All	1	-55°C ~ 105°C	0.059" (1.50mm)	Board to Cable/Wire	Solder	250V	1,295 Buy Now Get Quote
0532610271 Molex	1 $0.5900	Datasheet	Shrouded - 4 Wall	-	-	Rectangular	Phosphor Bronze	Polyamide (PA46), Nylon 4/6	39.4µin (1.00µm)	-	0.134" (3.40mm)	-	Header	Tin	Tin	Male Blade	-	Detent Lock	Solder Retention	-	Natural	UL94 V-0	Surface Mount, Right Angle	2	All	1	-	0.049" (1.25mm)	Board to Cable/Wire	Solder	-	1,894 Buy Now Get Quote
5015680207 Molex	1 $0.5900	Datasheet	Shrouded - 4 Wall	-	-	Square	Phosphor Bronze	Polyamide (PA), Nylon	40.0µin (1.02µm)	-	0.126" (3.20mm)	-	Header	Tin	Tin	Male Pin	-	Latch Holder	Solder Retention	-	Natural	UL94 V-0	Surface Mount, Right Angle	2	All	1	-	0.039" (1.00mm)	Board to Cable/Wire	Solder	-	2,601 Buy Now Get Quote
0022057025 Molex	1 $0.3000	Datasheet	Shrouded - 4 Wall	0.138" (3.50mm)	-	Circular	Brass	Polyamide (PA66), Nylon 6/6, Glass Filled	160.0µin (4.06µm)	0.138" (3.50mm)	0.193" (4.90mm)	-	Header	Tin	Tin	Male Pin	-	Detent Lock	-	-	Natural	UL94 V-0	Through Hole, Right Angle	2	All	1	-	0.098" (2.50mm)	Board to Cable/Wire	Solder	-	6,326 Buy Now Get Quote
0532530370 Molex	1 $0.3000	Datasheet	Shrouded - 3 Wall	0.130" (3.30mm)	0.331" (8.40mm)	Square	Brass	Polyamide (PA), Nylon	-	0.138" (3.50mm)	0.217" (5.51mm)	-	Header	Tin	Tin	Male Pin	-	Detent Lock	-	-	Natural	UL94 V-0	Through Hole	3	All	1	-	0.079" (2.00mm)	Board to Cable/Wire	Kinked Pin, Solder	-	4,827 Buy Now Get Quote
5015680407 Molex	1 $0.6400	Datasheet	Shrouded - 4 Wall	-	-	Square	Phosphor Bronze	Polyamide (PA), Nylon	40.0µin (1.02µm)	-	0.126" (3.20mm)	-	Header	Tin	Tin	Male Pin	-	Latch Holder	Solder Retention	-	Natural	UL94 V-0	Surface Mount, Right Angle	4	All	1	-	0.039" (1.00mm)	Board to Cable/Wire	Solder	-	4,076 Buy Now Get Quote
5037630291 Molex	1 $0.6800	Datasheet	Shrouded - 4 Wall	-	-	Square	Copper Alloy	Polyamide (PA), Nylon	3.94µin (0.100µm)	-	0.059" (1.50mm)	-	Header	Gold	Gold	Male Pin	Varies by Wire Gauge	Detent Lock	Solder Retention	-	Black	UL94 V-0	Surface Mount, Right Angle	2	All	1	-40°C ~ 105°C	0.039" (1.00mm)	Board to Cable/Wire	Solder	150V	4,028 Buy Now Get Quote
0022272021 Molex	1 $0.3100	Datasheet	Shrouded - 1 Wall	0.295" (7.49mm)	0.560" (14.22mm)	Square	Brass	Polyamide (PA), Nylon	100.0µin (2.54µm)	0.140" (3.56mm)	0.461" (11.70mm)	-	Header	Tin	Tin	Male Pin	-	Friction Lock	-	-	Natural	UL94 V-0	Through Hole	2	All	1	-	0.100" (2.54mm)	Board to Cable/Wire	Solder	-	3,842 Buy Now Get Quote
