PC Card Sockets
PC card sockets are connectors designed to receive card type memory such as CFast, SIM, PCMCIA, Compact Flash, CardBus, ExpressCard, and SD, allowing for regular removal and insertion via hinged lid, push-pull and auto eject methods. They are available in surface, board, screw, straddle, snap-in, and edge mount as well as free-hanging and hand gripped versions.
Sourcing Hirose PC Card Sockets: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 4
| Product | Pricing | Datasheet | Card Type | Connector Type | Insertion, Removal Method | Ejector Side | Height Above Board | Contact Finish | Contact Finish Thickness | Features | Mounting Feature | Mounting Type | Number of Positions | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

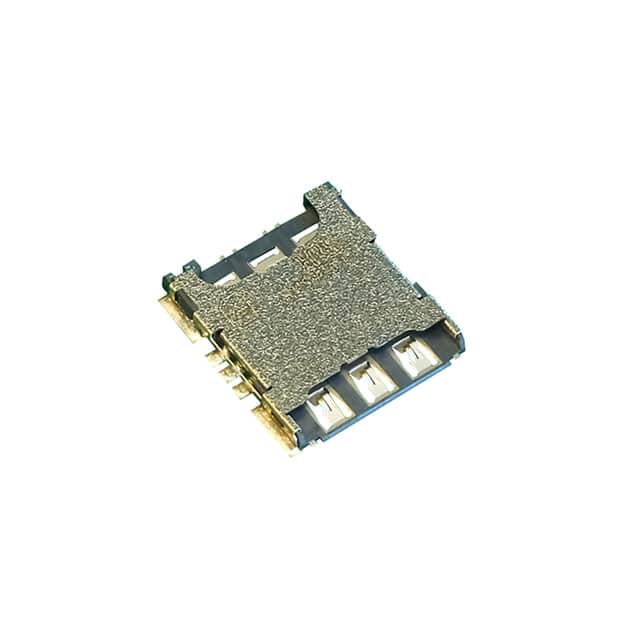

 KP13C-6S-SF(800) Hirose | 1 $2.0500 | NANO SIM | Connector | Push In, Pull Out | - | 0.044" (1.12mm) | Gold | 2.00µin (0.051µm) | - | Normal, Standard - Top | Surface Mount, Right Angle | 6 | 8,628 | |

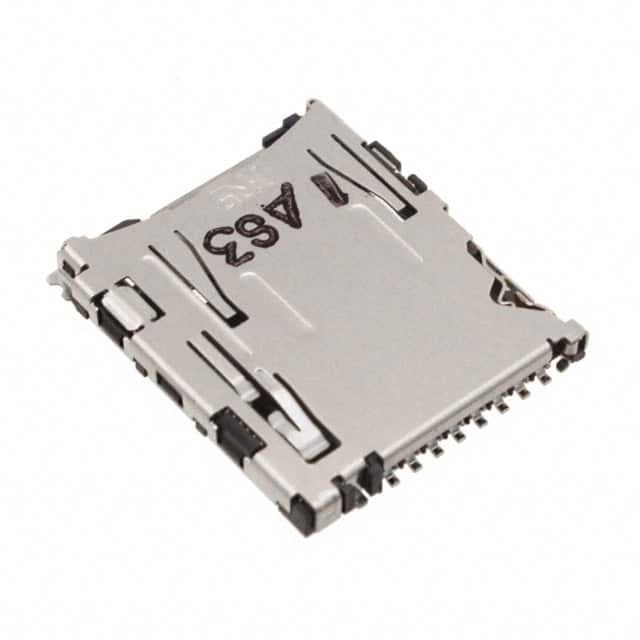

 DM3AT-SF-PEJM5 Hirose | 1 $0.5550 100 $0.4440 500 $0.3700 | Secure Digital - microSD™ | Connector and Ejector | Push In, Push Out | - | 0.066" (1.68mm) | Gold | - | Switch | Normal, Standard - Top | Surface Mount, Right Angle | 10 (8 + 2) | 1,000 | |

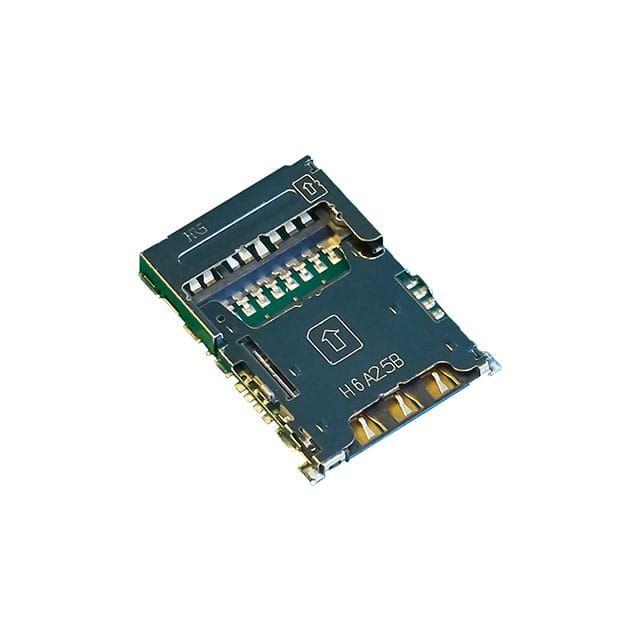

 KP15B-6S-SF(800) Hirose | 1 $3.8100 | Combo - microSD™, NANO SIM | Connector and Ejector | Push In, Pull Out | Left | 0.079" (2.00mm) | Gold | 2.00µin (0.051µm) | Switch | Normal, Standard - Top | Surface Mount, Right Angle | 18 (16 + 2) | 4,576 | |
 MI21A-50PD-SF-EJR(71) Hirose | 1 $8.5500 | CompactFlash® - Type I, II | Connector and Ejector | Push In, Push Out | Right | 0.341" (8.65mm) | Gold | 3.94µin (0.10µm) | Board Guide | Normal, Standard - Top | Surface Mount, Right Angle | 50 | 7,488 |
