Heavy Duty Connector Housings, Hoods, Bases
Products within this family are the outermost components of modular connector systems listed as "heavy duty," which serve to hold components known as frames, within which inserts and modules are mounted, within which the contacts that carry electrical power or signals are contained. In this context, "heavy duty" refers to a relatively specific range of interconnect products that are typically of rectangular format and characterized by features such as cast metal backshells, guide pins, and pin-and-latch retention mechanisms.
Sourcing HARTING Heavy Duty Connector Housings, Hoods, Bases: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 50
| Product | Pricing | Datasheet | Lock Location | Size / Dimension | Housing Color | Features | Ingress Protection | Housing Material | Housing Finish | Size | Thread Size | Connector Type | Operating Temperature | Style | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 09200030301 HARTING | 1 $10.9900 | Locking Clip (1) on Base Bottom | 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | 3A | - | Base - Panel Mount | -40°C ~ 125°C | Bottom Entry | 8,150 | |
 19140010402 HARTING | 1 $23.4300 | - | 1.890" L x 1.331" W x 1.831" H (48.00mm x 33.80mm x 46.50mm) | - | - | IP65 - Dust Tight, Water Resistant | Zinc, Die Cast | Nickel | - | M32 | Hood | -40°C ~ 125°C | Top Entry | 2,285 | |
 09140010311 HARTING | 1 $23.6000 | Locking Clip (1) on Base Bottom | 1.890" L x 1.331" W x 0.933" H (48.00mm x 33.80mm x 23.70mm) | - | Grounding Terminal | IP65 - Dust Tight, Water Resistant | Zinc, Die Cast | Nickel | - | - | Hood | -40°C ~ 125°C | Bottom Entry | 6,387 | |
 09620030301 HARTING | 1 $23.6900 | Locking Clip (1) on Base Bottom | 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm) | - | - | IP44 | Zinc, Die Cast | EMC Coating | 3A | - | Base - Panel Mount | -40°C ~ 125°C | Bottom Entry | 6,080 | |
 09620030304 HARTING | 1 $25.6000 | Locking Clip (1) on Base Bottom | 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm) | - | - | IP44 | Zinc, Die Cast | EMC Coating | 3A | - | Base - Panel Mount | -40°C ~ 125°C | Bottom Entry | 1,239 | |
 09300060301 HARTING | 1 $21.0400 | Locking Clip (1) on Base Bottom | 3.150" L x 1.709" W x 1.138" H (80.00mm x 43.40mm x 28.90mm) | Gray | - | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast | Powder Coated | 6B | - | Base - Panel Mount | -40°C ~ 125°C | Bottom Entry | 4,955 | |
 09300240301 HARTING | 1 $30.0800 | Locking Clip (2) on Base Bottom | 5.512" L x 1.709" W x 1.138" H (140.00mm x 43.40mm x 28.90mm) | Gray | - | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast | Powder Coated | 24B | - | Base - Panel Mount | -40°C ~ 125°C | Bottom Entry | 2,061 | |
 09628160301 HARTING | 1 $42.8400 | Locking Clip (2) on Base Bottom | 4.449" L x 1.693" W x 1.134" H (113.00mm x 43.00mm x 28.80mm) | - | - | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast | EMC Coating | 16B | - | Base - Panel Mount | -40°C ~ 125°C | Bottom Entry | 3,437 | |
 09100000400 HARTING | 1 $6.9100 | Locking Clip (1) on Base Bottom | 0.799" L x 0.642" W x 1.850" H (20.30mm x 16.30mm x 47.00mm) | Black | - | IP65 - Dust Tight, Water Resistant | Polyamide (PA), Nylon | - | 1A | - | Hood | -30°C ~ 90°C | Top Entry | 9,539 | |
 09200031440 HARTING | 1 $9.8700 | Locking Clip (1) on Base Bottom | 1.063" L x 1.102" W x 2.362" H (27.00mm x 28.00mm x 60.00mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | 3A | PG11 | Hood | -40°C ~ 125°C | Top Entry | 2,565 | |
 09120080527 HARTING | 1 $10.9200 | Locking Clip (1) on Base Bottom | 1.886" L x 1.130" W x 2.126" H (47.90mm x 28.70mm x 54.00mm) | Black | - | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Polycarbonate (PC) | - | - | PG16 | Hood | -40°C ~ 125°C | Side Entry | 1,210 | |
 19200031640 HARTING | 1 $10.9600 | Locking Clip (1) on Base Bottom | 1.063" L x 1.102" W x 2.138" H (27.00mm x 28.00mm x 54.30mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | 3A | M20 | Hood - 90° | -40°C ~ 125°C | Side Entry | 6,355 | |
 09120080327 HARTING | 1 $11.2200 | Locking Clip (1) on Base Bottom | 1.807" L x 1.130" W x 0.768" H (45.90mm x 28.70mm x 19.50mm) | Black | - | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Polycarbonate (PC) | - | - | - | Base - Panel Mount | -40°C ~ 125°C | Bottom Entry | 9,145 | |
 09200030801 HARTING | 1 $15.0700 | Locking Clip (1) on Base Bottom | 1.102" L x 1.575" W x 1.063" H (28.00mm x 40.00mm x 27.00mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | 3A | - | Base - Panel Mount 90° | -40°C ~ 125°C | Side Entry | 9,874 | |
 19620031440 HARTING | 1 $15.6900 | Locking Clip (1) on Base Bottom | 1.063" L x 1.102" W x 2.362" H (27.00mm x 28.00mm x 60.00mm) | - | - | IP44 | Zinc, Die Cast | EMC Coating | 3A | M20 | Hood | -40°C ~ 125°C | Top Entry | 7,384 | |
 19200031252 HARTING | 1 $16.2900 | Locking Clip (1) on Base Bottom | 1.102" L x 1.575" W x 1.071" H (28.00mm x 40.00mm x 27.20mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | 3A | M20 | Base - Panel Mount 90° | -40°C ~ 125°C | Side Entry | 6,298 | |

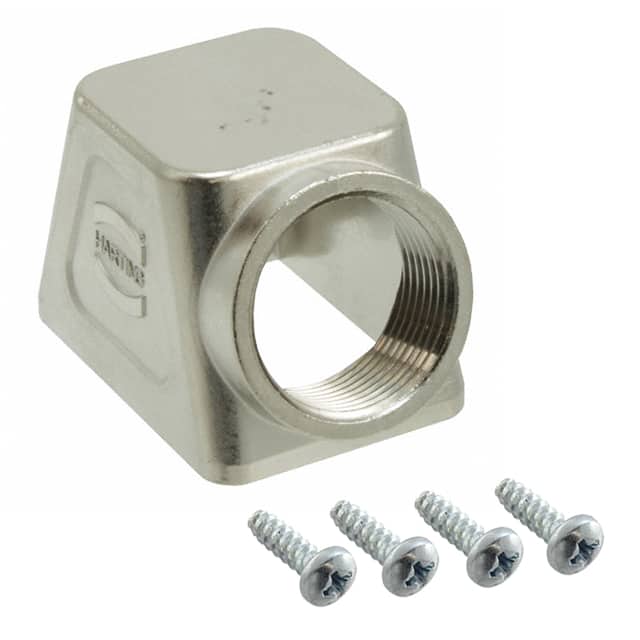

 19140010501 HARTING | 1 $17.8000 | - | 1.890" L x 1.331" W x 1.339" H (48.00mm x 33.80mm x 34.00mm) | - | - | IP65 - Dust Tight, Water Resistant | Zinc, Die Cast | Nickel | - | M25 | Hood | -40°C ~ 125°C | Side Entry | 8,341 | |

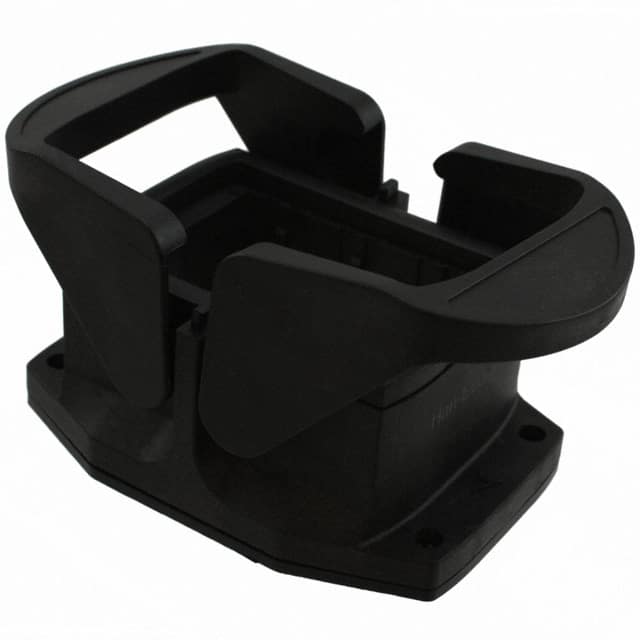

 19410060301 HARTING | 1 $13.0400 | Locking Clip (2) on Base Bottom | 3.150" L x 2.244" W x 1.346" H (80.00mm x 57.00mm x 34.20mm) | Black | - | IP65 - Dust Tight, Water Resistant | Polyamide (PA), Nylon, Glass Filled | - | 6B | - | Base - Panel Mount | -40°C ~ 125°C | Bottom Entry | 2,028 | |

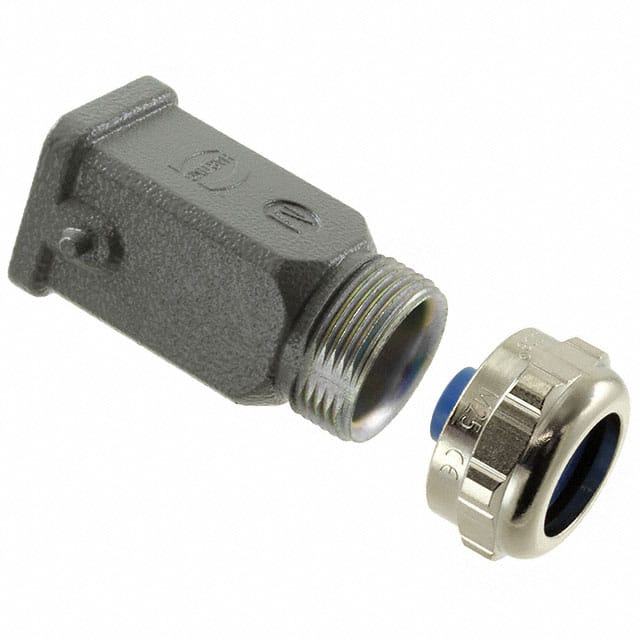

 19200031421 HARTING | 1 $20.5100 | Locking Clip (1) on Base Bottom | 1.063" L x 1.102" W x 1.654" H (27.00mm x 28.00mm x 42.00mm) | Gray | - | IP44 | Zinc, Die Cast | Powder Coated | 3A | M25 | Hood | -40°C ~ 125°C | Top Entry | 6,711 | |

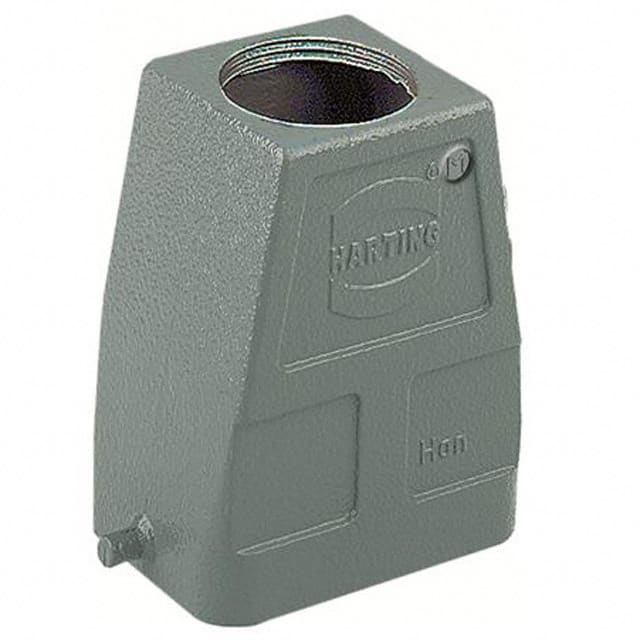

 19300060447 HARTING | 1 $25.4500 | Locking Clip (1) on Base Bottom | 2.362" L x 1.693" W x 2.835" H (60.00mm x 43.00mm x 72.00mm) | Gray | - | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast | Powder Coated | 6B | M32 | Hood | -40°C ~ 125°C | Top Entry | 3,221 |
