Heavy Duty Connector Frames
Products within this family are components of modular connector systems listed as "heavy duty," and are used to hold one or more selected contact inserts or modules in position within a housing, hood, or base. In this context, "heavy duty" refers to a relatively specific range of interconnect products that are typically of rectangular format and characterized by features such as cast metal backshells, guide pins, and pin-and-latch retention mechanisms.
Sourcing HARTING Heavy Duty Connector Frames: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 47
| Product | Pricing | Datasheet | Number of Modules | Frame Type | Material | Color | Includes | Size | Gender | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
 09140160361 HARTING | 1 $24.7600 | 4 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 16B | Non-Gendered | -40°C ~ 125°C | 8,106 | |
 09140240303 HARTING | 1 $24.8100 | 6 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 24B | Female/Male | -40°C ~ 125°C | 3,272 | |
 09140240313 HARTING | 1 $24.8100 | 6 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 24B | Female/Male | -40°C ~ 125°C | 9,043 | |
 09140060361 HARTING | 1 $24.3100 | 2 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 6B | Non-Gendered | -40°C ~ 125°C | 7,398 | |
 09140060303 HARTING | 1 $24.3100 | 2 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 6B | Female/Male | -40°C ~ 125°C | 8,862 | |
 09140060371 HARTING | 1 $24.3100 | 2 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 6B | Non-Gendered | -40°C ~ 125°C | 3,115 | |
 09140100303 HARTING | 1 $24.5500 | 3 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 10B | Female/Male | -40°C ~ 125°C | 5,990 | |
 09140100371 HARTING | 1 $24.5500 | 3 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 10B | Non-Gendered | -40°C ~ 125°C | 1,606 | |
 09400009904 HARTING | 1 $23.9900 | - | Panel Mounting Frame | Metal | - | 1 pc - 1 Frame | 24B | Non-Gendered | -40°C ~ 125°C | 7,157 | |
 09400009923 HARTING | 1 $27.2600 | - | Panel Mounting Frame | Metal | - | 1 pc - 1 Frame | 16B | Non-Gendered | - | 5,722 | |
 09140060301 HARTING | 1 $28.4600 | 2 | Fixing Frame | - | - | - | - | - | - | 6,140 | |
 09110009958 HARTING | 1 $43.5500 | 3 | Fixing Frame | Stainless Steel | - | - | 24HPR | Female | - | 3,535 | |
 09110009926 HARTING | 1 $52.6900 | 4 | Fixing Frame | Stainless Steel | - | 5 pcs - 1 Frame, 4 Screws | 24HPR | Female | - | 7,253 | |
 09140320371 HARTING | 1 $28.5100 | 8 | Docking Frame | Zinc Die Cast | - | - | L32B | Female/Male | -40°C ~ 125°C | 4,760 | |
09140320361 HARTING | 1 $28.5100 | 8 | Docking Frame | Zinc Die Cast | - | - | L32B | Female/Male | -40°C ~ 125°C | 9,154 | |
 09142060313 HARTING | 1 $36.9800 | 2 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 6B | Female/Male | -40°C ~ 125°C | 6,984 | |
 09140161721 HARTING | 1 $10.4500 | 4 | Docking Frame | Polycarbonate (PC) | - | 1 pc - 1 Frame | 16B | - | -5°C ~ 55°C | 5,455 | |
 09140161731 HARTING | 1 $11.4000 | 4 | Docking Frame | Polycarbonate (PC) | - | 1 pc - 1 Frame | 16B | - | -5°C ~ 55°C | 5,324 | |

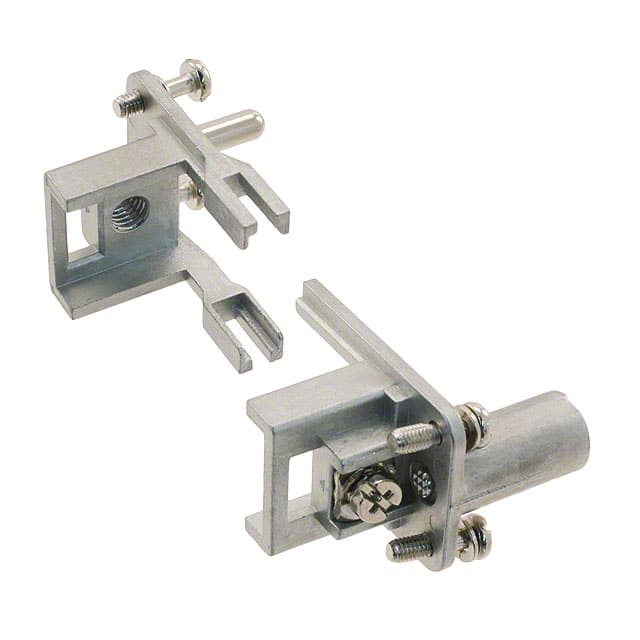

 09140000304 HARTING | 1 $24.2200 | 1 | Assembly Module Frame | - | - | 5 pcs - 1 Frame, 4 Screws | - | Female/Male | - | 6,952 | |

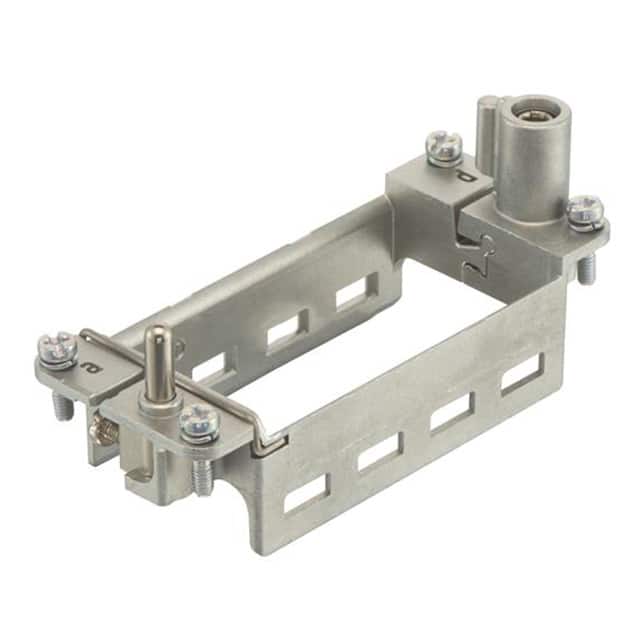

 09140160371 HARTING | 1 $24.7600 | 4 | Retaining Frame, Hinged | Zinc Die Cast | - | 5 pcs - 1 Frame, 4 Screws | 16B | Non-Gendered | -40°C ~ 125°C | 7,801 |
