FFC, FPC (Flat Flexible) Connector Assemblies
Products in this family are interconnect products used in conjunction with Flat Flexible Cable (FFC) and Flexible Printed Circuit (FPC) materials, and are predominantly of the sort which perform a cable-to-board interconnect function, being mounted to a printed circuit board, and providing both electrical connection and mechanical retention for an inserted FFC or FPC cable.
Sourcing TE Connectivity AMP Connectors FFC, FPC (Flat Flexible) Connector Assemblies: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 18
| Product | Pricing | Datasheet | Mounting Type | Connector/Contact Type | Termination | Height Above Board | Cable End Type | Contact Material | Actuator Material | FFC, FCB Thickness | Flat Flex Type | Locking Feature | Contact Finish | Features | Housing Material | Material Flammability Rating | Number of Positions | Operating Temperature | Pitch | Voltage Rating | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 1-1734592-0 TE Connectivity AMP Connectors | 1 $0.8000 | Surface Mount, Right Angle | Contacts, Bottom | Solder | 0.081" (2.05mm) | Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP) | UL94 V-0 | 10 | -40°C ~ 85°C | 0.020" (0.50mm) | 250V | 5,754 | |
 1-1734839-0 TE Connectivity AMP Connectors | 1 $0.8300 | Surface Mount, Right Angle | Contacts, Top | Solder | 0.081" (2.05mm) | Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Thermoplastic | UL94 V-0 | 10 | -20°C ~ 85°C | 0.020" (0.50mm) | 250V | 5,092 | |
 1-1734592-2 TE Connectivity AMP Connectors | 1 $0.8400 | Surface Mount, Right Angle | Contacts, Bottom | Solder | 0.081" (2.05mm) | Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP) | UL94 V-0 | 12 | -40°C ~ 85°C | 0.020" (0.50mm) | 250V | 7,196 | |
 1-1734742-0 TE Connectivity AMP Connectors | 1 $0.8600 | Surface Mount | Contacts, Vertical - 1 Sided | Solder | 0.163" (4.15mm) | Straight or Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FFC, FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Thermoplastic, Glass Filled | UL94 V-0 | 10 | -20°C ~ 85°C | 0.020" (0.50mm) | 50V | 5,698 | |
 1-1734592-4 TE Connectivity AMP Connectors | 1 $0.9600 | Surface Mount, Right Angle | Contacts, Bottom | Solder | 0.081" (2.05mm) | Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP) | UL94 V-0 | 14 | -40°C ~ 85°C | 0.020" (0.50mm) | 250V | 7,902 | |
 84952-4 TE Connectivity AMP Connectors | 1 $1.0000 | Surface Mount, Right Angle | Contacts, Bottom | Solder | 0.101" (2.56mm) | Straight | Phosphor Bronze | Polyamide (PA), Nylon, Glass Filled | 0.30mm | FPC | Slide Lock | Tin | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP), Glass Filled | UL94 V-0 | 4 | -40°C ~ 85°C | 0.039" (1.00mm) | 200V | 6,260 | |

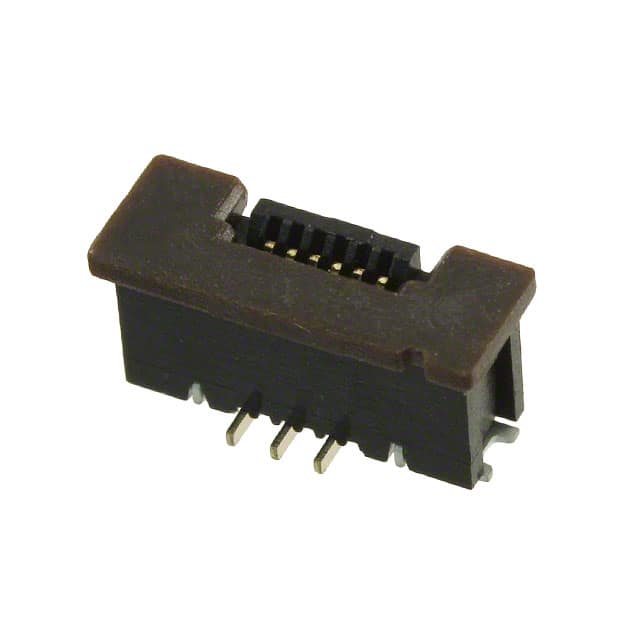

 1734742-6 TE Connectivity AMP Connectors | 1 $0.9700 | Surface Mount | Contacts, Vertical - 1 Sided | Solder | 0.163" (4.15mm) | Straight or Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FFC, FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Thermoplastic, Glass Filled | UL94 V-0 | 6 | -20°C ~ 85°C | 0.020" (0.50mm) | 50V | 9,162 | |
 1-1734592-8 TE Connectivity AMP Connectors | 1 $1.0800 | Surface Mount, Right Angle | Contacts, Bottom | Solder | 0.081" (2.05mm) | Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP) | UL94 V-0 | 18 | -40°C ~ 85°C | 0.020" (0.50mm) | 250V | 5,628 | |
 1734248-4 TE Connectivity AMP Connectors | 1 $1.1600 | Surface Mount | Contacts, Vertical - 1 Sided | Solder | 0.217" (5.50mm) | Tapered | Phosphor Bronze | Polyamide (PA9T), Nylon 9T | 0.30mm | FPC | Slide Lock | Gold | Zero Insertion Force (ZIF) | Polyamide (PA9T), Nylon 9T | UL94 V-0 | 4 | -20°C ~ 85°C | 0.039" (1.00mm) | 125V | 3,442 | |
 4-1734839-0 TE Connectivity AMP Connectors | 1 $0.8730 100 $0.6984 500 $0.5820 | Surface Mount, Right Angle | Contacts, Top | Solder | 0.081" (2.05mm) | Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Thermoplastic | UL94 V-0 | 40 | -20°C ~ 85°C | 0.020" (0.50mm) | 250V | 500 | |
 1-84953-0 TE Connectivity AMP Connectors | 1 $1.2800 | Surface Mount, Right Angle | Contacts, Top | Solder | 0.101" (2.56mm) | Straight | Phosphor Bronze | Polyamide (PA), Nylon, Glass Filled | 0.30mm | FPC | Slide Lock | Tin | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP), Glass Filled | UL94 V-0 | 10 | -40°C ~ 85°C | 0.039" (1.00mm) | 200V | 5,141 | |
 2-1734592-4 TE Connectivity AMP Connectors | 1 $1.3200 | Surface Mount, Right Angle | Contacts, Bottom | Solder | 0.081" (2.05mm) | Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP) | UL94 V-0 | 24 | -40°C ~ 85°C | 0.020" (0.50mm) | 250V | 8,098 | |
 1-84952-5 TE Connectivity AMP Connectors | 1 $1.2500 | Surface Mount, Right Angle | Contacts, Bottom | Solder | 0.101" (2.56mm) | Straight | Phosphor Bronze | Polyamide (PA), Nylon, Glass Filled | 0.30mm | FPC | Slide Lock | Tin | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP), Glass Filled | UL94 V-0 | 15 | -40°C ~ 85°C | 0.039" (1.00mm) | 200V | 4,476 | |
 1-1734248-5 TE Connectivity AMP Connectors | 1 $0.6300 100 $0.5040 500 $0.4200 | Surface Mount | Contacts, Vertical - 1 Sided | Solder | 0.217" (5.50mm) | Tapered | Phosphor Bronze | Polyamide (PA9T), Nylon 9T | 0.30mm | FPC | Slide Lock | Gold | Zero Insertion Force (ZIF) | Polyamide (PA9T), Nylon 9T | UL94 V-0 | 15 | -20°C ~ 85°C | 0.039" (1.00mm) | 125V | 100 | |
 1-84952-6 TE Connectivity AMP Connectors | 1 $1.3300 | Surface Mount, Right Angle | Contacts, Bottom | Solder | 0.101" (2.56mm) | Straight | Phosphor Bronze | Polyamide (PA), Nylon, Glass Filled | 0.30mm | FPC | Slide Lock | Tin | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP), Glass Filled | UL94 V-0 | 16 | -40°C ~ 85°C | 0.039" (1.00mm) | 200V | 8,079 | |
 2-1734839-4 TE Connectivity AMP Connectors | 1 $1.4200 | Surface Mount, Right Angle | Contacts, Top | Solder | 0.081" (2.05mm) | Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Thermoplastic | UL94 V-0 | 24 | -20°C ~ 85°C | 0.020" (0.50mm) | 250V | 7,261 | |
 1-84952-2 TE Connectivity AMP Connectors | 1 $1.3900 | Surface Mount, Right Angle | Contacts, Bottom | Solder | 0.101" (2.56mm) | Straight | Phosphor Bronze | Polyamide (PA), Nylon, Glass Filled | 0.30mm | FPC | Slide Lock | Tin | Solder Retention, Zero Insertion Force (ZIF) | Liquid Crystal Polymer (LCP), Glass Filled | UL94 V-0 | 12 | -40°C ~ 85°C | 0.039" (1.00mm) | 200V | 9,620 | |
 2-1734839-5 TE Connectivity AMP Connectors | 1 $1.4800 | Surface Mount, Right Angle | Contacts, Top | Solder | 0.081" (2.05mm) | Tapered | Phosphor Bronze | Thermoplastic | 0.30mm | FPC | Slide Lock | Gold | Solder Retention, Zero Insertion Force (ZIF) | Thermoplastic | UL94 V-0 | 25 | -20°C ~ 85°C | 0.020" (0.50mm) | 250V | 3,904 |
