D-Sub, D-Shaped Connector Housings
Products in this family are components of D-subminiature style connectors, into which electrical contacts that have been applied to discrete wires can be inserted. So-named in reference to the shape of their mating end and their relatively high interconnect density at the time of introduction, an additional component known as a backshell is needed to form a connector assembly. Note that similar products assembled by means of soldering discrete wires in place are available though grouped separately, alongside similar items intended for mounting directly to a printed circuit board.
Sourcing TE Connectivity AMP Connectors D-Sub, D-Shaped Connector Housings: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 34
| Product | Pricing | Datasheet | Shell Finish Thickness | Shell Material, Finish | Shell Size, Connector Layout | Connector Style | Connector Type | Contact Type | Flange Feature | Ingress Protection | Mounting Type | Number of Positions | Number of Rows | Primary Material | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 205204-4 TE Connectivity AMP Connectors | 1 $2.3500 | - | Steel, Tin Plated | 1 (DE, E) | D-Sub | Plug for Male Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 9 | 2 | - | Grounding Indents | 9,094 | |
 205204-9 TE Connectivity AMP Connectors | 1 $2.4100 | 200µin (5.08µm) | Steel, Yellow Trivalent Chromium Chromate Zinc Plated | 1 (DE, E) | D-Sub | Plug for Male Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 9 | 2 | - | - | 7,109 | |
 205203-3 TE Connectivity AMP Connectors | 1 $2.4200 | - | Steel, Tin Plated | 1 (DE, E) | D-Sub | Receptacle for Female Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 9 | 2 | - | - | 7,262 | |
 205203-8 TE Connectivity AMP Connectors | 1 $2.7300 | 200µin (5.08µm) | Steel, Yellow Trivalent Chromium Chromate Zinc Plated | 1 (DE, E) | D-Sub | Receptacle for Female Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 9 | 2 | - | - | 4,984 | |
 1658681-1 TE Connectivity AMP Connectors | 1 $4.3000 | 200µin (5.08µm) | Steel, Tin Plated | 1 (DE, E) High Density | D-Sub, High Density | Receptacle for Female Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 15 | 3 | - | - | 2,135 | |
 748364-1 TE Connectivity AMP Connectors | 1 $4.6500 | - | Steel, Tin Plated | 1 (DE, E) High Density | D-Sub, High Density | Plug for Male Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 15 | 3 | - | Grounding Indents | 3,725 | |
 1658671-1 TE Connectivity AMP Connectors | 1 $5.1300 | 200µin (5.08µm) | Steel, Tin Plated | 2 (DA, A) High Density | D-Sub, High Density | Plug for Male Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 26 | 3 | - | Grounding Indents | 2,218 | |
 1658643-1 TE Connectivity AMP Connectors | 1 $8.7500 | 200µin (5.08µm) | Steel, Tin Plated | 1 (DE, E) | D-Sub | Receptacle for Female Contacts | Signal | Cable Side (4-40) | - | Free Hanging (In-Line) | 9 | 2 | - | - | 1,771 | |
 1658655-1 TE Connectivity AMP Connectors | 1 $16.8600 | 200µin (5.08µm) | Steel, Tin Plated | 1 (DE, E) | D-Sub | Plug for Male Contacts | Signal | Cable Side (4-40) | - | Free Hanging (In-Line) | 9 | 2 | - | Backshell, Grounding Indents, Shielded | 1,954 | |
 1658657-1 TE Connectivity AMP Connectors | 1 $17.5100 | 200µin (5.08µm) | Steel, Tin Plated | 2 (DA, A) | D-Sub | Plug for Male Contacts | Signal | Cable Side (4-40) | - | Free Hanging (In-Line) | 15 | 2 | - | Backshell, Grounding Indents, Shielded | 4,994 | |
 205209-2 TE Connectivity AMP Connectors | 1 $1.9700 | - | Steel, Tin Plated | 4 (DC, C) | D-Sub | Receptacle for Female Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 37 | 2 | - | - | 4,417 | |

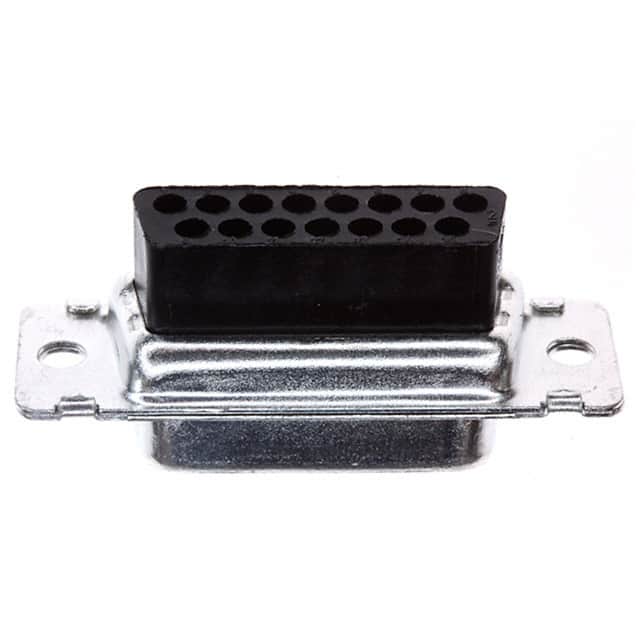

 205205-2 TE Connectivity AMP Connectors | 1 $2.3000 | - | Steel, Tin Plated | 2 (DA, A) | D-Sub | Receptacle for Female Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 15 | 2 | - | - | 4,506 | |
 164531-4 TE Connectivity AMP Connectors | 1 $2.4600 | - | Steel, Tin Plated | 1 (DE, E) | D-Sub | Receptacle for Female Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 9 | 2 | - | - | 3,054 | |

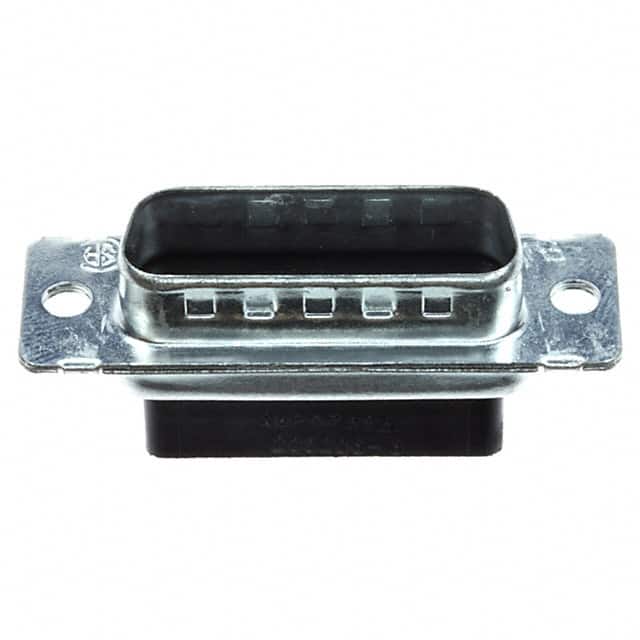

 205206-3 TE Connectivity AMP Connectors | 1 $2.4700 | - | Steel, Tin Plated | 2 (DA, A) | D-Sub | Plug for Male Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 15 | 2 | - | Grounding Indents | 2,706 | |

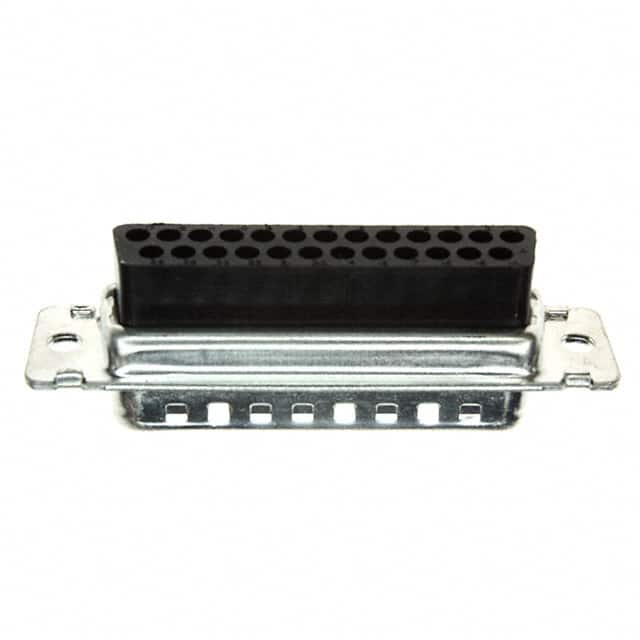

 207464-2 TE Connectivity AMP Connectors | 1 $2.5300 | - | Steel, Tin Plated | 3 (DB, B) | D-Sub | Plug for Male Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 25 | 2 | - | Grounding Indents | 3,368 | |
 205210-8 TE Connectivity AMP Connectors | 1 $5.1500 | 200µin (5.08µm) | Steel, Yellow Trivalent Chromium Chromate Zinc Plated | 4 (DC, C) | D-Sub | Plug for Male Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 37 | 2 | - | - | 4,978 | |
 216165-1 TE Connectivity AMP Connectors | 1 $5.2800 | - | Steel, Tin Plated | 2 (DA, A) High Density | D-Sub, High Density | Receptacle for Female Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 26 | 3 | - | - | 3,419 | |
 1658641-2 TE Connectivity AMP Connectors | 1 $6.9700 | 200µin (5.08µm) | Steel, Tin Plated | 5 (DD, D) | D-Sub | Plug for Male Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 50 | 3 | - | Grounding Indents | 1,330 | |
 1658640-1 TE Connectivity AMP Connectors | 1 $8.0400 | 200µin (5.08µm) | Steel, Tin Plated | 5 (DD, D) | D-Sub | Receptacle for Female Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 50 | 3 | - | - | 9,335 | |
 1658673-1 TE Connectivity AMP Connectors | 1 $8.1400 | 200µin (5.08µm) | Steel, Tin Plated | 4 (DC, C) High Density | D-Sub, High Density | Plug for Male Contacts | Signal | Housing/Shell (Unthreaded) | - | Free Hanging (In-Line) | 62 | 3 | - | Grounding Indents | 5,685 |
