D-Sub Connector Assemblies
D-subminiature connectors are named for the D-shaped shroud present at their mating end and the relatively high interconnect density offered at the time of their introduction. Products in this family, which are described as "connectors", incorporate the electrical contacts and the insulation system holding them in position as an integral unit. They are commonly used for board mount applications, although they can also be used for solder terminated cable mount.
Sourcing TE Connectivity AMP Connectors D-Sub Connector Assemblies: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 13
| Product | Pricing | Datasheet | Current Rating (Amps) | Backset Spacing | Shell Material, Finish | Shell Size, Connector Layout | Connector Style | Connector Type | Contact Finish | Contact Finish Thickness | Contact Type | Flange Feature | Ingress Protection | Material Flammability Rating | Mounting Type | Number of Positions | Number of Rows | Primary Material | Termination | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

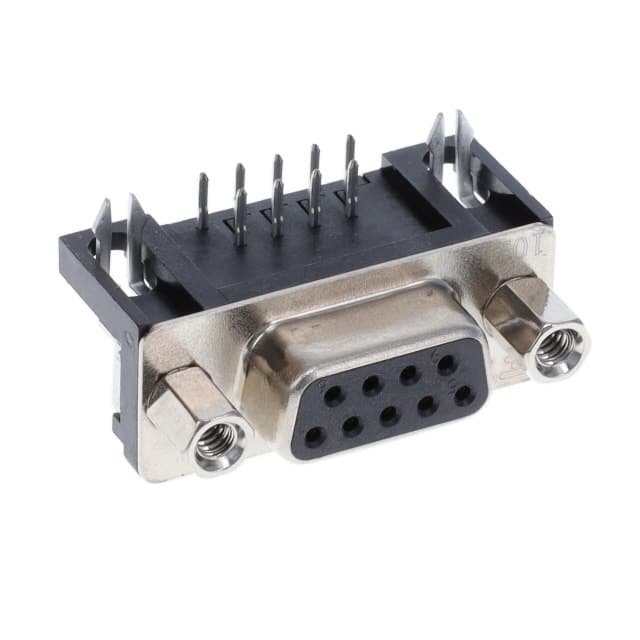

 2311765-1 TE Connectivity AMP Connectors | 1 $2.4000 | 3A | 0.318" (8.08mm) | Steel, Nickel Plated | 1 (DE, E) | D-Sub | Receptacle, Female Sockets | Gold | - | Signal | Mating Side, Female Screwlock (4-40) | - | UL94 V-0 | Through Hole, Right Angle | 9 | 2 | - | Solder | Board Lock | 3,576 | |

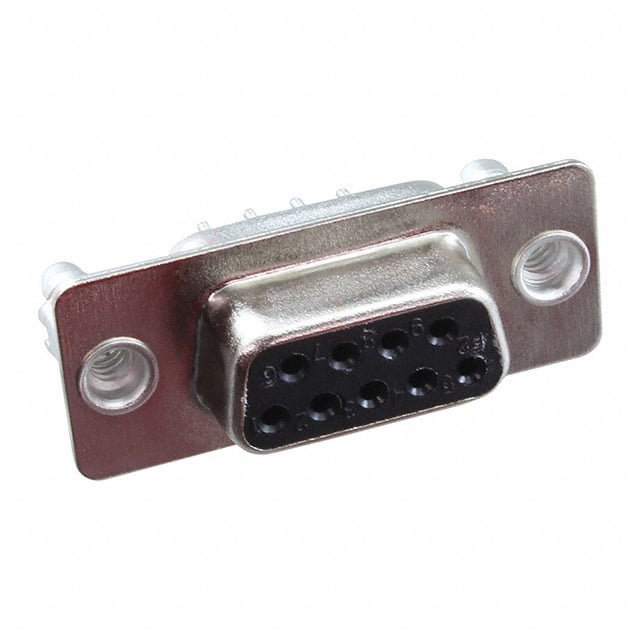

 2301838-1 TE Connectivity AMP Connectors | 1 $2.4700 | 1.5A | - | Steel, Tin-Nickel Plated | 1 (DE, E) | D-Sub | Receptacle, Female Sockets | Gold | 15.0µin (0.38µm) | Signal | Board Side (4-40) | - | UL94 V-0 | Through Hole | 9 | 2 | - | Solder | Board Lock | 3,546 | |

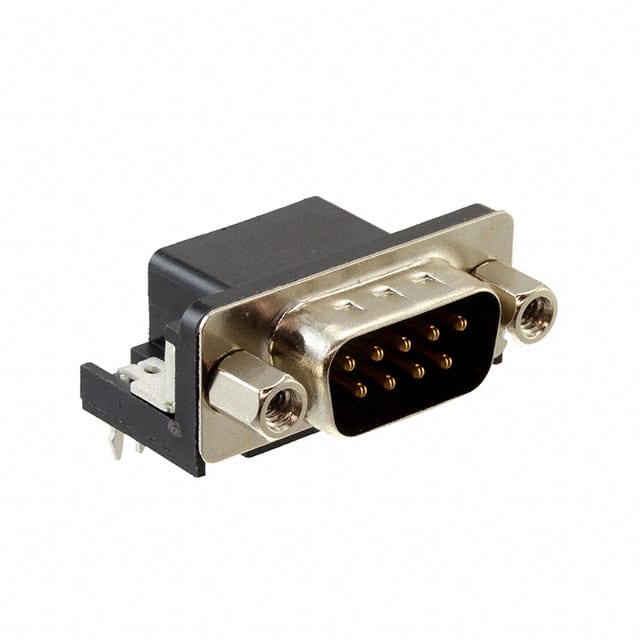

 2301843-2 TE Connectivity AMP Connectors | 1 $2.5600 | 2A per Contact | 0.411" (10.43mm) | Steel, Nickel Plated | 1 (DE, E) | D-Sub | Plug, Male Pins | Gold | 15.0µin (0.38µm) | Signal | Mating Side, Female Screwlock (4-40) | - | UL94 V-0 | Through Hole, Right Angle | 9 | 2 | - | Solder | Board Lock, Grounding Indents | 1,455 | |

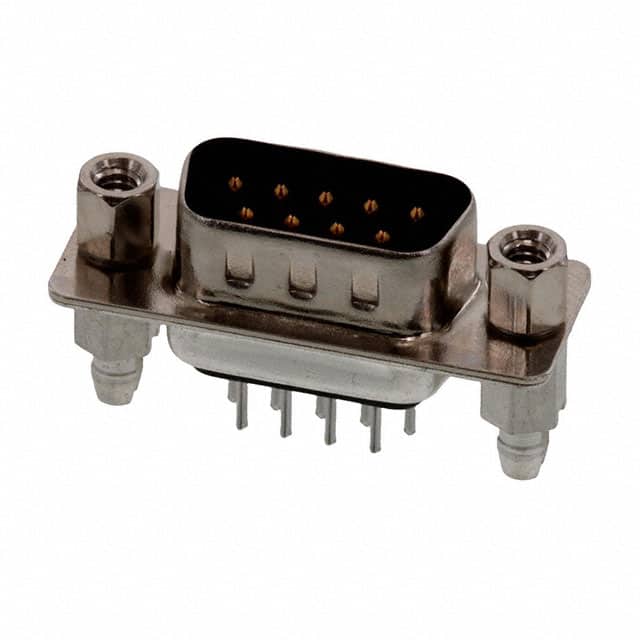

 2301826-2 TE Connectivity AMP Connectors | 1 $2.5800 | 1.5A | - | Steel, Tin-Nickel Plated | 1 (DE, E) | D-Sub | Plug, Male Pins | Gold | 15.0µin (0.38µm) | Signal | Mating Side, Female Screwlock (4-40) | - | UL94 V-0 | Through Hole | 9 | 2 | - | Solder | Board Lock, Grounding Indents | 8,839 | |
 2301826-1 TE Connectivity AMP Connectors | 1 $2.6800 | 1.5A | - | Steel, Tin-Nickel Plated | 1 (DE, E) | D-Sub | Plug, Male Pins | Gold | 15.0µin (0.38µm) | Signal | Board Side (4-40) | - | UL94 V-0 | Through Hole | 9 | 2 | - | Solder | Board Lock, Grounding Indents | 5,265 | |
 2301838-2 TE Connectivity AMP Connectors | 1 $2.9000 | 1.5A | - | Steel, Tin-Nickel Plated | 1 (DE, E) | D-Sub | Receptacle, Female Sockets | Gold | 15.0µin (0.38µm) | Signal | Mating Side, Female Screwlock (4-40) | - | UL94 V-0 | Through Hole | 9 | 2 | - | Solder | Board Lock | 1,324 | |
 2301840-1 TE Connectivity AMP Connectors | 1 $3.4800 | 1.5A | - | Steel, Tin-Nickel Plated | 2 (DA, A) | D-Sub | Receptacle, Female Sockets | Gold | 15.0µin (0.38µm) | Signal | Mating Side, Female Screwlock (4-40) | - | UL94 V-0 | Through Hole | 15 | 2 | - | Solder | Board Lock | 6,571 | |
 5788796-1 TE Connectivity AMP Connectors | 1 $3.7800 | 6A | 0.318" (8.08mm) | Steel, Tin Plated | 1 (DE, E) | D-Sub | Receptacle, Female Sockets | Gold | 30.0µin (0.76µm) | Signal | Housing/Shell (4-40) | - | UL94 V-0 | Through Hole, Right Angle | 9 | 2 | - | Solder | Board Lock | 9,359 | |
 5745781-4 TE Connectivity AMP Connectors | 1 $3.9400 | 6A | 0.318" (8.08mm) | Steel, Tin Plated | 1 (DE, E) | D-Sub | Receptacle, Female Sockets | Gold | 30.0µin (0.76µm) | Signal | Housing/Shell (4-40) | - | UL94 V-0 | Through Hole, Right Angle | 9 | 2 | - | Solder | Ground Strap | 7,047 | |
 5747844-6 TE Connectivity AMP Connectors | 1 $3.9900 | 6A | 0.318" (8.08mm) | Steel, Tin Plated | 1 (DE, E) | D-Sub | Receptacle, Female Sockets | Gold | 30.0µin (0.76µm) | Signal | Mating Side, Female Screwlock (4-40) | - | UL94 V-0 | Through Hole, Right Angle | 9 | 2 | - | Solder | Board Lock, Ground Strap | 2,573 | |
 5747840-4 TE Connectivity AMP Connectors | 1 $4.0900 | 6A | 0.318" (8.08mm) | Steel, Tin Plated | 1 (DE, E) | D-Sub | Plug, Male Pins | Gold | - | Signal | Housing/Shell (4-40) | - | UL94 V-0 | Through Hole, Right Angle | 9 | 2 | - | Solder | Board Lock, Ground Strap, Grounding Indents | 2,781 | |
 2311763-2 TE Connectivity AMP Connectors | 1 $4.1800 | 3A | 0.350" (8.89mm) | Steel, Nickel Plated | 1 (DE, E) High Density | D-Sub, High Density | Receptacle, Female Sockets | Gold | - | Signal | Housing/Shell (4-40) | - | UL94 V-0 | Through Hole, Right Angle | 15 | 3 | - | Solder | Board Lock | 4,861 | |
 5-747905-5 TE Connectivity AMP Connectors | 1 $4.3400 | 3A | - | Steel, Tin Plated | 1 (DE, E) | D-Sub | Receptacle, Female Sockets | Gold | 30.0µin (0.76µm) | Signal | Housing/Shell (Unthreaded) | - | UL94 V-0 | Free Hanging (In-Line) | 9 | 2 | - | Solder Cup | - | 2,184 |
