Coaxial Connector (RF) Assemblies
Products in the coaxial connector family are interconnect devices used with cable materials consisting of a central conductor surrounded by insulation material and an outer conductor of circular cross section, designed to maintain a consistent characteristic impedance over the length of the material in order to serve as a suitable transmission line for high frequency signals.
Sourcing Molex Coaxial Connector (RF) Assemblies: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 24
| Product | Pricing | Datasheet | Shield Termination | Number of Ports | Housing Color | Center Contact Material | Cable Group | Frequency - Max | Impedance | Connector Style | Connector Type | Contact Termination | Fastening Type | Ingress Protection | Mounting Feature | Mounting Type | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 0734120110 Molex | 1 $0.7900 | Solder | 1 | Silver | Brass | - | 6 GHz | 50Ohm | U.FL (UMCC) | Receptacle, Male Pin | Solder | Snap-On | - | - | Surface Mount | - | 8,272 | |
 0734120114 Molex | 1 $0.9600 | Solder | 1 | Silver | Brass | - | 6 GHz | 50Ohm | U.FL (UMCC) | Receptacle, Male Pin | Solder | Snap-On | - | - | Surface Mount | - | 6,622 | |
 0734150963 Molex | 1 $2.2500 | Solder | 1 | Gold | Beryllium Copper | - | 6 GHz | 50Ohm | MMCX | Jack, Female Socket | Solder | Snap-On | - | - | Board Edge, Cutout; Surface Mount | - | 7,845 | |
 0734152063 Molex | 1 $2.5800 | Solder | 1 | Gold | Beryllium Copper | - | 6 GHz | 50Ohm | MMCX | Jack, Female Socket | Solder | Snap-On | - | - | Surface Mount | - | 8,255 | |
 0734151692 Molex | 1 $2.9600 | Solder | 1 | Gold | Beryllium Copper | - | 6 GHz | 50Ohm | MCX | Receptacle, Female Socket | Solder | Snap-On | - | - | Surface Mount | - | 7,258 | |
 0733660061 Molex | 1 $2.4000 | Solder | 1 | Gold | Beryllium Copper | - | 6 GHz | 50Ohm | MCX | Jack, Female Socket | Solder | Snap-On | - | - | Through Hole | - | 3,098 | |
 0734151472 Molex | 1 $2.5500 | Solder | 1 | Gold | Beryllium Copper | - | 6 GHz | 50Ohm | MMCX | Jack, Female Socket | Solder | Snap-On | - | - | Through Hole | - | 3,467 | |
 0733300030 Molex | 1 $2.5900 | Solder | 1 | Silver | Phosphor Bronze | - | 2 GHz | 75Ohm | F Type | Receptacle, Female Socket | Solder | Threaded | - | - | Through Hole, Right Angle | - | 5,803 | |
0734150961 Molex | 1 $2.6000 | Solder | 1 | Gold | Beryllium Copper | - | 6 GHz | 50Ohm | MMCX | Jack, Female Socket | Solder | Snap-On | - | - | Board Edge, Cutout; Surface Mount | - | 6,893 | |
 0731375003 Molex | 1 $2.6500 | Solder | 1 | Black, Silver | Phosphor Bronze | - | - | 50Ohm | BNC | Jack, Female Socket | Solder | Bayonet Lock | - | Bulkhead - Front Side Nut | Panel Mount, Through Hole, Right Angle | Board Guide, Isolated | 4,607 | |
 0853050232 Molex | 1 $4.5900 | Solder | 1 | Gold | Brass | - | 40 GHz | 50Ohm | SMP | Plug, Male Pin | Solder | Snap-On | - | - | Surface Mount | Limited Detent | 9,866 | |
 0731000207 Molex | 1 $2.8600 | Solder | 1 | Gold | Brass | - | 4 GHz | 50Ohm | SMB | Receptacle, Male Pin | Solder | Snap-On | - | - | Through Hole | - | 9,985 | |
 0734151631 Molex | 1 $2.9100 | Solder | 1 | Gold | Beryllium Copper | - | 6 GHz | 75Ohm | MCX | Receptacle, Female Socket | Solder | Snap-On | - | - | Surface Mount | - | 8,044 | |
 0734151630 Molex | 1 $2.9200 | Solder | 1 | Silver | Beryllium Copper | - | 6 GHz | 75Ohm | MCX | Receptacle, Female Socket | Solder | Snap-On | - | - | Surface Mount | - | 1,421 | |
 0731385033 Molex | 1 $3.2000 | Solder | 1 | Silver | Phosphor Bronze | - | - | 50Ohm | BNC | Jack, Female Socket | Solder | Bayonet Lock | - | Bulkhead - Front Side Nut | Panel Mount, Through Hole, Right Angle | - | 4,362 | |
0731385003 Molex | 1 $3.4500 | Solder | 1 | Black, Silver | Phosphor Bronze | - | - | 50Ohm | BNC | Jack, Female Socket | Solder | Bayonet Lock | - | Bulkhead - Front Side Nut | Panel Mount, Through Hole, Right Angle | Board Guide, Isolated | 9,186 | |
0734151471 Molex | 1 $3.5000 | Solder | 1 | Gold | Beryllium Copper | - | 6 GHz | 50Ohm | MMCX | Jack, Female Socket | Solder | Snap-On | - | - | Through Hole | - | 2,859 | |

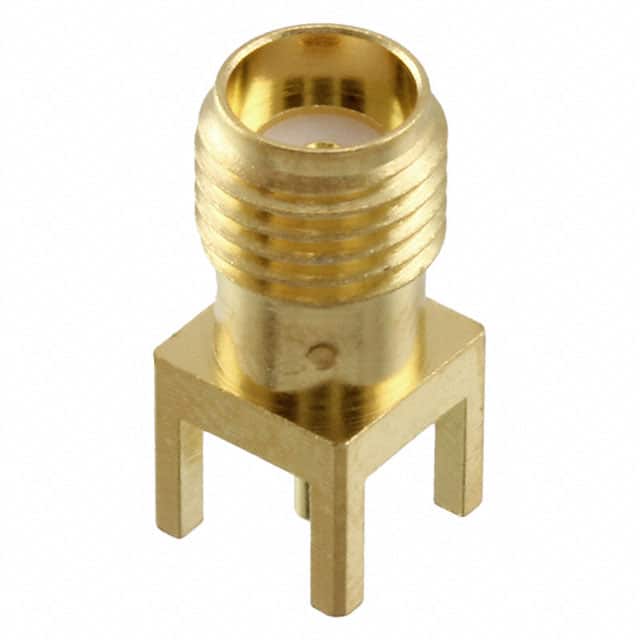

 0733910060 Molex | 1 $3.8800 | Solder | 1 | Gold | Beryllium Copper | - | 18 GHz | 50Ohm | SMA | Receptacle, Female Socket | Solder | Threaded | - | - | Through Hole | - | 8,076 | |
 0733660030 Molex | 1 $3.9500 | Solder | 1 | Silver | Beryllium Copper | - | 6 GHz | 50Ohm | MCX | Jack, Female Socket | Solder | Snap-On | - | - | Through Hole, Right Angle | - | 2,735 | |

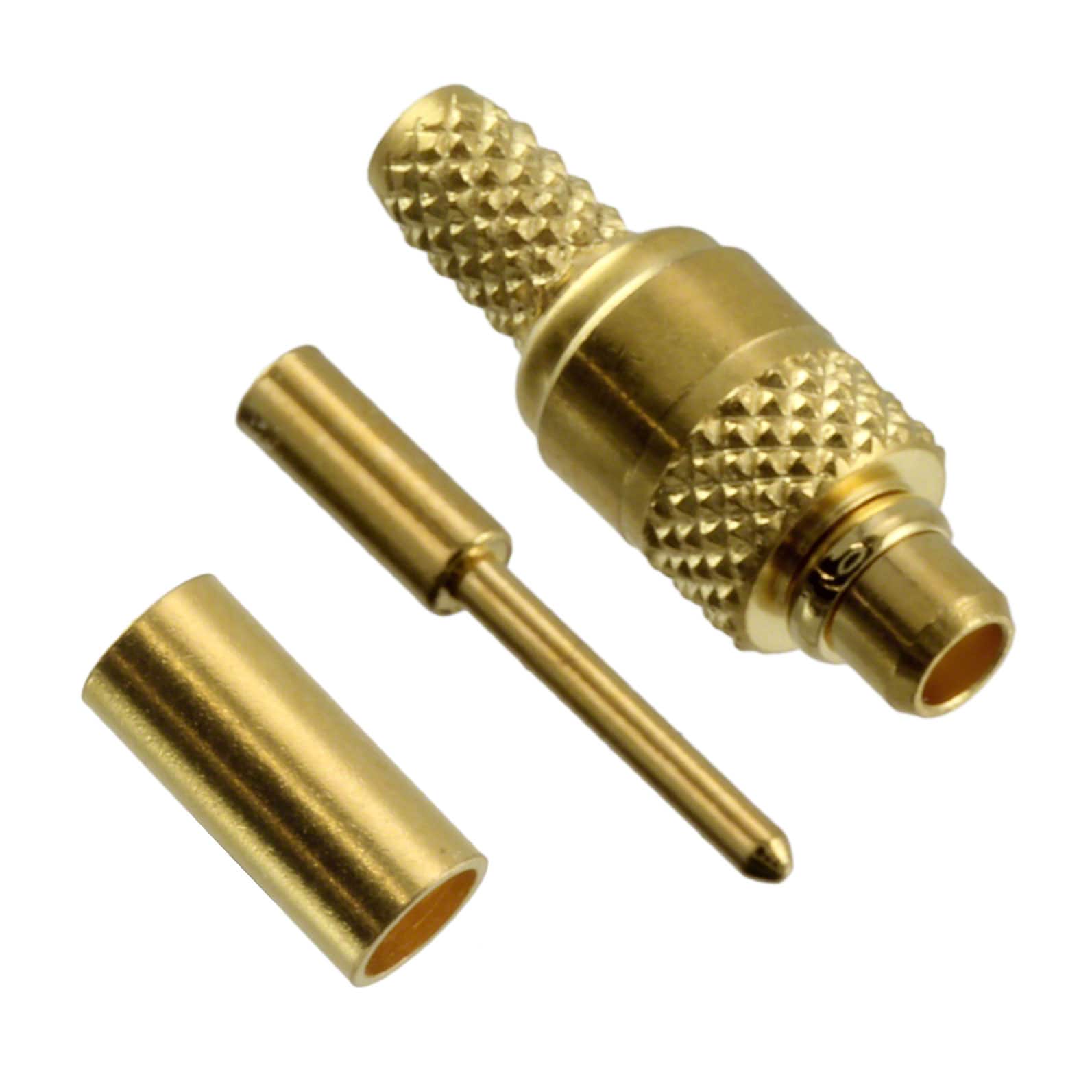

 0734151251 Molex | 1 $3.9500 | Crimp | 1 | Gold | Brass | RG-174, 188, 316 | 6 GHz | 50Ohm | MMCX | Plug, Male Pin | Solder | Snap-On | - | - | Free Hanging (In-Line) | - | 4,404 |
