Edgeboard Connectors
Card edge or edgeboard connectors are a style of connector system in which (typically) a pattern of exposed copper regions at the periphery of a printed circuit board constitutes one-half of a mating connector pair. A common use case being the connection of accessory cards such as graphics accelerators to computer motherboards in desktop PC applications, they offer a relatively low-cost, high density interconnect option for applications where durability is not a primary concern.
Sourcing TE Connectivity AMP Connectors Edgeboard Connectors: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 22
| Product | Pricing | Datasheet | Gender | Number of Positions/Bay/Row | Number of Rows | Read Out | Termination | Contact Type | Operating Temperature | Card Thickness | Card Type | Color | Contact Finish | Contact Finish Thickness | Contact Material | Features | Flange Feature | Mounting Type | Number of Positions | Pitch | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 1775862-2 TE Connectivity AMP Connectors | 1 $0.9100 | Female | 8; 18 | 2 | Dual | Solder | - | - | 0.039" (1.00mm) | PCI Express Mini Card | Black | Gold | Flash | Phosphor Bronze | Board Guide | - | Surface Mount, Right Angle | 52 | 0.031" (0.80mm) | 9,155 | |
 2041119-1 TE Connectivity AMP Connectors | 1 $1.0200 | Female | 8; 18 | 2 | Dual | Solder | - | - | 0.039" (1.00mm) | PCI Express Mini Card | Black | Gold | Flash | Phosphor Bronze | Board Guide | - | Surface Mount, Right Angle | 52 | 0.031" (0.80mm) | 4,115 | |
 1775838-2 TE Connectivity AMP Connectors | 1 $0.8478 100 $0.6782 500 $0.5652 | Female | 8; 18 | 2 | Dual | Solder | - | -55°C ~ 85°C | 0.039" (1.00mm) | PCI Express Mini Card | Black | Gold | Flash | Copper Alloy | Board Guide | - | Surface Mount, Right Angle | 52 | 0.031" (0.80mm) | 10 | |
 2199119-4 TE Connectivity AMP Connectors | 1 $1.9200 | Female | - | 2 | Dual | Solder | - | -40°C ~ 80°C | - | M.2 (NGFF) Mini Card | Black | Gold | 15.0µin (0.38µm) | Copper Alloy | Board Guide | - | Surface Mount, Right Angle | 67 | 0.020" (0.50mm) | 5,139 | |
 2199119-3 TE Connectivity AMP Connectors | 1 $1.9200 | Female | - | 2 | Dual | Solder | - | -40°C ~ 80°C | - | M.2 (NGFF) Mini Card | Black | Gold | 15.0µin (0.38µm) | Copper Alloy | Board Guide | - | Surface Mount, Right Angle | 67 | 0.020" (0.50mm) | 3,484 | |
 2199230-8 TE Connectivity AMP Connectors | 1 $1.9300 | Female | - | 2 | Dual | Solder | - | -40°C ~ 80°C | - | M.2 (NGFF) Mini Card | Black | Gold | 15.0µin (0.38µm) | Copper Alloy | Board Guide, Keyed | - | Surface Mount, Right Angle | 67 | 0.020" (0.50mm) | 1,005 | |
 1-2199119-5 TE Connectivity AMP Connectors | 1 $1.9300 | Female | - | 2 | Dual | Solder | - | -40°C ~ 80°C | - | M.2 (NGFF) Mini Card | Black | Gold | 15.0µin (0.38µm) | Copper Alloy | Board Guide | - | Surface Mount, Right Angle | 67 | 0.020" (0.50mm) | 2,572 | |
 2199230-4 TE Connectivity AMP Connectors | 1 $1.9500 | Female | - | 2 | Dual | Solder | - | -40°C ~ 80°C | - | M.2 (NGFF) Mini Card | Black | Gold | 15.0µin (0.38µm) | Copper Alloy | Board Guide, Keyed | - | Surface Mount, Right Angle | 67 | 0.020" (0.50mm) | 8,844 | |
 2199230-3 TE Connectivity AMP Connectors | 1 $1.9600 | Female | - | 2 | Dual | Solder | - | -40°C ~ 80°C | - | M.2 (NGFF) Mini Card | Black | Gold | 15.0µin (0.38µm) | Copper Alloy | Board Guide, Keyed | - | Surface Mount, Right Angle | 67 | 0.020" (0.50mm) | 8,506 | |
 1759547-1 TE Connectivity AMP Connectors | 1 $1.7600 | Female | - | 2 | Dual | Solder | - | -55°C ~ 85°C | 0.039" (1.00mm) | PCI Express Mini Card | Black | Gold | Flash | Phosphor Bronze | Board Guide | - | Surface Mount, Right Angle | 52 | 0.031" (0.80mm) | 7,407 | |

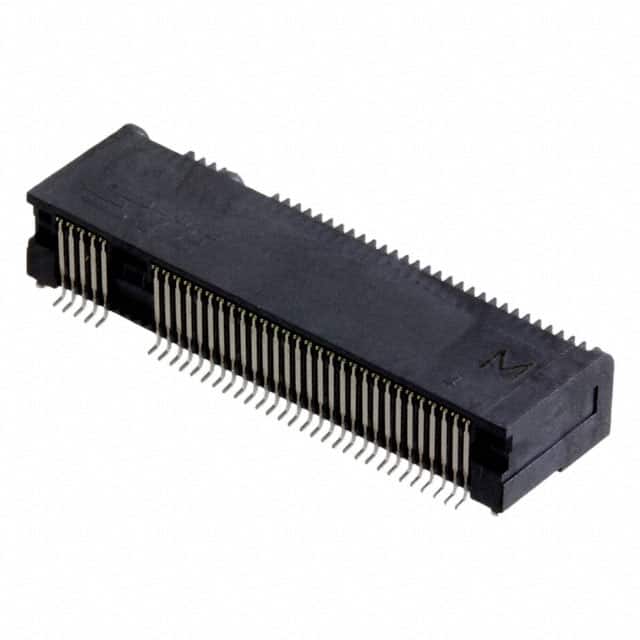

 1-2199230-6 TE Connectivity AMP Connectors | 1 $1.9650 100 $1.5720 500 $1.3100 | Female | - | 2 | Dual | Solder | - | -40°C ~ 80°C | - | M.2 (NGFF) Mini Card | Black | Gold | 30.0µin (0.76µm) | Copper Alloy | Board Guide | - | Surface Mount, Right Angle | 67 | 0.020" (0.50mm) | 10 | |

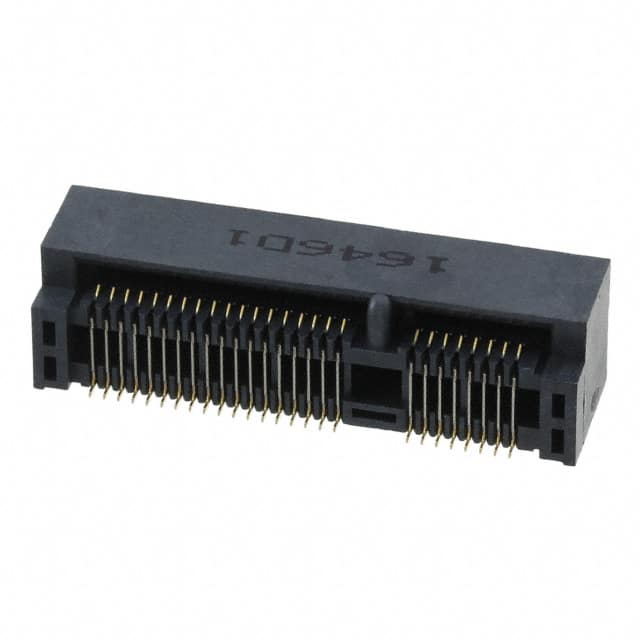

 1759503-1 TE Connectivity AMP Connectors | 1 $3.2600 | Female | - | 2 | Dual | Solder | - | - | - | PCI Express Mini Card | Black | Gold | Flash | Copper Alloy | Board Guide | - | Surface Mount, Right Angle | 52 | 0.031" (0.80mm) | 3,683 | |

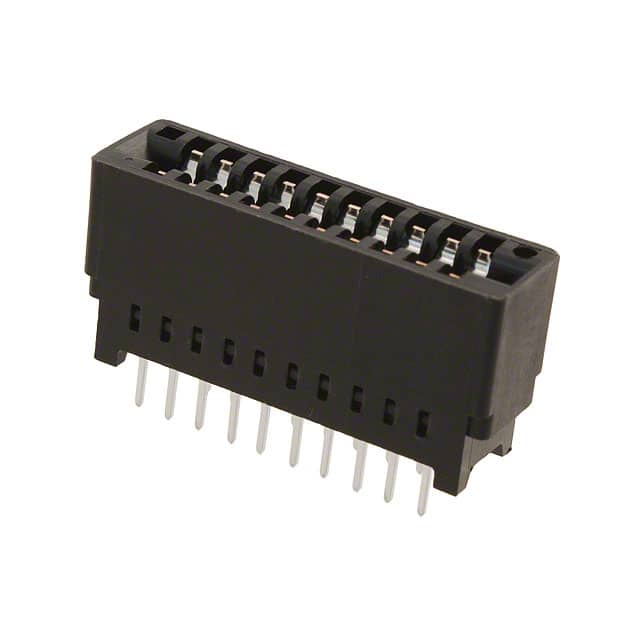

 5-5530843-0 TE Connectivity AMP Connectors | 1 $2.6200 | Female | - | 2 | Dual | Solder | - | -55°C ~ 85°C | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Non Specified - Dual Edge | Black | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | - | Through Hole | 20 | 0.100" (2.54mm) | 6,340 | |

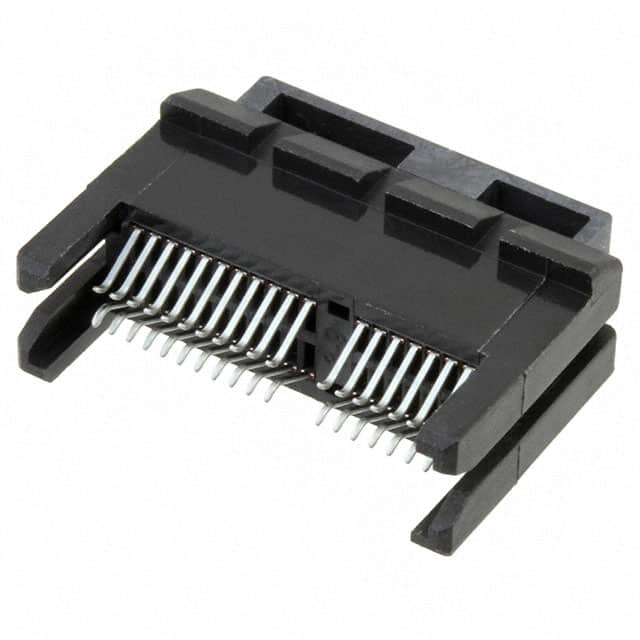

 5-1734857-5 TE Connectivity AMP Connectors | 1 $3.3100 | Female | - | 2 | Dual | Solder | - | -40°C ~ 85°C | 0.062" (1.57mm) | PCI Express™ | Black | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Card Extender, Locking Ramp | - | Board Edge, Straddle Mount | 36 | 0.039" (1.00mm) | 6,313 | |

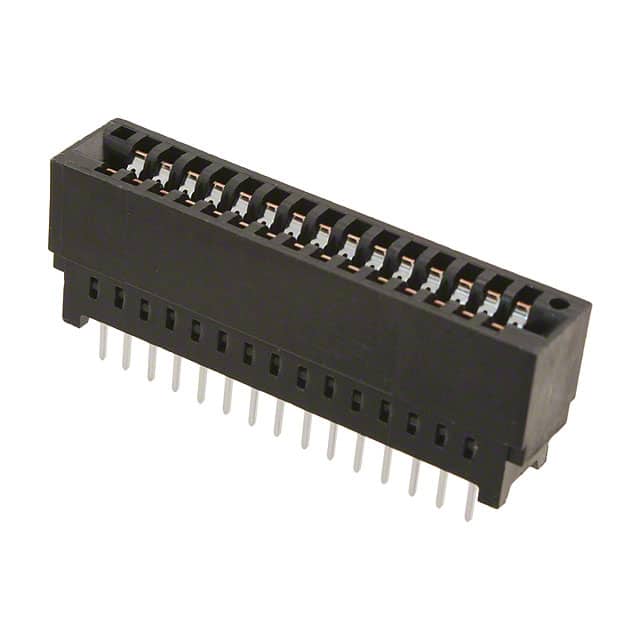

 5530843-2 TE Connectivity AMP Connectors | 1 $3.3300 | Female | - | 2 | Dual | Solder | - | -55°C ~ 85°C | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Non Specified - Dual Edge | Black | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | - | Through Hole | 30 | 0.100" (2.54mm) | 7,567 | |

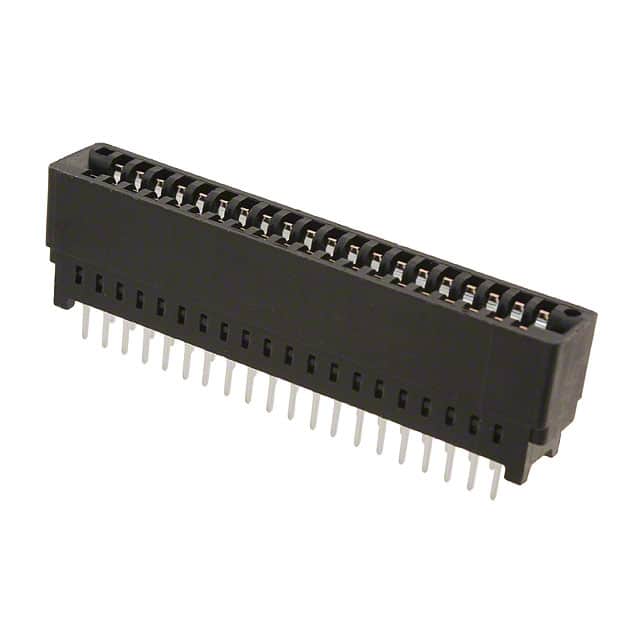

 5-5530843-4 TE Connectivity AMP Connectors | 1 $4.2000 | Female | - | 2 | Dual | Solder | - | -55°C ~ 85°C | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Non Specified - Dual Edge | Black | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | - | Through Hole | 40 | 0.100" (2.54mm) | 7,922 | |

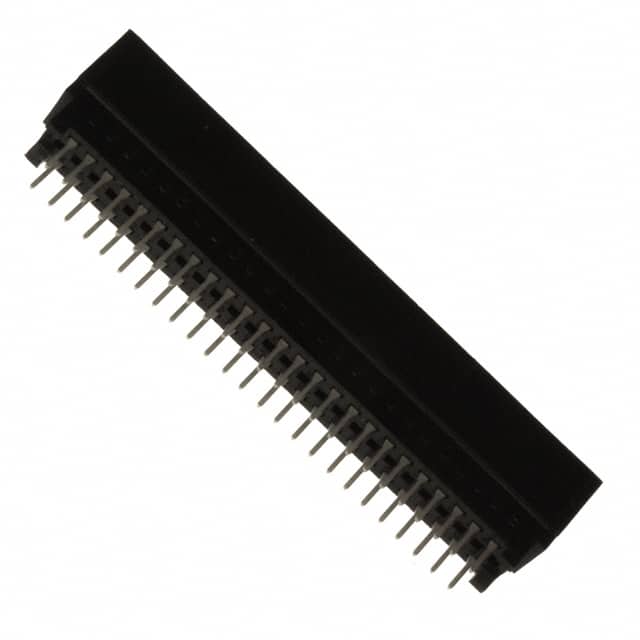

 5530843-5 TE Connectivity AMP Connectors | 1 $4.6100 | Female | - | 2 | Dual | Solder | - | -55°C ~ 85°C | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Non Specified - Dual Edge | Black | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | - | Through Hole | 50 | 0.100" (2.54mm) | 2,386 | |
 1-5145154-2 TE Connectivity AMP Connectors | 1 $6.1800 | Female | 11; 49 | 2 | Dual | Solder, Staggered | - | - | 0.062" (1.57mm) | PCI™ | Natural | Gold | 30.0µin (0.76µm) | Phosphor Bronze | Board Guide | - | Through Hole | 120 | 0.050" (1.27mm) | 8,562 | |
 2-5530843-0 TE Connectivity AMP Connectors | 1 $7.6800 | Female | - | 2 | Dual | Solder | - | -55°C ~ 85°C | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Non Specified - Dual Edge | Black | Gold | 30.0µin (0.76µm) | Phosphor Bronze | - | - | Through Hole | 80 | 0.100" (2.54mm) | 1,341 | |
 2199119-8 TE Connectivity AMP Connectors | 1 $1.5700 | Female | - | 2 | Dual | Solder | - | -40°C ~ 80°C | - | M.2 (NGFF) Mini Card | Black | Gold | 15.0µin (0.38µm) | Copper Alloy | Board Guide | - | Surface Mount, Right Angle | 67 | 0.020" (0.50mm) | 2,977 |
