Edgeboard Connectors
Card edge or edgeboard connectors are a style of connector system in which (typically) a pattern of exposed copper regions at the periphery of a printed circuit board constitutes one-half of a mating connector pair. A common use case being the connection of accessory cards such as graphics accelerators to computer motherboards in desktop PC applications, they offer a relatively low-cost, high density interconnect option for applications where durability is not a primary concern.
Sourcing Sullins Connector Solutions Edgeboard Connectors: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 14
| Product | Pricing | Datasheet | Gender | Number of Positions/Bay/Row | Number of Rows | Read Out | Termination | Contact Type | Operating Temperature | Card Thickness | Card Type | Color | Contact Finish | Contact Finish Thickness | Contact Material | Features | Flange Feature | Mounting Type | Number of Positions | Pitch | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

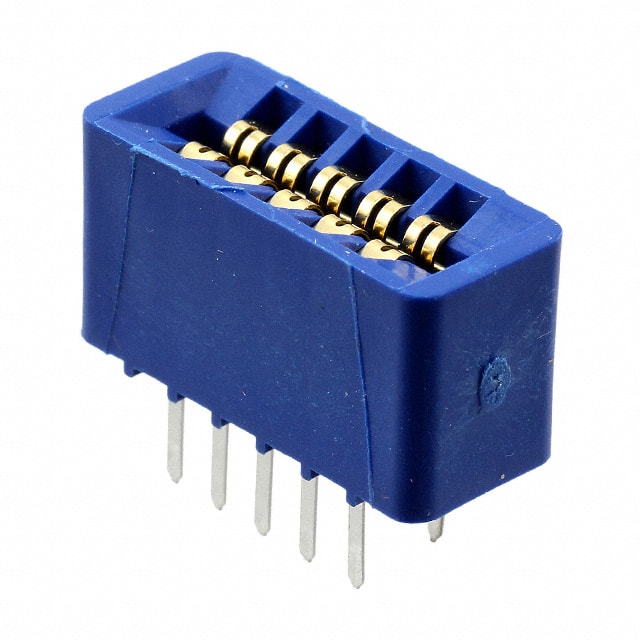

 EBC05DRXN Sullins Connector Solutions | 1 $3.5700 | Female | 5 | 2 | Dual | Solder | Full Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | - | Through Hole | 10 | 0.100" (2.54mm) | 8,897 | |
 GWE32DHRN-T9410 Sullins Connector Solutions | 1 $3.7100 | Female | 11; 21 | 2 | Dual | Solder | Cantilever | -10°C ~ 85°C | 0.062" (1.57mm) | PCI Express™ | Black | Gold | Flash | Phosphor Bronze | Cap, Card Extender, Locking Ramp | - | Board Edge, Straddle Mount | 64 | 0.039" (1.00mm) | 2,786 | |

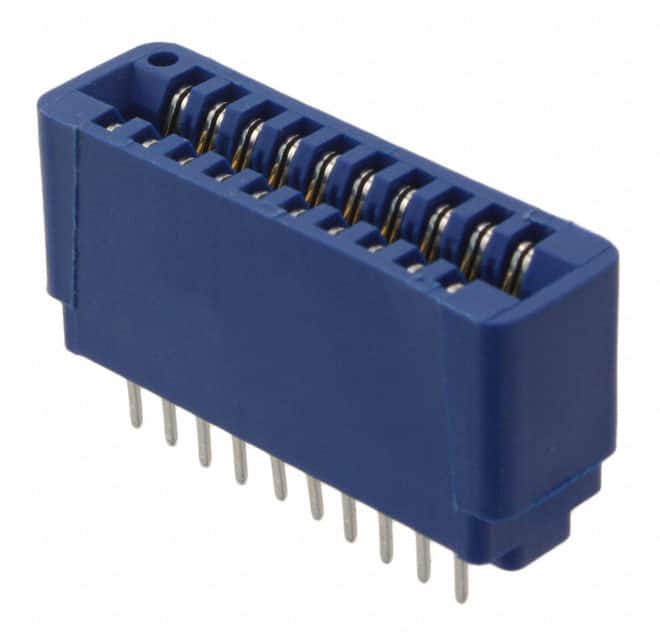

 EBC10DCWN Sullins Connector Solutions | 1 $4.1200 | Female | 10 | 2 | Dual | Solder | Hairpin Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | - | Through Hole | 20 | 0.100" (2.54mm) | 4,238 | |

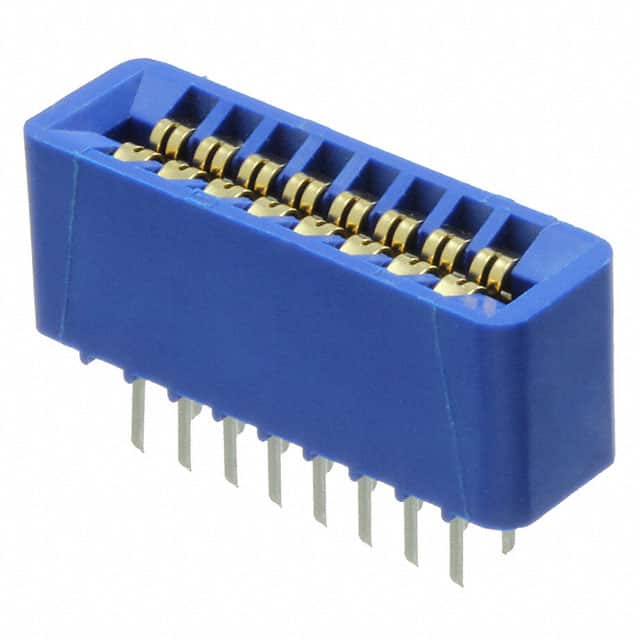

 EBC08DRTN Sullins Connector Solutions | 1 $4.1900 | Female | 8 | 2 | Dual | Solder | Full Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | - | Through Hole | 16 | 0.100" (2.54mm) | 9,451 | |

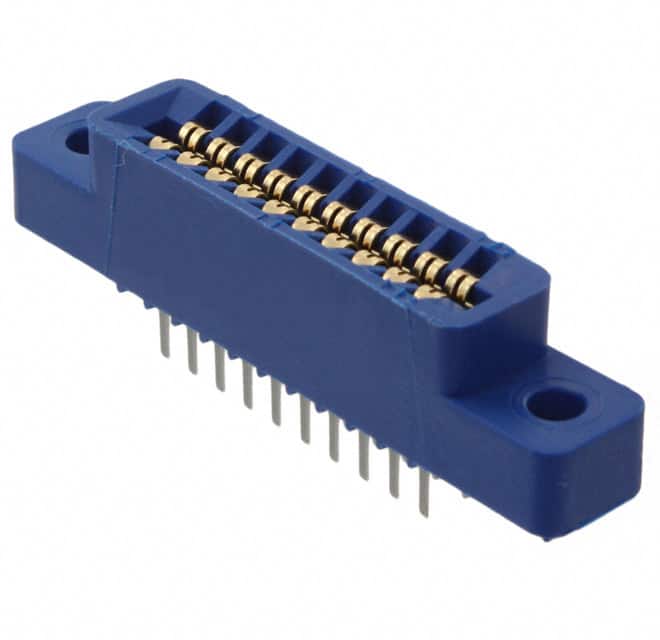

 EBC10DRTH Sullins Connector Solutions | 1 $4.7800 | Female | 10 | 2 | Dual | Solder | Full Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Through Hole | 20 | 0.100" (2.54mm) | 8,703 | |

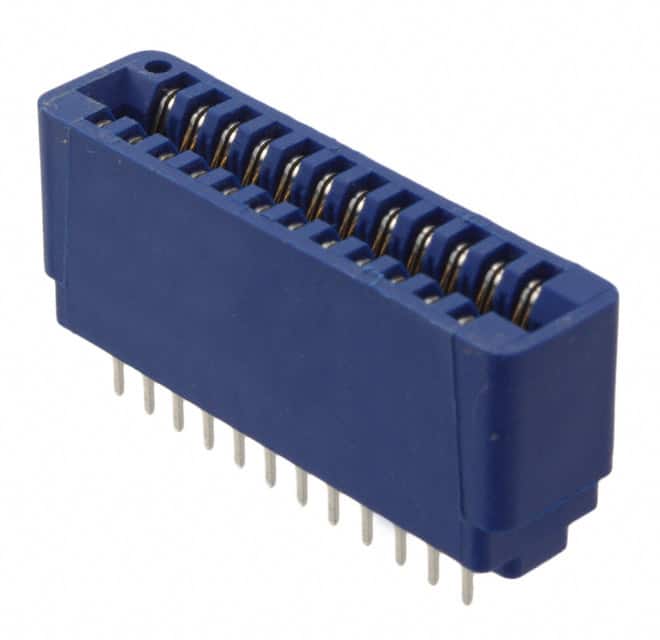

 EBC12DCWN Sullins Connector Solutions | 1 $4.3200 | Female | 12 | 2 | Dual | Solder | Hairpin Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | - | Through Hole | 24 | 0.100" (2.54mm) | 2,633 | |
 EBM06DREH Sullins Connector Solutions | 1 $5.4100 | Female | 6 | 2 | Dual | Solder Eyelet(s) | Full Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Panel Mount | 12 | 0.156" (3.96mm) | 2,965 | |

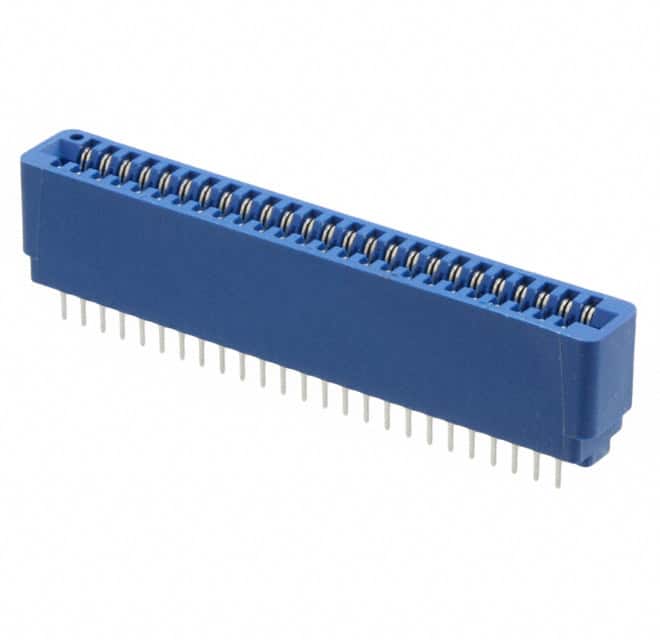

 EBC25DCWN Sullins Connector Solutions | 1 $6.5300 | Female | 25 | 2 | Dual | Solder | Hairpin Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | - | Through Hole | 50 | 0.100" (2.54mm) | 6,573 | |
 EBM22DRXH Sullins Connector Solutions | 1 $7.3600 | Female | 22 | 2 | Dual | Solder | Full Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Through Hole | 44 | 0.156" (3.96mm) | 5,551 | |

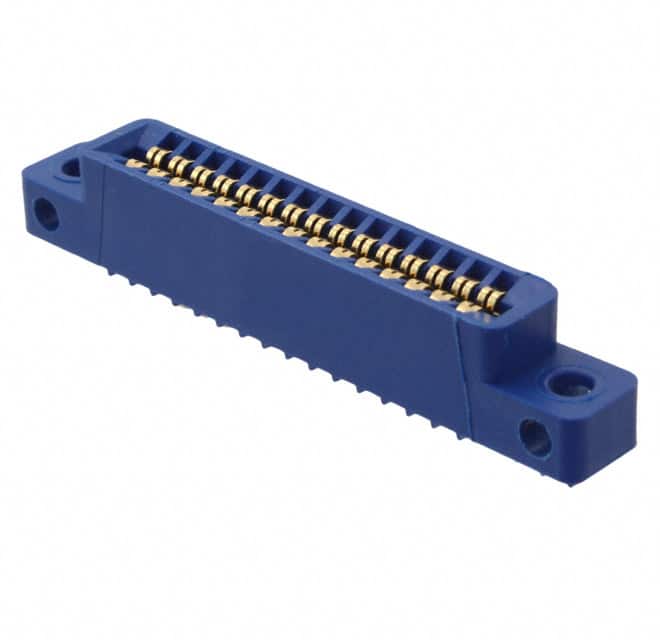

 EBC15DRAS Sullins Connector Solutions | 1 $7.9900 | Female | 15 | 2 | Dual | Solder | Full Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Through Hole, Right Angle | 30 | 0.100" (2.54mm) | 1,984 | |

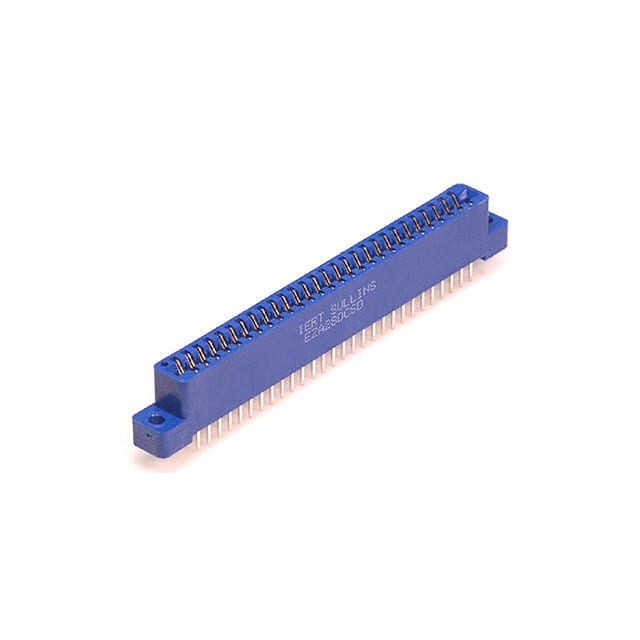

 EBA28DCSD Sullins Connector Solutions | 1 $9.6600 | Female | 28 | 2 | Dual | Solder | Hairpin Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Through Hole | 56 | 0.125" (3.18mm) | 4,013 | |
 EBM36DRXH Sullins Connector Solutions | 1 $10.0900 | Female | 36 | 2 | Dual | Solder | Full Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Through Hole | 72 | 0.156" (3.96mm) | 2,614 | |

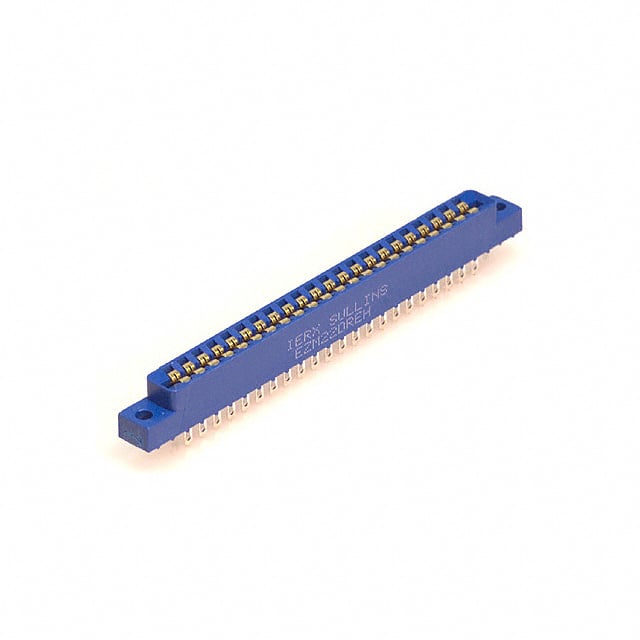

 EBM22DREH Sullins Connector Solutions | 1 $10.6000 | Female | 22 | 2 | Dual | Solder Eyelet(s) | Full Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | Non Specified - Dual Edge | Blue | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Panel Mount | 44 | 0.156" (3.96mm) | 9,314 | |
 EBC49DCWN-S420 Sullins Connector Solutions | 1 $10.5500 | Female | 31; 18 | 2 | Dual | Solder | Hairpin Bellows | -65°C ~ 125°C | 0.062" (1.57mm) | ISA | Black | Gold | 10.0µin (0.25µm) | Phosphor Bronze | - | - | Through Hole | 98 | 0.100" (2.54mm) | 5,757 |
