Hard Metric, Standard
Hard Metric, Standard Backplane Connectors conform to a set of specifications for interconnection devices. These devices are used in board or panel systems where other circuit boards can be plugged into. These connectors usually have a 2.0 mm pitch from row to row and column to column. The number of positions range from 3 (Power) to 308 (220 + 88 Ground) in Pitch dimensions 0.050” (1.27 mm), 0.071” (1.80 mm), 0.079” (2.00 mm), 0.150” (3.81 mm), or 0.295” (7.50 mm).
Sourcing HARTING Hard Metric, Standard: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 9
| Product | Pricing | Datasheet | Connector Usage | Connector Style | Connector Type | Contact Finish | Contact Finish Thickness | Mounting Type | Number of Positions | Number of Positions Loaded | Number of Rows | Pitch | Termination | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 17211102102 HARTING | 1 $11.1500 | CompactPCI J1/J4 | A 22 | Receptacle, Female Sockets | Gold | - | Through Hole, Right Angle | 110 | All | 5 | 0.079" (2.00mm) | Press-Fit | 6,841 | |

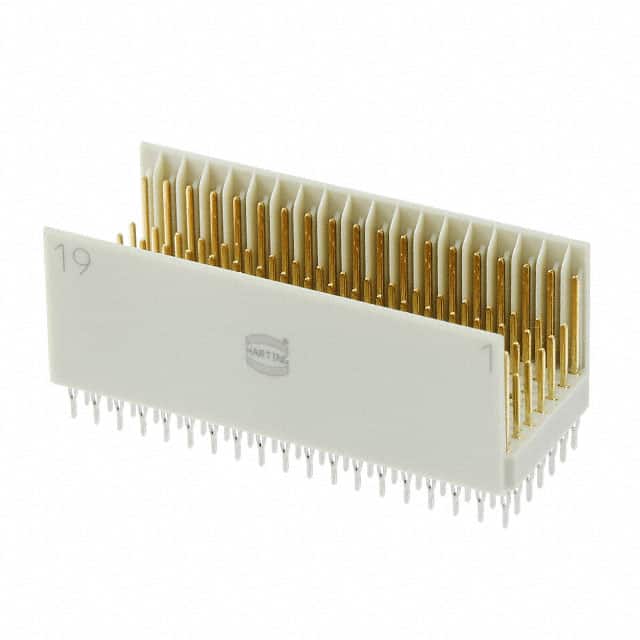

 17051332201 HARTING | 1 $8.2200 | - | B 19 | Header, Male Pins | Gold or Gold-Palladium | - | Through Hole | 133 (95 + 38 Ground) | All | 5 + 2 | 0.079" (2.00mm) | Press-Fit | 4,045 | |

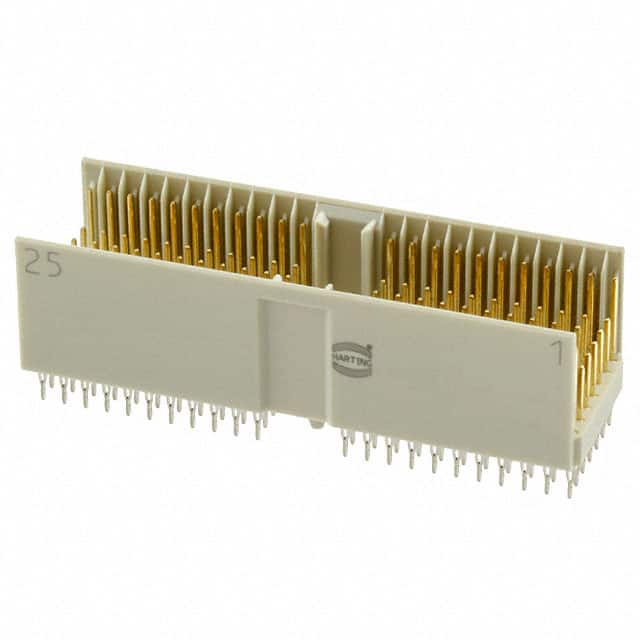

 17011542201 HARTING | 1 $8.2500 | Backplane | A 22 | Header, Male Pins | Gold or Gold-Palladium | - | Through Hole | 154 (110 + 44 Ground) | All | 5 + 2 | 0.079" (2.00mm) | Press-Fit | 8,005 | |

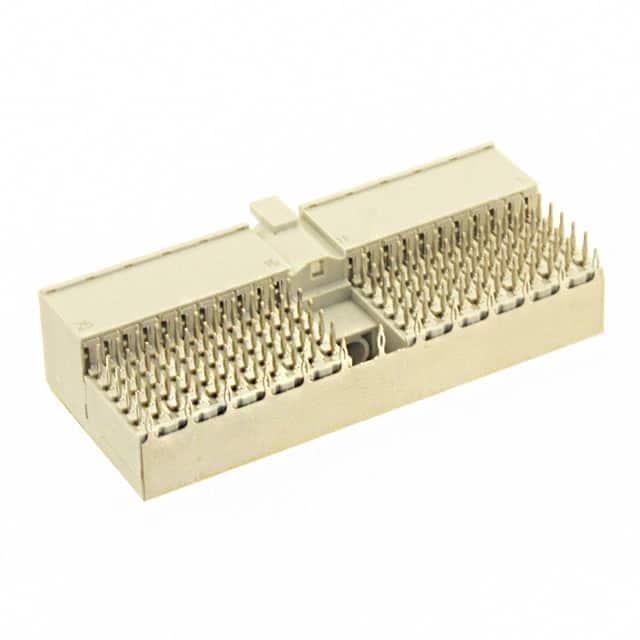

 17211101102 HARTING | 1 $11.7500 | CompactPCI J1/J4 | A 22 | Receptacle, Female Sockets | Gold | - | Through Hole, Right Angle | 110 | All | 5 | 0.079" (2.00mm) | Press-Fit | 3,423 | |
 17051331201 HARTING | 1 $10.1700 | - | B 19 | Header, Male Pins | Gold or Gold-Palladium | - | Through Hole | 133 (95 + 38 Ground) | All | 5 + 2 | 0.079" (2.00mm) | Press-Fit | 2,177 | |
 17211102101 HARTING | 1 $10.8300 | Daughtercard | A 22 | Receptacle, Female Sockets | Gold | - | Through Hole, Right Angle | 110 | All | 5 | 0.079" (2.00mm) | Press-Fit | 3,288 | |
 17330952101 HARTING | 1 $11.1000 | - | AB 19 | Receptacle, Female Sockets | Gold | - | Board Edge, Through Hole, Right Angle | 95 | All | 5 | 0.079" (2.00mm) | Press-Fit | 2,974 | |
 17131271201 HARTING | 1 $11.8700 | Backplane-to-Daughtercard | AB 19 | Header, Male Pins | Gold or Gold-Palladium | - | Through Hole | 127 (95 + 32 Ground) | All | 5 + 2 | 0.079" (2.00mm) | Press-Fit | 2,216 | |
 17341102102 HARTING | 1 $13.3500 | CompactPCI | AB 22 | Receptacle, Female Sockets | Gold or Gold-Palladium | - | Board Edge, Through Hole, Right Angle | 110 | All | 5 | 0.079" (2.00mm) | Press-Fit | 7,730 |
