• • • Fuses

Fuses

A fuse is a device designed to stop current flow when it exceeds a certain limit (overcurrent protection). The devices works by creating an opening in a material situated between two end terminals. The material will melt (blow) from an increase in heat generated by the device as the current flow changes. The amount of time it takes the device to blow is often defined as fast or slow-blow.

Sourcing Bel Fuse, Inc. Fuses: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.

BOM matching · Lead time · Authenticity · Brands

Product	Pricing	Datasheet	Melting I²t	Color	Mounting Type	Operating Temperature	Size / Dimension	Breaking Capacity @ Rated Voltage	Fuse Type	Approval Agency	Current Rating (Amps)	Package / Case	Response Time	Voltage Rating - AC	Voltage Rating - DC	Stock & Quantity
C1F 8 Bel Fuse, Inc.	1 $0.2800	Datasheet	3.584	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W (3.20mm x 1.58mm)	35A AC, 50A DC	Board Mount (Cartridge Style Excluded)	AEC-Q200, cURus	8 A	1206 (3216 Metric)	Fast Blow	125 V	63 V	4,425 Buy Now Get Quote
0686F8000-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	0.5	-	Surface Mount	-55°C ~ 125°C	0.063" L x 0.032" W x 0.020" H (1.60mm x 0.81mm x 0.52mm)	35A AC, 50A DC	Board Mount (Cartridge Style Excluded)	AEC-Q200, cURus	8 A	0603 (1608 Metric)	Fast Blow	32 V	63 V	9,713 Buy Now Get Quote
0685T3000-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	1.64	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)	50A	Board Mount (Cartridge Style Excluded)	AEC-Q200, CE, cURus	3 A	1206 (3216 Metric)	Slow Blow	63 V	63 V	5,559 Buy Now Get Quote
0685T2000-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	0.63	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)	50A	Board Mount (Cartridge Style Excluded)	AEC-Q200, CE, cURus	2 A	1206 (3216 Metric)	Slow Blow	63 V	63 V	6,658 Buy Now Get Quote
0685T2500-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	1.07	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)	50A	Board Mount (Cartridge Style Excluded)	AEC-Q200, CE, cURus	2.5 A	1206 (3216 Metric)	Slow Blow	63 V	63 V	6,612 Buy Now Get Quote
0685T1000-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	0.12	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)	50A	Board Mount (Cartridge Style Excluded)	AEC-Q200, CE, cURus	1 A	1206 (3216 Metric)	Slow Blow	63 V	63 V	3,088 Buy Now Get Quote
0685T1500-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	0.23	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)	50A	Board Mount (Cartridge Style Excluded)	AEC-Q200, CE, cURus	1.5 A	1206 (3216 Metric)	Slow Blow	63 V	63 V	3,602 Buy Now Get Quote
0685T5000-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	5.3	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)	50A	Board Mount (Cartridge Style Excluded)	AEC-Q200, CE, cURus	5 A	1206 (3216 Metric)	Slow Blow	63 V	63 V	7,748 Buy Now Get Quote
0685T4000-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	2.56	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)	50A	Board Mount (Cartridge Style Excluded)	AEC-Q200, CE, cURus	4 A	1206 (3216 Metric)	Slow Blow	63 V	63 V	8,935 Buy Now Get Quote
0685T3500-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	2.28	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)	50A	Board Mount (Cartridge Style Excluded)	AEC-Q200, CE, cURus	3.5 A	1206 (3216 Metric)	Slow Blow	63 V	63 V	2,431 Buy Now Get Quote
0685T0750-01 Bel Fuse, Inc.	1 $0.3000	Datasheet	0.06	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.025" H (3.20mm x 1.58mm x 0.63mm)	50A	Board Mount (Cartridge Style Excluded)	AEC-Q200, CE, cURus	750 mA	1206 (3216 Metric)	Slow Blow	63 V	63 V	2,349 Buy Now Get Quote

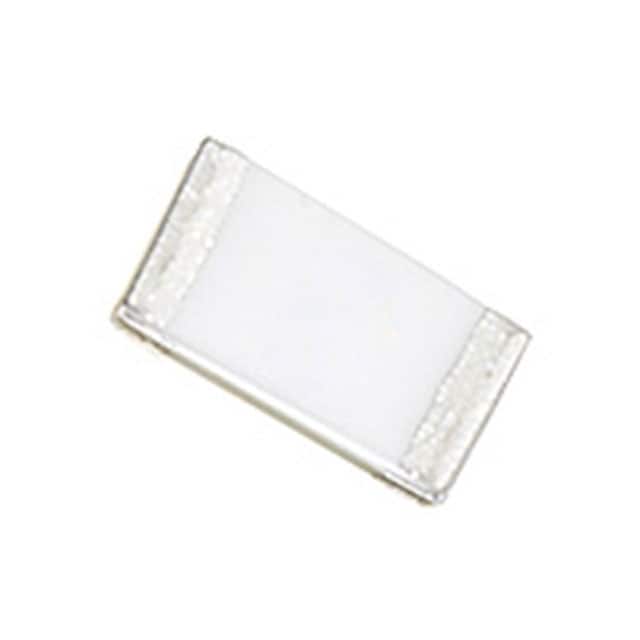

0685H9100-01 Bel Fuse, Inc.	1 $0.3100	Datasheet	5.9	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm)	150A	Board Mount (Cartridge Style Excluded)	AEC-Q200, cURus	10 A	1206 (3216 Metric)	Fast Blow	125 V	32 V	3,454 Buy Now Get Quote
0685H9300-01 Bel Fuse, Inc.	1 $0.3100	Datasheet	80.5	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm)	150A AC, 300A DC	Board Mount (Cartridge Style Excluded)	AEC-Q200, cURus	30 A	1206 (3216 Metric)	Fast Blow	125 V	32 V	9,222 Buy Now Get Quote
0685H9150-01 Bel Fuse, Inc.	1 $0.3100	Datasheet	13.5	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm)	150A	Board Mount (Cartridge Style Excluded)	AEC-Q200, cURus	15 A	1206 (3216 Metric)	Fast Blow	125 V	32 V	7,749 Buy Now Get Quote

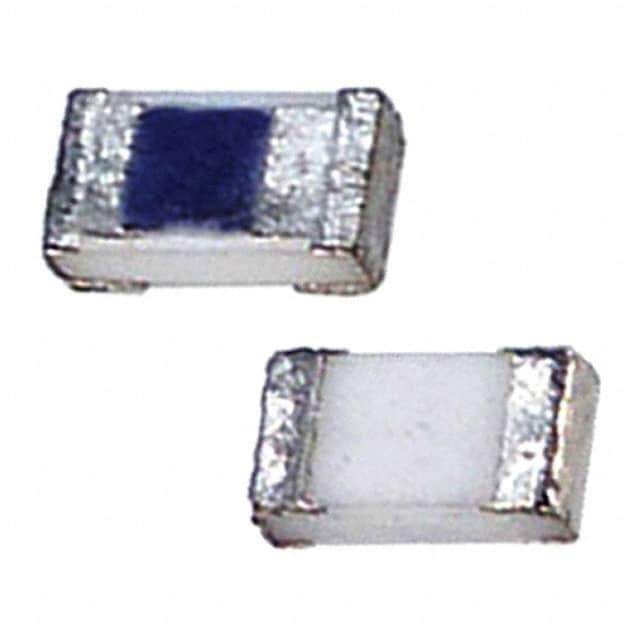

C2Q 250 Bel Fuse, Inc.	1 $0.3100	Datasheet	1E-05	-	Surface Mount	-55°C ~ 125°C	0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm)	35A AC, 50A DC	Board Mount (Cartridge Style Excluded)	CE, cURus	250 mA	0603 (1608 Metric)	Fast Blow	32 V	63 V	1,080 Buy Now Get Quote
C2Q 500 Bel Fuse, Inc.	1 $0.3100	Datasheet	0.00015	-	Surface Mount	-55°C ~ 125°C	0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm)	35A AC, 50A DC	Board Mount (Cartridge Style Excluded)	CE, cURus	500 mA	0603 (1608 Metric)	Fast Blow	32 V	63 V	8,154 Buy Now Get Quote
C2Q 5 Bel Fuse, Inc.	1 $0.3100	Datasheet	1.05	-	Surface Mount	-55°C ~ 125°C	0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm)	50A	Board Mount (Cartridge Style Excluded)	CE, cURus	5 A	0603 (1608 Metric)	Fast Blow	32 V	32 V	9,530 Buy Now Get Quote

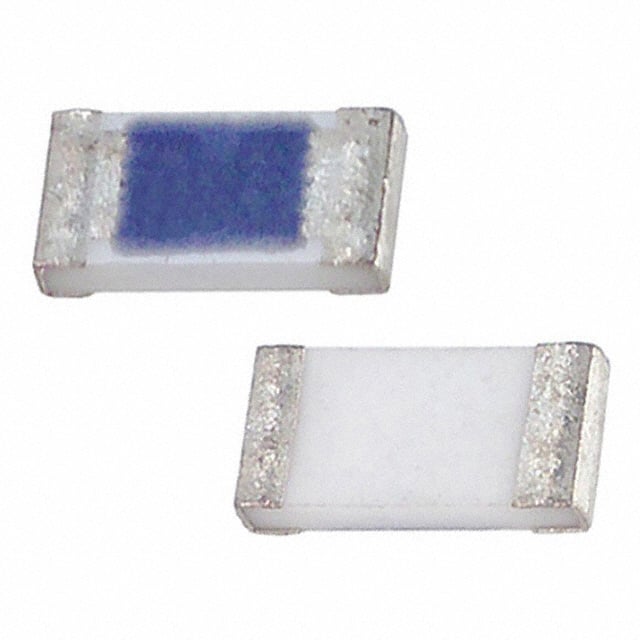

C1Q 2 Bel Fuse, Inc.	1 $0.3200	Datasheet	0.005	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm)	100A AC, 50A DC	Board Mount (Cartridge Style Excluded)	CE, CSA, cULus	2 A	1206 (3216 Metric)	Fast Blow	125 V	63 V	4,189 Buy Now Get Quote
C1Q 2.5 Bel Fuse, Inc.	1 $0.3200	Datasheet	0.008	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm)	100A AC, 50A DC	Board Mount (Cartridge Style Excluded)	CE, CSA, cULus	2.5 A	1206 (3216 Metric)	Fast Blow	125 V	63 V	9,355 Buy Now Get Quote
C1Q 3 Bel Fuse, Inc.	1 $0.3200	Datasheet	0.02	-	Surface Mount	-55°C ~ 125°C	0.126" L x 0.062" W x 0.023" H (3.20mm x 1.58mm x 0.58mm)	100A AC, 50A DC	Board Mount (Cartridge Style Excluded)	CE, CSA, cULus	3 A	1206 (3216 Metric)	Fast Blow	125 V	63 V	6,210 Buy Now Get Quote
