Pulse Transformers
Pulse Transformers are designed to transfer pulses (signals/voltage with a rapid rise time, a duration of constant signal/voltage, and then a rapid fall time) from one side of a circuit to another. The transformer types are ADSL, data/voice coupling, economical open type, gate drive, general purpose, HDBase-T, HDSL, interface, isolation and data interface, LAN, MIL-STD-1553, PoE, SCR and Triac Trigger, SHDSL, T1/E1, T3/E3, and VDSL.
Sourcing Newava Technology Pulse Transformers: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 2
| Product | Pricing | Datasheet | Mounting Type | Operating Temperature | Size / Dimension | ET (Volt-Time) | Transformer Type | Turns Ratio - Primary:Secondary | Height - Seated (Max) | Inductance | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|

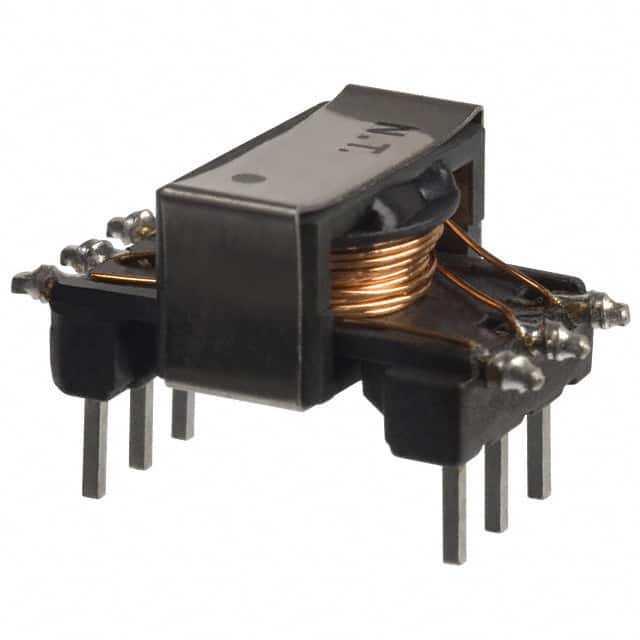

 S22133 Newava Technology | 1 $5.4300 | Through Hole | - | 0.385" L x 0.650" W (9.78mm x 16.51mm) | - | - | 1:1 | 0.250" (6.35mm) | 225µH | 3,950 | |

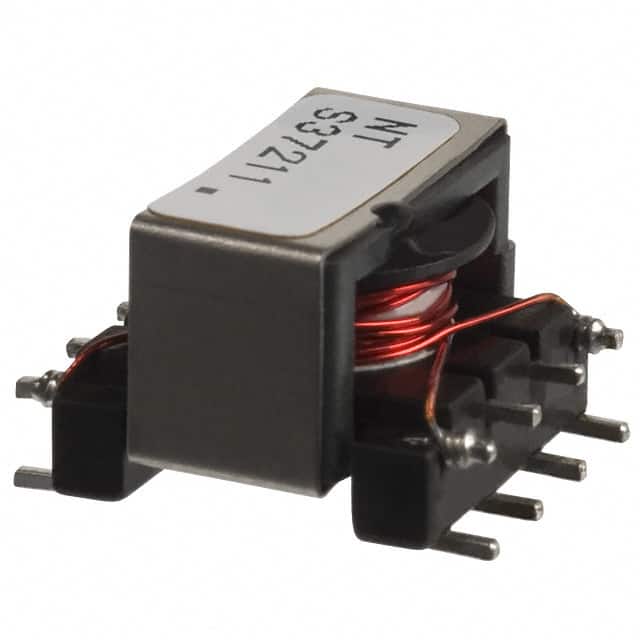

 S37211 Newava Technology | 1 $5.8100 | Surface Mount | - | 0.400" L x 0.440" W (10.16mm x 11.18mm) | - | - | 1:1 | 0.305" (7.75mm) | 225µH | 1,156 |
