Power Transformers
Products in the power transformers family include those designed for transformation of AC utility power at nominal frequencies of 400 Hz or less that contain galvanically isolated primary and secondary windings. They are not packaged or equipped with the common connectors used for AC utility powered products, making them unserviceable as an end-use product in an isolation transformer capacity.
Sourcing Tamura Power Transformers: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 7
| Product | Pricing | Datasheet | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Weight | Mounting Type | Size / Dimension | Type | Voltage - Primary | Height - Seated (Max) | Termination Style | Voltage - Isolation | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

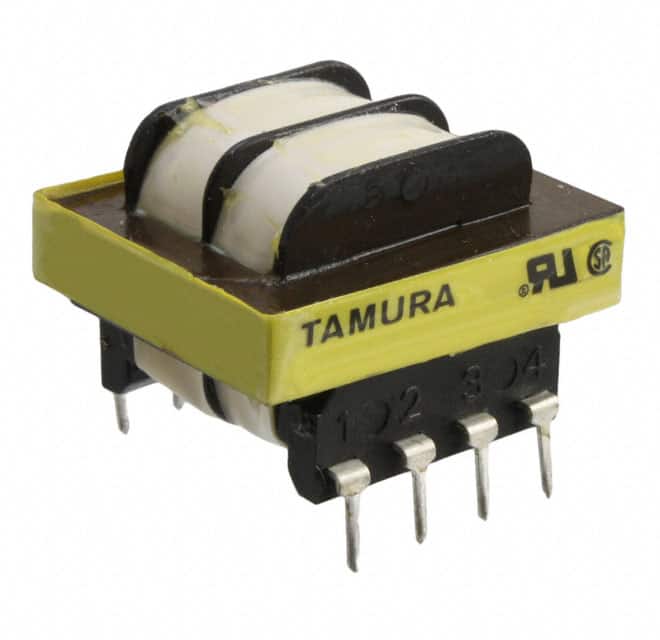

 3FD-212 Tamura | 1 $5.6200 | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Dual | Dual | No | 1.1VA | - | Through Hole | 35.56mm L x 31.00mm W | Laminated Core | 115V, 230V | 38.00mm | PC Pin | 2500Vrms | 5,266 | |

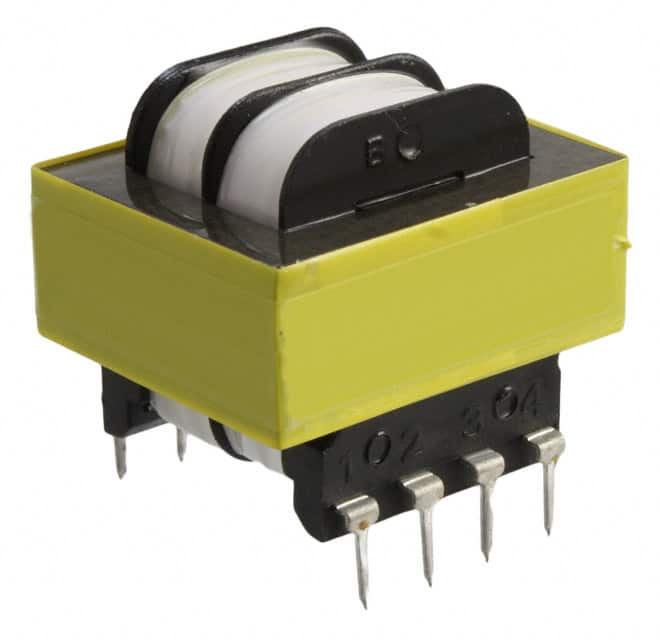

 3FD-324 Tamura | 1 $5.6100 | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.4VA | - | Through Hole | 35.56mm L x 31.00mm W | Laminated Core | 115V, 230V | 32.10mm | PC Pin | 2500Vrms | 3,608 | |
3FD-312 Tamura | 1 $5.6100 | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.4VA | - | Through Hole | 35.56mm L x 31.00mm W | Laminated Core | 115V, 230V | 32.10mm | PC Pin | 2500Vrms | 8,591 | |

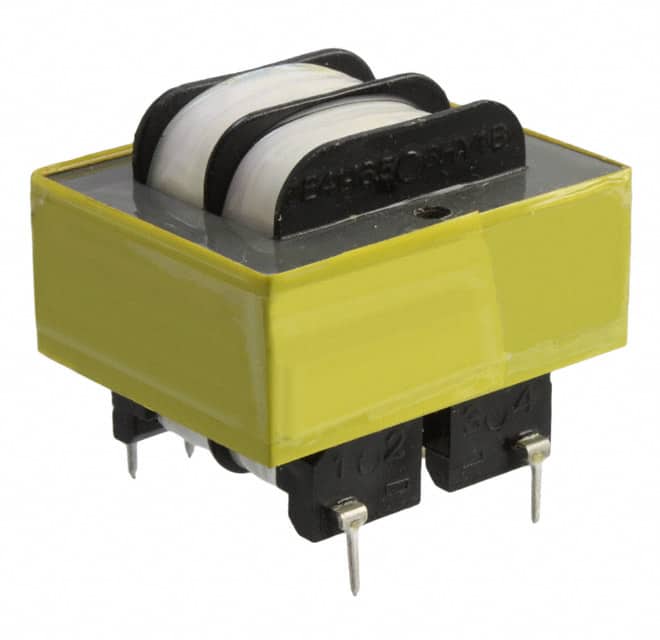

 3FS-424 Tamura | 1 $9.1300 | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Single | Dual | No | 6VA | - | Through Hole | 41.50mm L x 34.83mm W | Laminated Core | 115V | 34.55mm | PC Pin | 2500Vrms | 9,971 | |

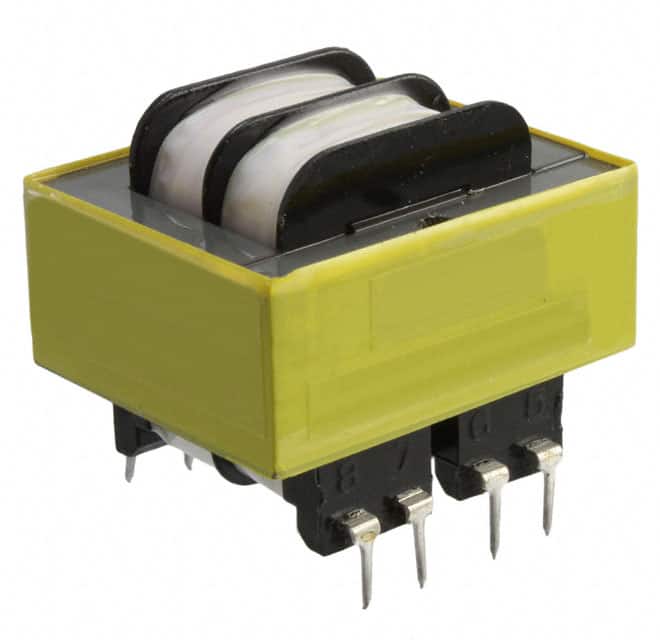

 3FD-412 Tamura | 1 $9.5000 | Parallel 6.3V, Series 12.6V | Parallel 1A, Series 500mA | Dual | Dual | No | 6VA | - | Through Hole | 41.50mm L x 34.83mm W | Laminated Core | 115V, 230V | 38.00mm | PC Pin | 2500Vrms | 3,304 | |

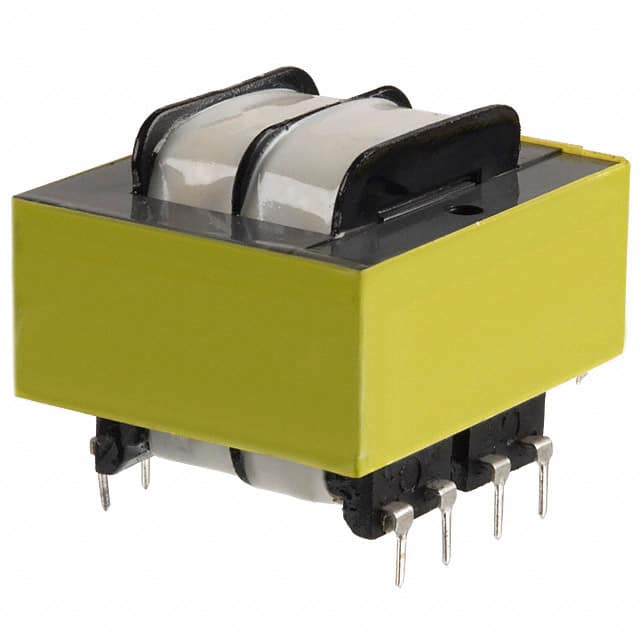

 3FD-520 Tamura | 1 $12.6700 | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 12VA | - | Through Hole | 48.50mm L x 41.52mm W | Laminated Core | 115V, 230V | 38.00mm | PC Pin | 2500Vrms | 3,702 | |
3FD-524 Tamura | 1 $12.6700 | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | - | Through Hole | 48.50mm L x 41.52mm W | Laminated Core | 115V, 230V | 38.00mm | PC Pin | 2500Vrms | 8,173 |
