Multiple Conductor Cables
Multiple Conductor Cables are cables that are composed of separate individual wires that have been bundled together within a larger outer insulation jacket. With a variety of wire gauges, number of conductors and materials allowing a wide range of applications ranging from power to telecommunication data transfer. Lengths available range from 1 foot to over 5000 feet.
Sourcing CnC Tech Multiple Conductor Cables: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 5
| Product | Pricing | Datasheet | Features | Operating Temperature | Conductor Material | Conductor Strand | Jacket (Insulation) Diameter | Jacket (Insulation) Thickness | Jacket Color | Shield Type | Cable Type | Length | Number of Conductors | Ratings | Usage | Voltage | Wire Gauge | Jacket (Insulation) Material | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

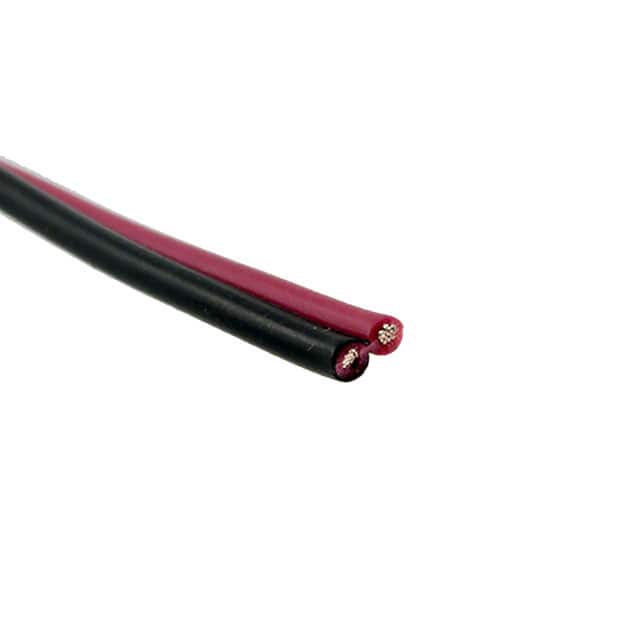

 21458-24-2-0500-0104-1-TS CnC Tech | 1 $121.1600 | - | -10°C ~ 80°C | Copper, Tinned | 11/34 | 0.107" (2.72mm) | 0.0150" (0.381mm) | Black, Red | - | Multi-Conductor | 500.0' (152.4m) | 2 | UL Style 21458 | - | 300 V | 24 AWG | Polyphenylene Ether (PPE) | 7,742 | |
21458-22-2-0500-0104-1-TS CnC Tech | 1 $158.0400 | - | -10°C ~ 80°C | Copper, Tinned | 17/34 | 0.118" (3.00mm) | 0.0150" (0.381mm) | Black, Red | - | Multi-Conductor | 500.0' (152.4m) | 2 | UL Style 21458 | - | 300 V | 22 AWG | Polyphenylene Ether (PPE) | 4,185 | |

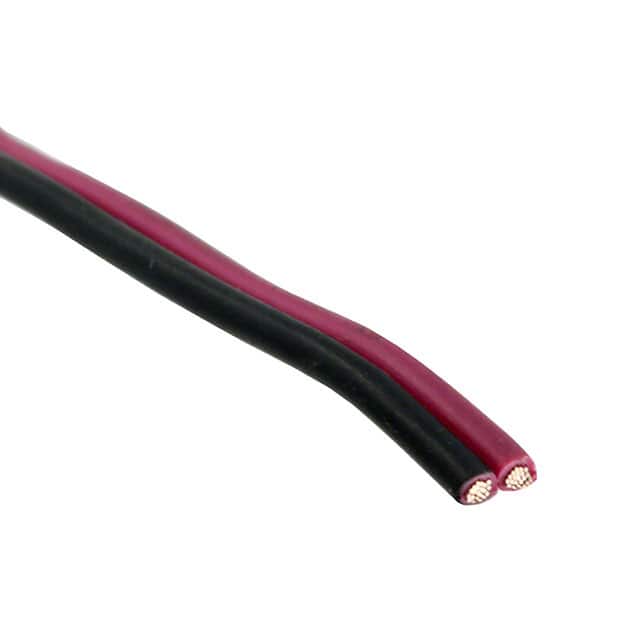

 21458-20-2-0500-0104-1-TS CnC Tech | 1 $208.8300 | - | -10°C ~ 80°C | Copper, Tinned | 21/33 | 0.133" (3.38mm) | 0.0150" (0.381mm) | Black, Red | - | Multi-Conductor | 500.0' (152.4m) | 2 | UL Style 21458 | - | 300 V | 20 AWG | Polyphenylene Ether (PPE) | 5,702 | |

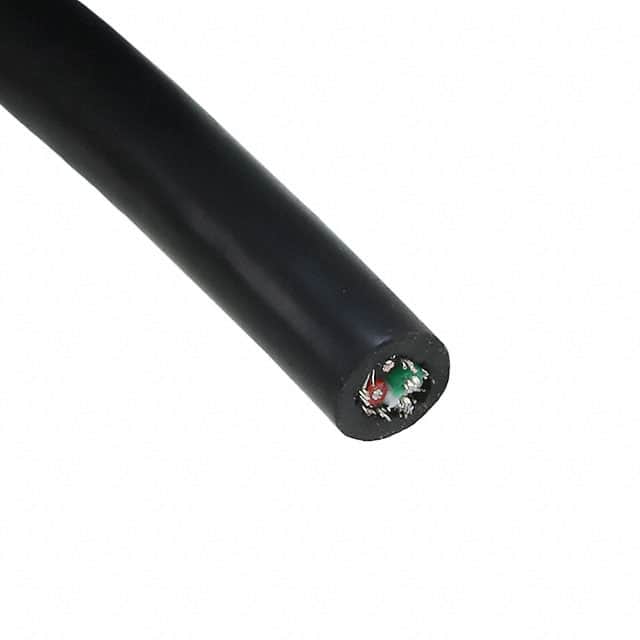

 2725-2828-BL-01000-A CnC Tech | 1 $230.4200 | Drain Wire | 80°C | Copper, Tinned | 7/36 | 0.150" (3.81mm) | 0.0264" (0.671mm) | Black | Foil, Braid | Multi-Conductor | 1000.0' (304.8m) | 4 | UL Style 2725 | USB 2.0 | 30 V | 28 AWG | Poly-Vinyl Chloride (PVC) | 5,953 | |
21458-18-2-0500-0104-1-TS CnC Tech | 1 $278.0300 | - | -10°C ~ 80°C | Copper, Tinned | 34/0.0071" | 0.153" (3.89mm) | 0.0150" (0.381mm) | Black, Red | - | Multi-Conductor | 500.0' (152.4m) | 2 | UL Style 21458 | - | 300 V | 18 AWG | Polyphenylene Ether (PPE) | 2,658 |
