Switches
Switches are devices used to interrupt the flow of electrical current in one or more circuits, under the direct physical control of some outside mechanism such as a user's finger or thumb, a magnet, or a moving machine component. Organization of sub-groups within the category occurs along lines of the physical style or form of switches' actuators, or a particular application or purpose for which they are designed.
Sourcing Magnasphere Corp. Switches: in-stock lines for quick ship, BOM matching for multi-line builds, and original-channel screening — not keyword stuffing.
Product List
Total Components: 6
| Product | Pricing | Datasheet | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Length - Overall | Size - Body | Capacitance | Current - Carry | Mounting Type | Operating Temperature | Type | Height Above Board | Circuit | Termination Style | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MG-A2-1.5-N Magnasphere Corp. | 1 $7.0900 | 20.78mm | 33.35mm | 250mA (DC) | - | 30 V | - | - | - | 0.615" (15.62mm) | 0.244" Dia x 0.175" L (6.20mm x 4.45mm) | 1 pF | - | Through Hole | -40°C ~ 150°C | Magnasphere® Magnetic | 0.175" (4.45mm) | SPST-NO | PC Pin | 9,816 | |

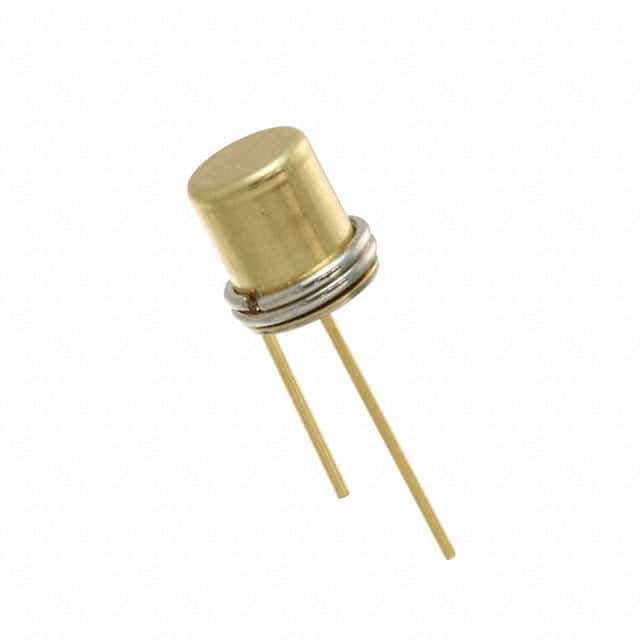

 MG-B2-10-L Magnasphere Corp. | 1 $8.1500 | 21.41mm | 22.91mm | 250mA (DC) | - | 30 V | - | - | - | 0.723" (18.36mm) | 0.198" Dia x 0.244" L (5.03mm x 6.20mm) | 1 pF | - | Through Hole | -40°C ~ 85°C | Magnasphere® Magnetic | 0.244" (6.20mm) | SPST-NC | PC Pin | 8,763 | |
MG-B2-6.5-L Magnasphere Corp. | 1 $8.1500 | 25.40mm | 27.74mm | 250mA (DC) | - | 30 V | - | - | - | 0.723" (18.36mm) | 0.198" Dia x 0.244" L (5.03mm x 6.20mm) | 1 pF | - | Through Hole | -40°C ~ 85°C | Magnasphere® Magnetic | 0.244" (6.20mm) | SPST-NC | PC Pin | 4,370 | |
MG-A2-5.0-N Magnasphere Corp. | 1 $7.5100 | 14.45mm | 16.33mm | 250mA (DC) | - | 30 V | - | - | - | 0.615" (15.62mm) | 0.244" Dia x 0.175" L (6.20mm x 4.45mm) | 1 pF | - | Through Hole | -40°C ~ 150°C | Magnasphere® Magnetic | 0.175" (4.45mm) | SPST-NO | PC Pin | 7,135 | |
 MG-A2-5.5-TW Magnasphere Corp. | 1 $7.8900 | 14.66mm | 18.11mm | 250mA (DC) | - | 30 V | - | - | - | 0.613" (15.57mm) | 0.198" Dia x 0.183" L (5.03mm x 4.65mm) | 1 pF | - | Through Hole | -40°C ~ 150°C | Magnasphere® Magnetic | 0.183" (4.65mm) | SPST-NO | PC Pin | 7,108 | |

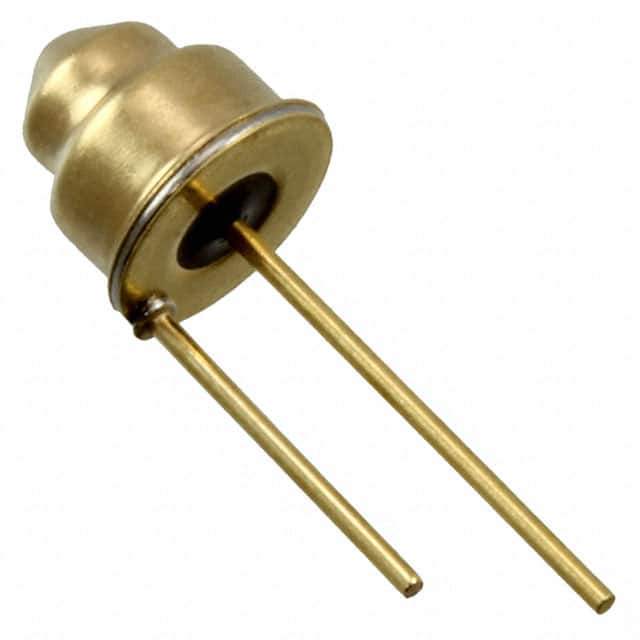

 MG-B2-20-S Magnasphere Corp. | 1 $7.9500 | 15.90mm | 23.27mm | 250mA (DC) | - | 30 V | - | - | - | 0.658" (16.71mm) | 0.200" Dia x 0.205" L (5.08mm x 5.21mm) | 1 pF | - | Through Hole | -40°C ~ 150°C | Magnasphere® Magnetic | 0.205" (5.20mm) | SPST-NC | PC Pin | 4,137 |
